Help with Revell 90 Mustang LX Drag Racer kit

[shoopdog]

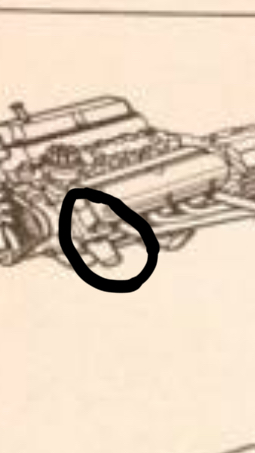

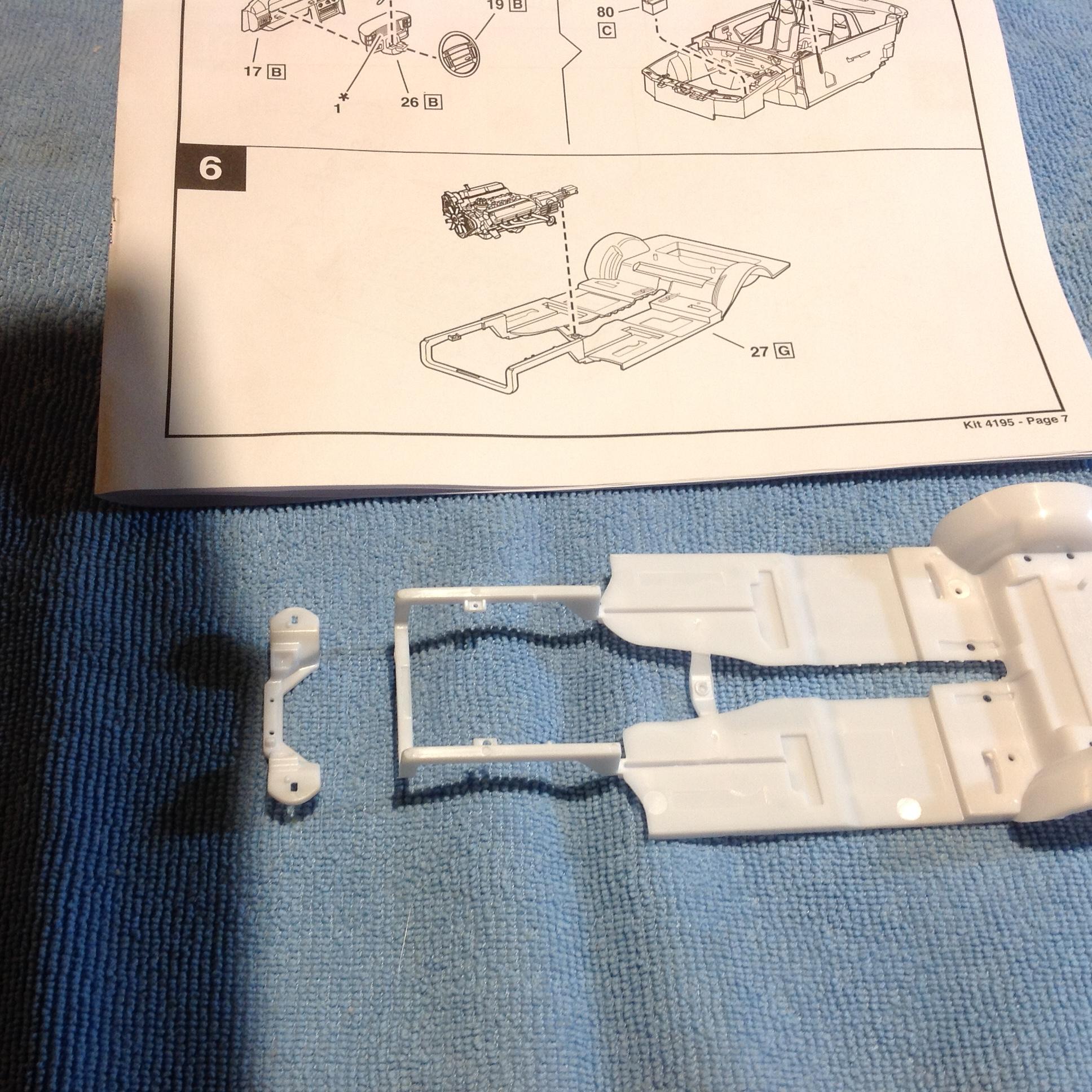

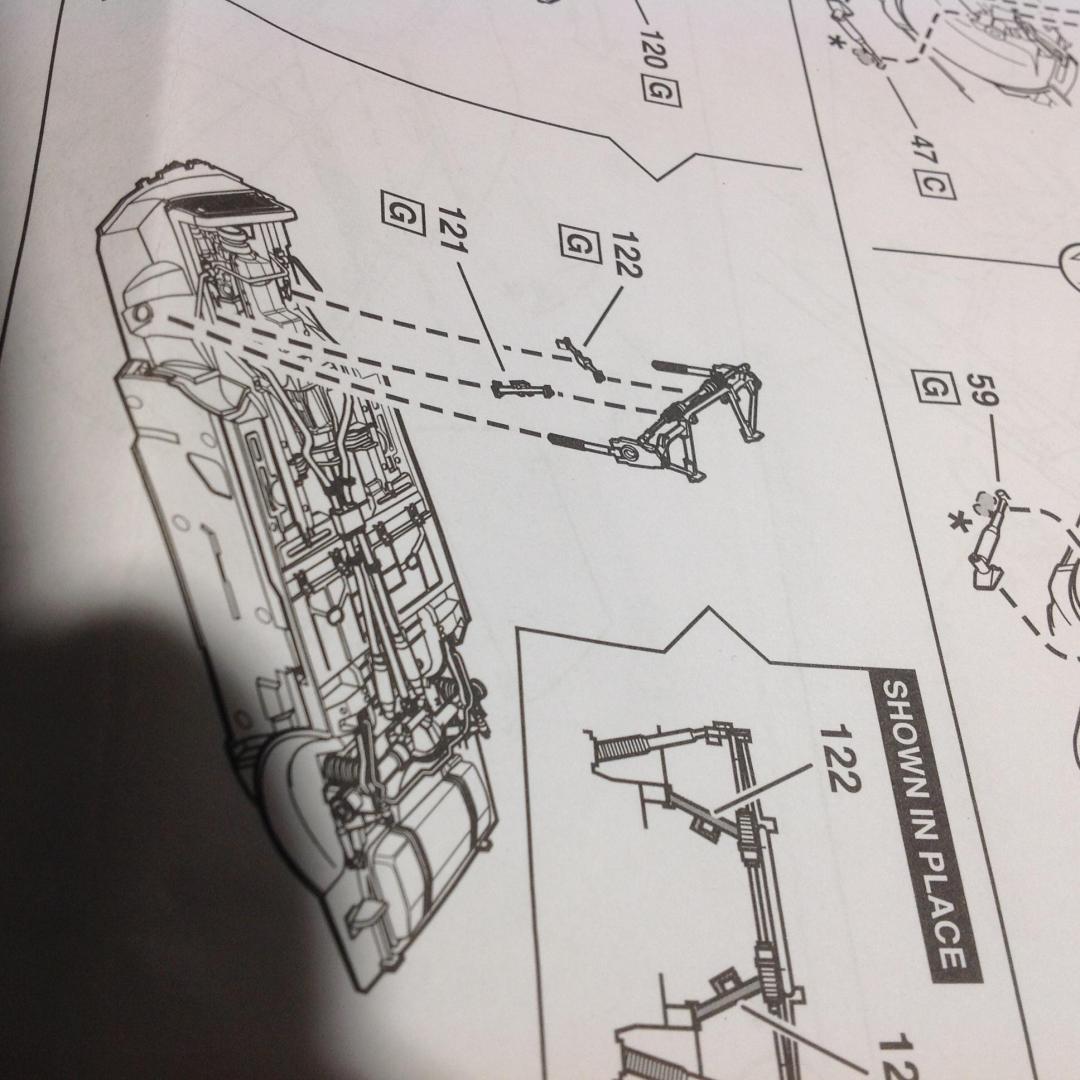

In the process of building this kit but need advice on engine mounting. If you've built this one I'd like to know what you've done. As you can see in my first pic instructions just have you glue trans in trans mount. The crossmember I have pictured with the frame was in the kit but not shown anywhere and not even listed in the numerical parts list. I'm thinking it is needed as the engine sits perfectly in it. In pic two it's not shown either, all that's there is the sway bar. Any help would be appreciated. Thanks!

[Jantrix]

This is the review of that kit when it came out. Maybe you can find the info you need there.



[shoopdog]

Thanks Rob, I'll check it out.

[shoopdog]

OMG! I'm up to page 6 and still reading about roof issues!

Well nothing useful there.

Edited March 20, 2019 by shoopdog

[Jantrix]

If I'm not mistaken it comes with two front suspensions, stock and tubular.

[shoopdog]

7 minutes ago, Jantrix said:

If I'm not mistaken it comes with two front suspensions, stock and tubular.

It does have the two suspensions but I'm not sure how that would affect engine mounting.

[Rodent]

No clue. That is definitely the front crossmember for the stock suspension. I had a 1:1, and the motor mounts, lower control arms, coil springs, and rack & pinion all mount to it. Don't see what you are supposed to do when using the coilovers and tubular lower arms.

[espo]

I have seen other builders create an engine plate in some of their builds. What they had was a thin plate that would attach to the front of the engine as if bolted to the water pump area and slimed down on each end to a new mount on the frame or some other support structure on either side of the engine compartment. This way it would have no connection to the stock front cross member or any other front suspension you are using.

[Brutalform]

Keith, you don’t use that piece. Unless you don’t want the tubular k frame. I remember my engine seemed like it sat in there pretty sloppy, but as the build came together it all worked out. It was a bit confusing and I also remember the struts being a pain too.

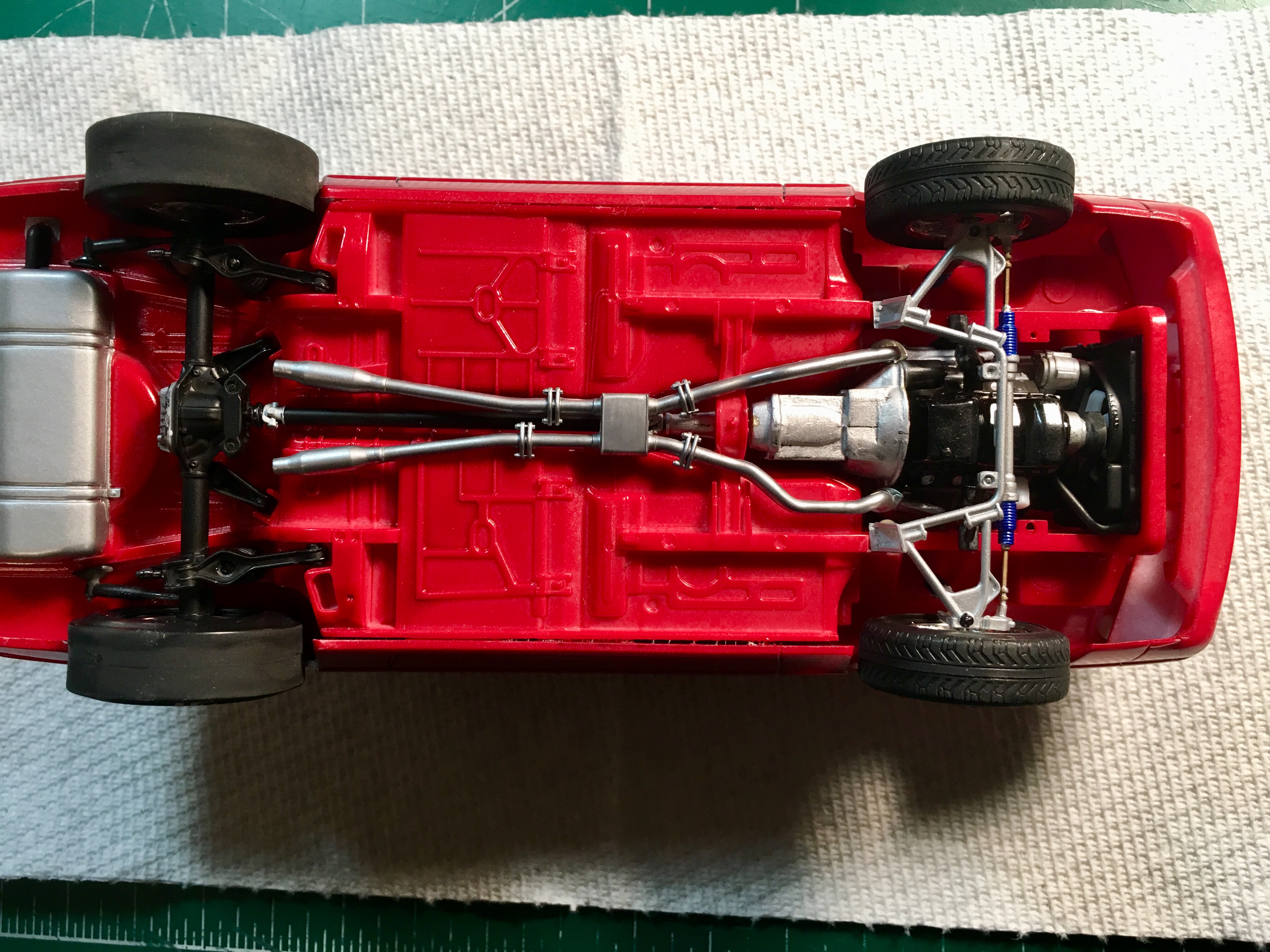

Here is a pic of mine. Hope it helps.

Edited March 21, 2019 by Brutalform

[Brutalform]

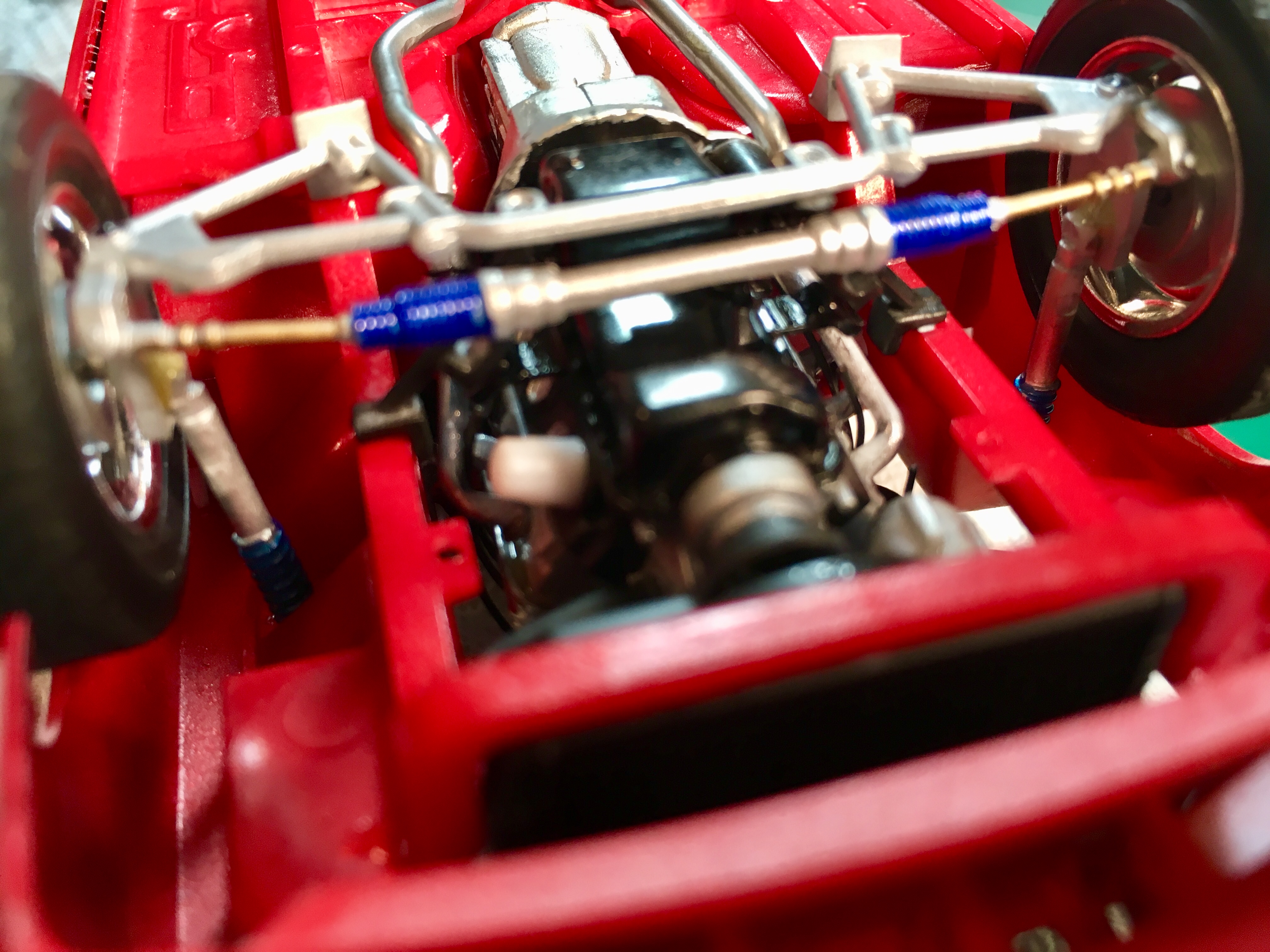

This is the stance it has, which looks pretty good, I think.

[shoopdog]

16 hours ago, Brutalform said:

Keith, you don’t use that piece. Unless you don’t want the tubular k frame. I remember my engine seemed like it sat in there pretty sloppy, but as the build came together it all worked out. It was a bit confusing and I also remember the struts being a pain too.

Here is a pic of mine. Hope it helps.

Do these suspension braces support the engine eventually?

[Brutalform]

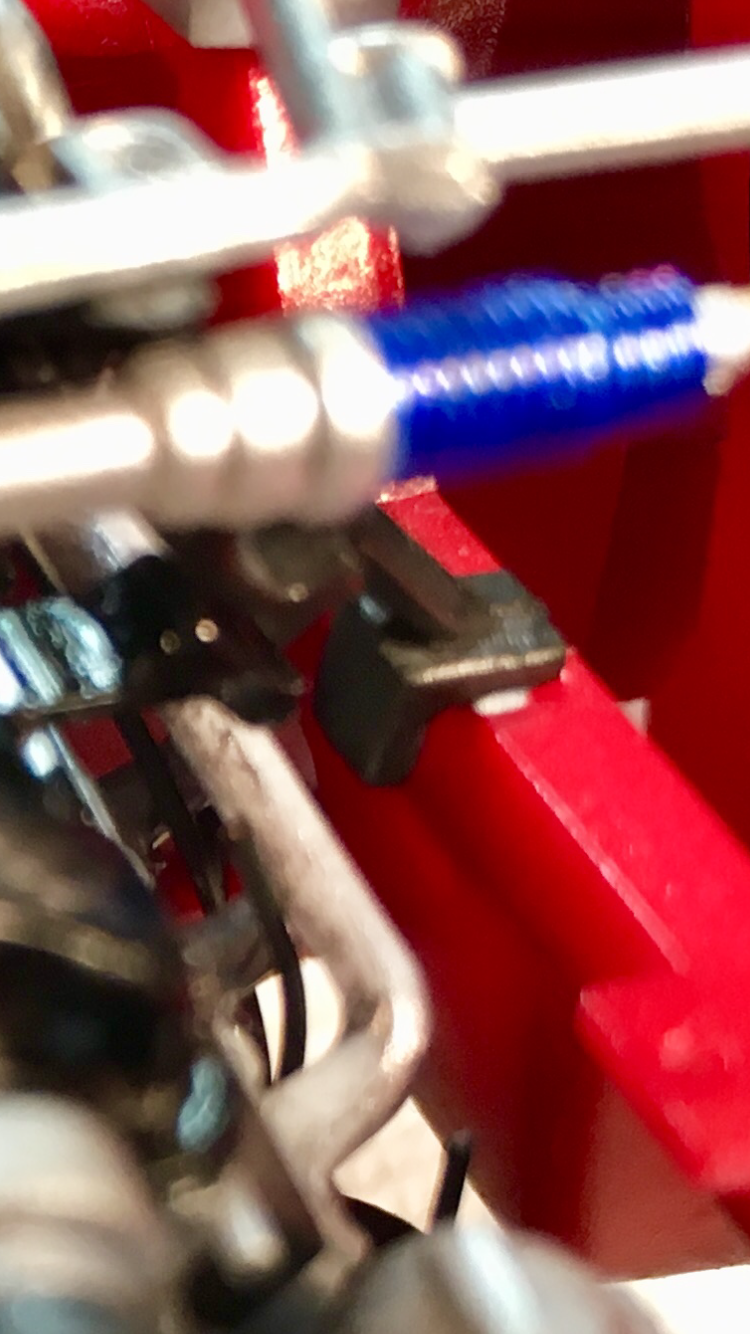

Those black brackets that fasten to the frame, are fastened to brackets on each side of the oil pan.

[Brutalform]

[Brutalform]

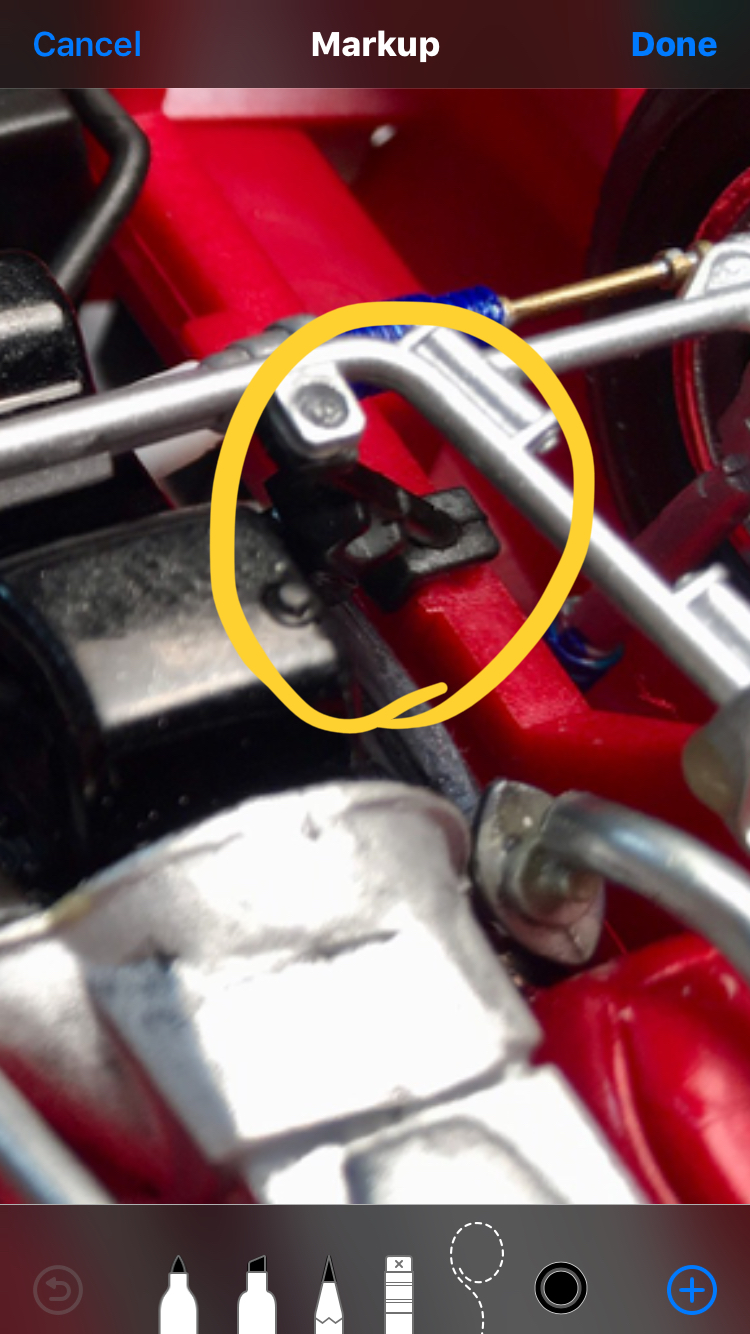

Sorry for the mistakes. I tried to circle the part but I messed up when I tried posting.

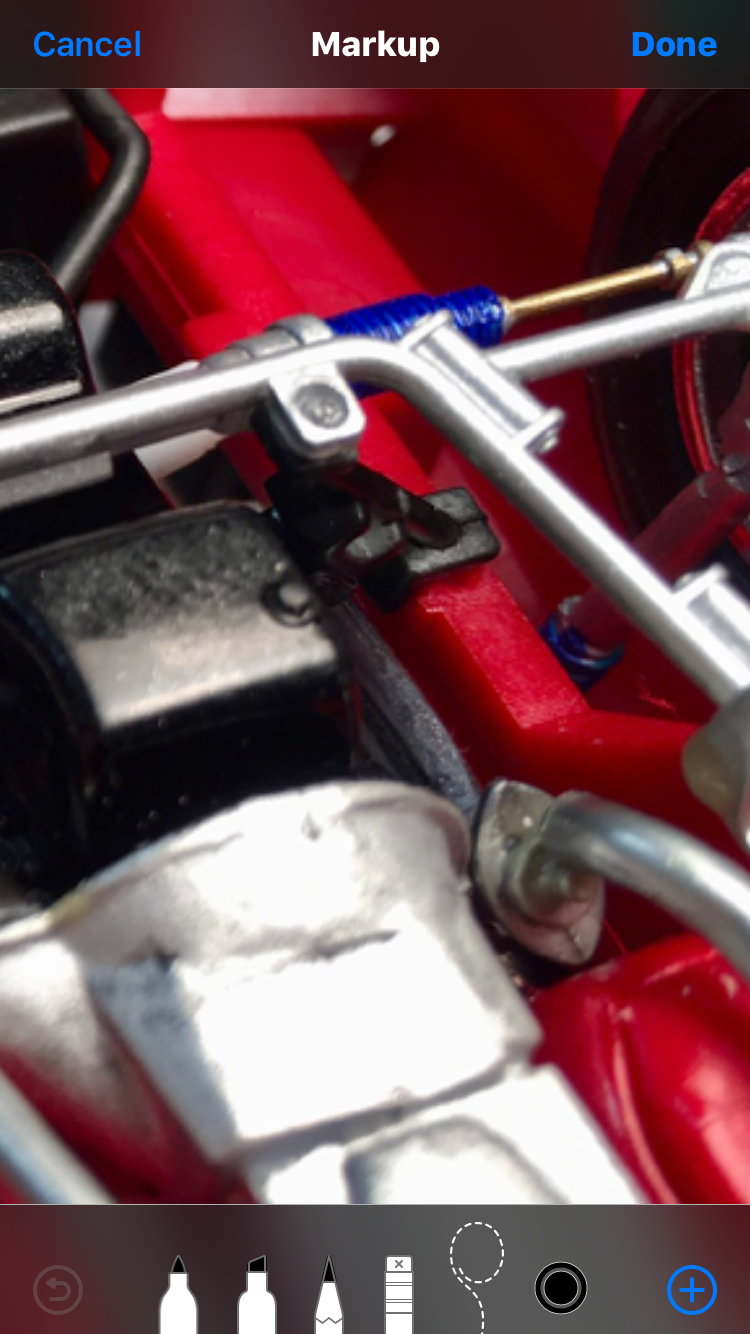

But here it is now.

[Brutalform]

[shoopdog]

Tom, thank you very much for taking the time to post up your pics. I think I got it now, I can see how it would be a little sloppy til that point. Oh, I forgot to mention what a nice looking Mustang you have there!  Thank you again.

[Brutalform]

You are very welcome, Keith.  Now that I think back, it was pretty confusing for me too. IIRC, I even took a break from it because of the front suspension. Have fun and be sure to post pics when it’s finished.
