David G. Posted October 11, 2021 Share Posted October 11, 2021 I really enjoy projects like this. It looks like you've got a start on a good, solid foundation. David G. Quote Link to comment Share on other sites More sharing options...
thatz4u Posted October 11, 2021 Share Posted October 11, 2021 nice work Scott looking forward to seeing it finished.. Quote Link to comment Share on other sites More sharing options...

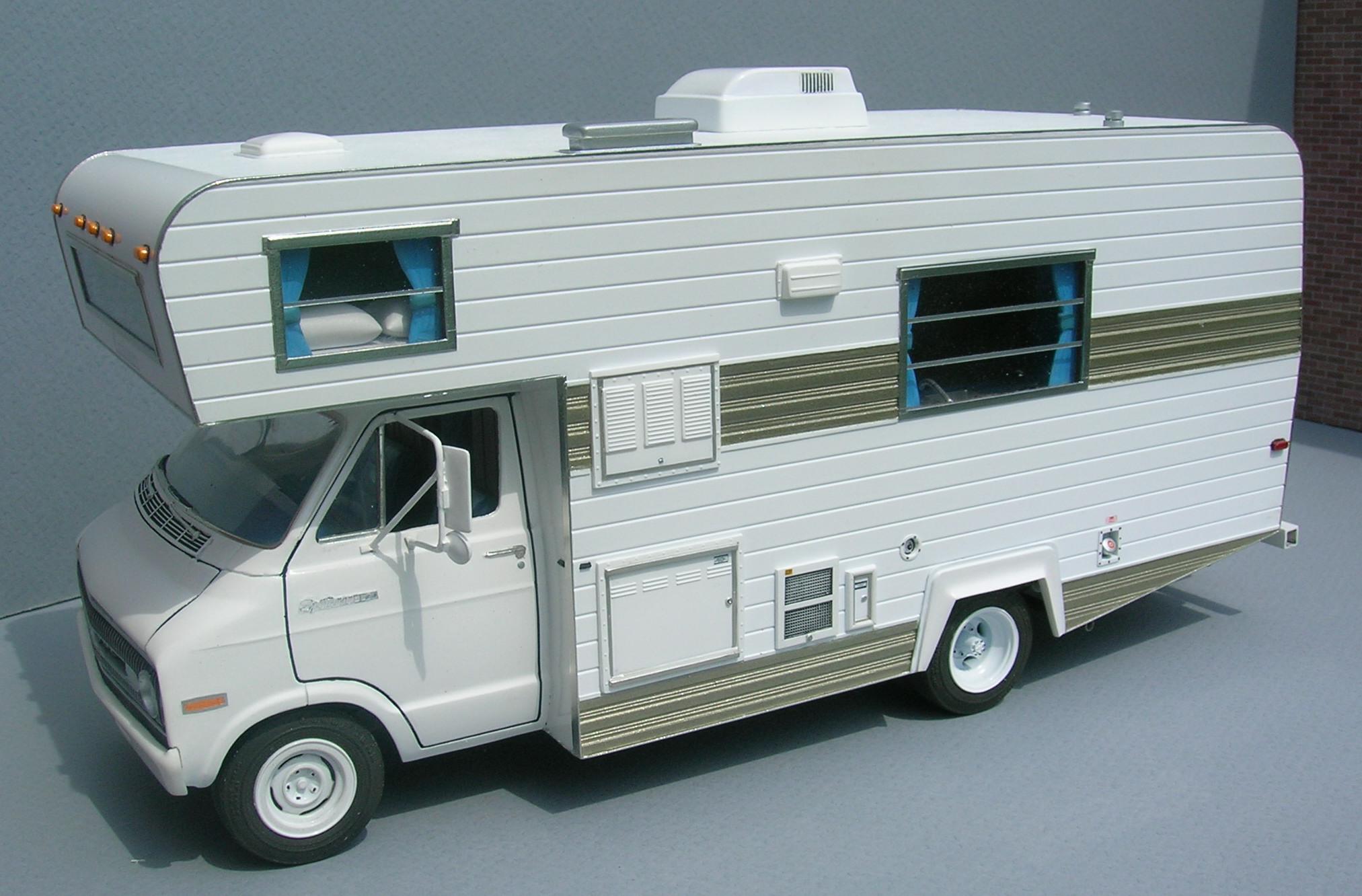

Repstock Posted October 11, 2021 Share Posted October 11, 2021 (edited) On 9/20/2021 at 4:12 PM, Smoke Wagon said: That’s a great project. Another c class camper was done a while back on the forum, but it used a Dodge B van cab and chassis. Are you planning to use the engine that came in the Ford van kit or are you planning on swapping in a 460? Is this the one? If it helps, part of my siding is scribed, and part of it is cut from the Open Road camper. Can't wait to see the Ford done! I'll be following! Edited October 11, 2021 by Repstock 3 Quote Link to comment Share on other sites More sharing options...
Smoke Wagon Posted October 12, 2021 Share Posted October 12, 2021 7 hours ago, Repstock said: Is this the one? Yes @Repstock that’s the one! Top notch build and some of the best detailing I’ve ever seen put into a model. Excited to see your Ford take shape too, @Oldmopars. C class campers are fun stuff. Many a time I rode on the overhead bunk looking out the front facing window on the way home as a kid. Quote Link to comment Share on other sites More sharing options...
Oldmopars Posted October 12, 2021 Author Share Posted October 12, 2021 23 hours ago, Repstock said: Is this the one? If it helps, part of my siding is scribed, and part of it is cut from the Open Road camper. Can't wait to see the Ford done! I'll be following! Is there a build thread for this one? If so, can you link it here? Quote Link to comment Share on other sites More sharing options...

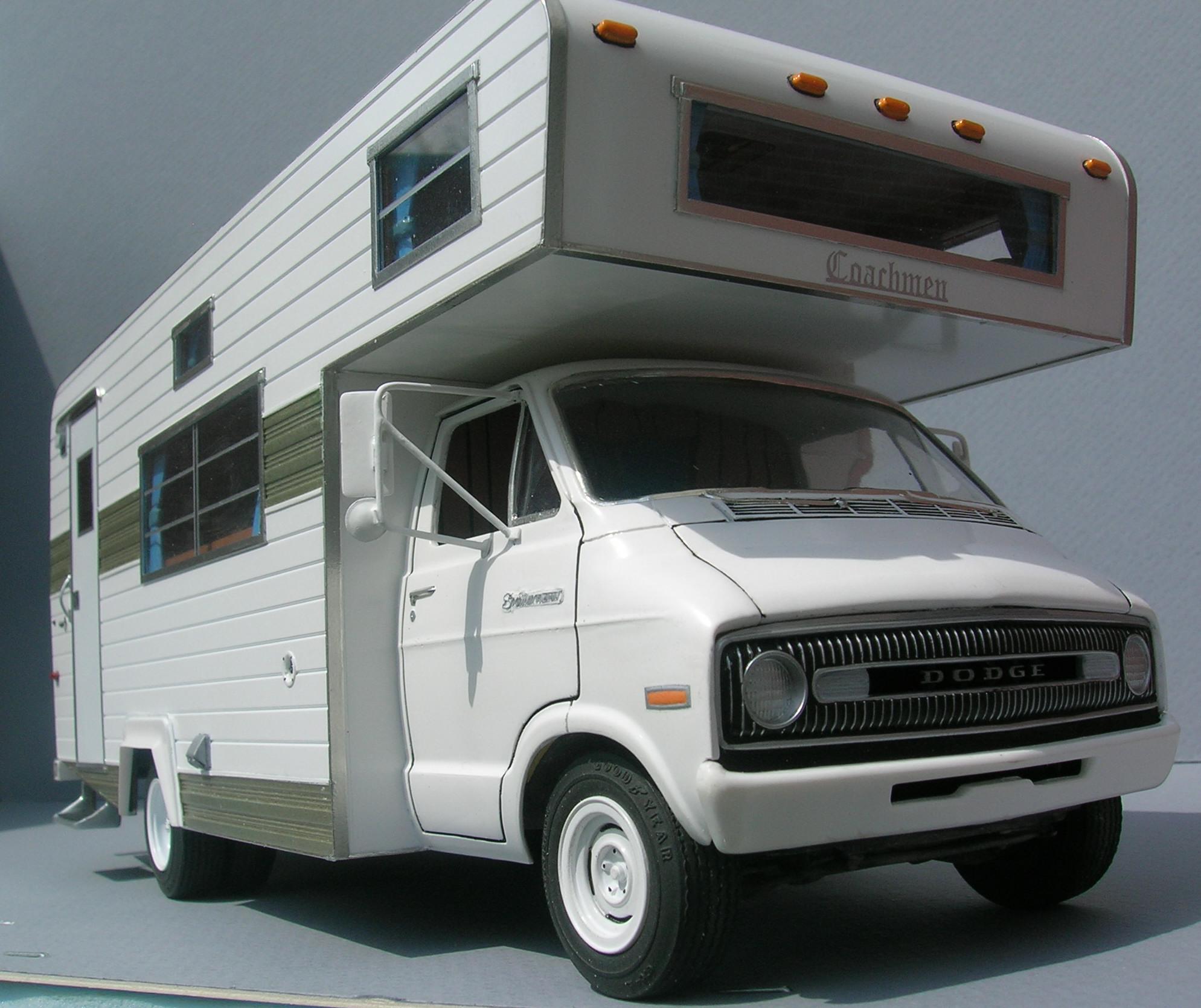

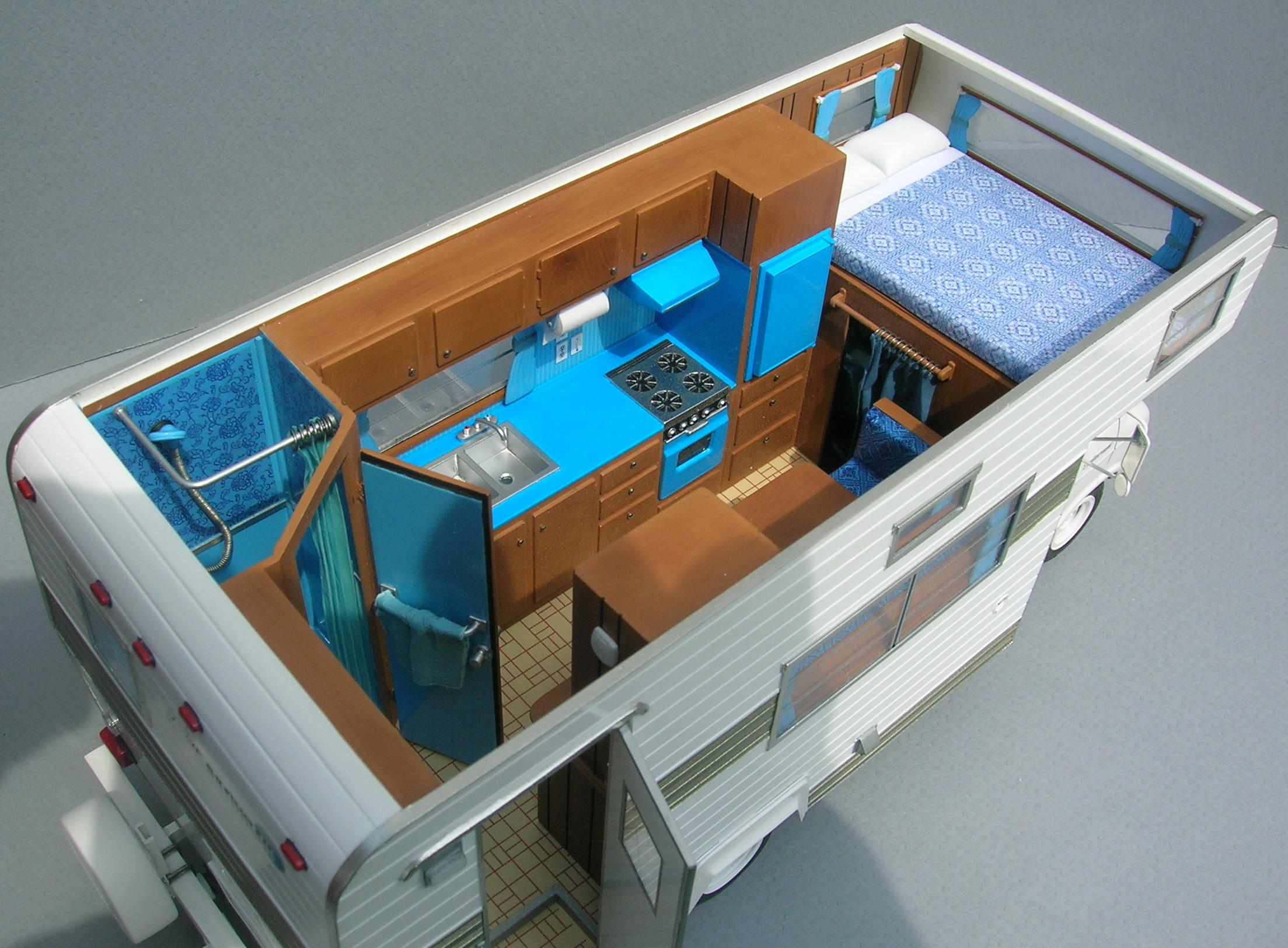

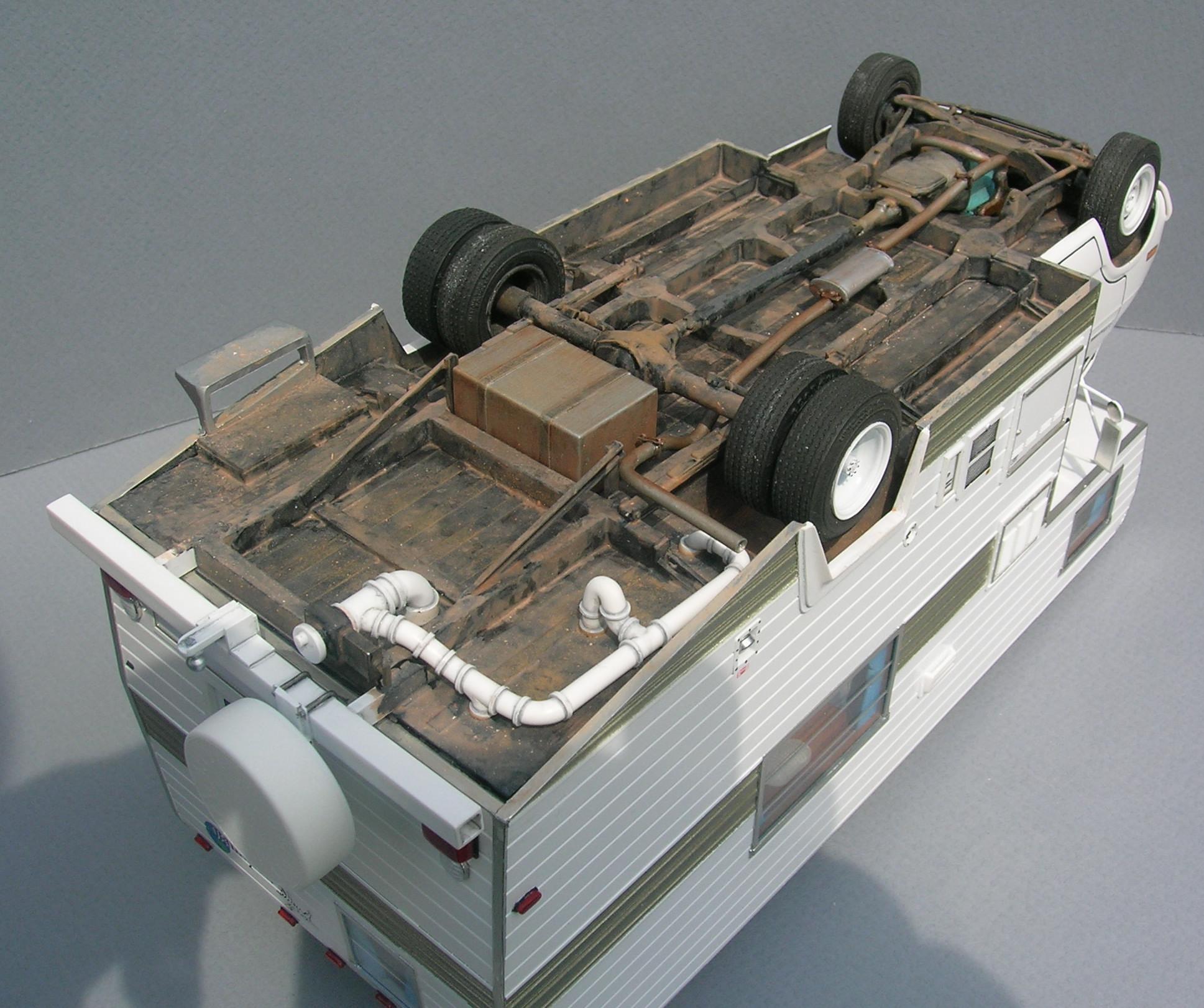

Repstock Posted October 12, 2021 Share Posted October 12, 2021 (edited) On 9/20/2021 at 4:12 PM, Smoke Wagon said: This is pretty much all the pics I have. I hope they can help you.. Edited October 12, 2021 by Repstock 4 Quote Link to comment Share on other sites More sharing options...
hct728(Bob) Posted October 13, 2021 Share Posted October 13, 2021 19 hours ago, Repstock said: This is pretty much all the pics I have. I hope they can help you.. Nice work, Tom! You integrated the parts from the Open Road Camper kit so neatly and then added quite a few of your own in the same style, perfectly! Love the dual rear wheels too, you don't miss a thing! Thanks for sharing! Quote Link to comment Share on other sites More sharing options...

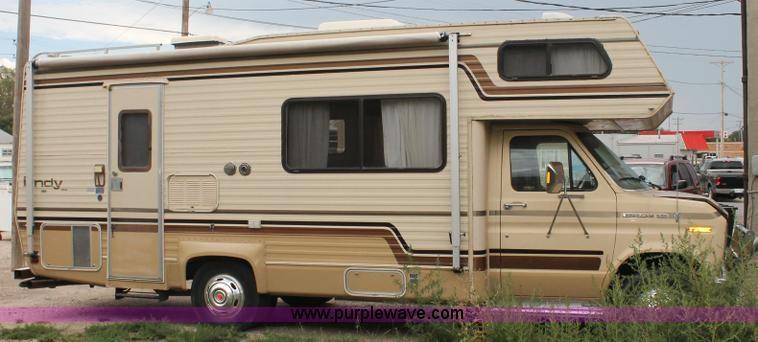

Oldmopars Posted October 13, 2021 Author Share Posted October 13, 2021 So I had some time today to work on this. I am out of town, so it all had to be digital. I found a picture of a Motorhome of the style I want to build. I loaded the picture into a program my company has and traced it, then resized it to the right size. I then flipped it over and using a picture of the other side created something close. Our program allows you to print actual size, so I a going to print it and use those prints to cut out the sides. Once the sides are done, I can create the interior. I need to see if I can find interior pictures of this MH or just create my own. I know that the bathroom will be in the rear and I can see the kitchen would be an the passenger side. Should not be to hard to draw from there, I own a real 1:1 Travel trailer and can use the interior to scale from. This may be a slow build, I want it to be a quality build, and with my ADD if I don't take a break from it to build other projects, I will just rush it and it will be just OK. 1 Quote Link to comment Share on other sites More sharing options...
Repstock Posted October 14, 2021 Share Posted October 14, 2021 22 hours ago, Oldmopars said: So I had some time today to work on this. I am out of town, so it all had to be digital. I found a picture of a Motorhome of the style I want to build. I loaded the picture into a program my company has and traced it, then resized it to the right size. I then flipped it over and using a picture of the other side created something close. Our program allows you to print actual size, so I a going to print it and use those prints to cut out the sides. Once the sides are done, I can create the interior. I need to see if I can find interior pictures of this MH or just create my own. I know that the bathroom will be in the rear and I can see the kitchen would be an the passenger side. Should not be to hard to draw from there, I own a real 1:1 Travel trailer and can use the interior to scale from. This may be a slow build, I want it to be a quality build, and with my ADD if I don't take a break from it to build other projects, I will just rush it and it will be just OK. Drawing looks good, but rear door should be a bit taller. Quote Link to comment Share on other sites More sharing options...
hct728(Bob) Posted October 14, 2021 Share Posted October 14, 2021 So great to draw it up on the computer! Always wanted to do a proper drawing of my scratchbuilts but wound up using fuzzy screenshots or measured photos. You’re off to a great start, doing the hard planning now. There are some sites with camper brochures, got some photos myself for the Hess GMC Training Van Quote Link to comment Share on other sites More sharing options...
Oldmopars Posted October 14, 2021 Author Share Posted October 14, 2021 1 hour ago, Repstock said: Drawing looks good, but rear door should be a bit taller. I agree. I will make the rer door taller. I wenton line to see what the doors were and the one I found was 30x72. I think I need to go with an 84in door instead. Quote Link to comment Share on other sites More sharing options...
Oldmopars Posted October 14, 2021 Author Share Posted October 14, 2021 (edited) 1 hour ago, hct728(Bob) said: So great to draw it up on the computer! Always wanted to do a proper drawing of my scratchbuilts but wound up using fuzzy screenshots or measured photos. You’re off to a great start, doing the hard planning now. There are some sites with camper brochures, got some photos myself for the Hess GMC Training Van Yes, this way I can keep everything in scale. I have had issues in the past keeping the scale correct when I just eyeball it. The next step will be some CAD work, Cardboard Aided Design. Glue the drawing to some cardboard and make sure it all mocks up correctly before cutting up some expencive styrene. Edited October 14, 2021 by Oldmopars 1 Quote Link to comment Share on other sites More sharing options...
slusher Posted October 14, 2021 Share Posted October 14, 2021 55 minutes ago, Oldmopars said: Yes, this way I can keep everything in scale. I have had issues in the past keeping the scale correct when I just eyeball it. The next step will be some CAD work, Cardboard Aided Design. Glue the drawing to some cardboard and make sure it all mocks up correctly before cutting up some expencive styrene. Smart idea.. Quote Link to comment Share on other sites More sharing options...

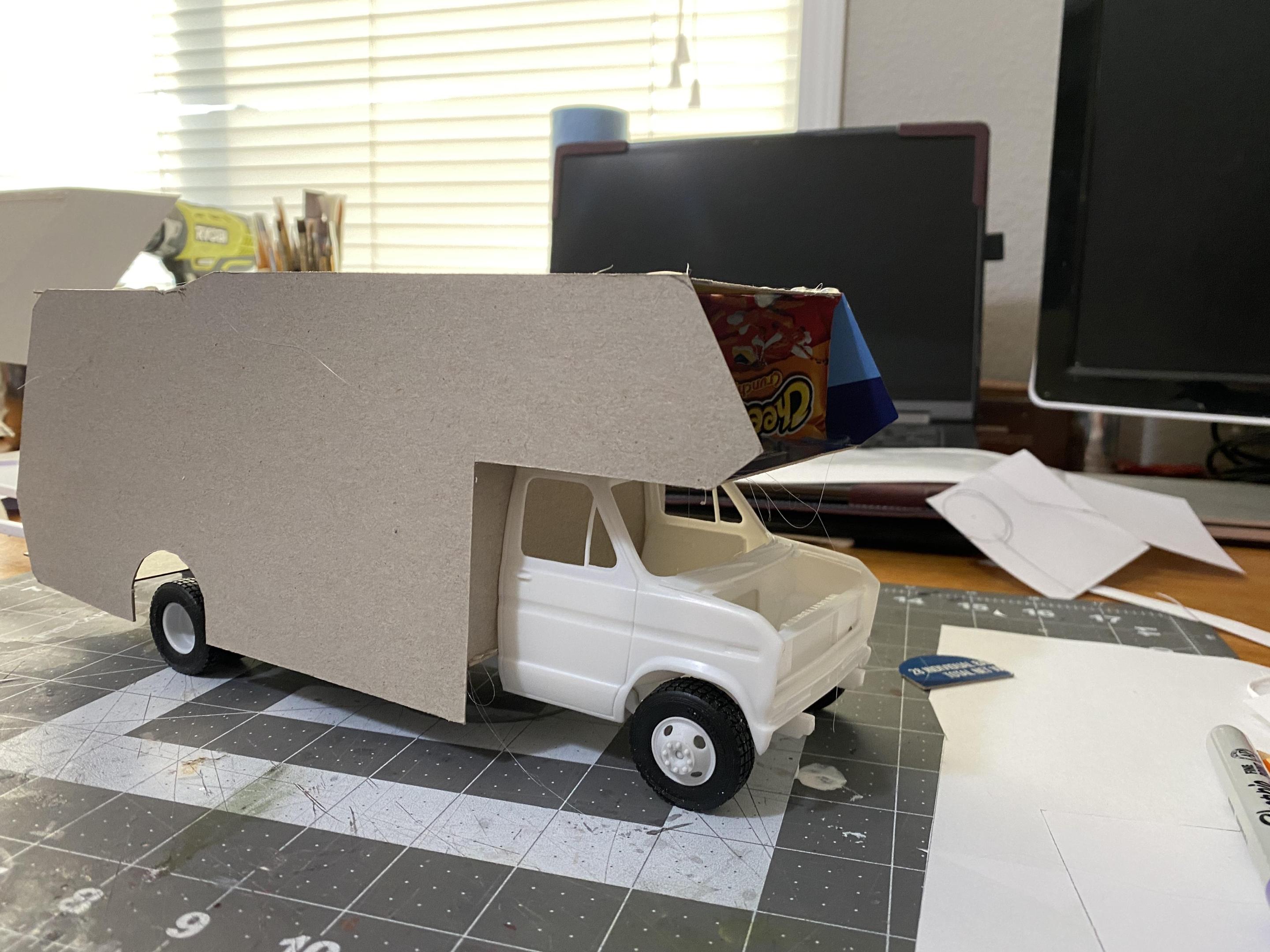

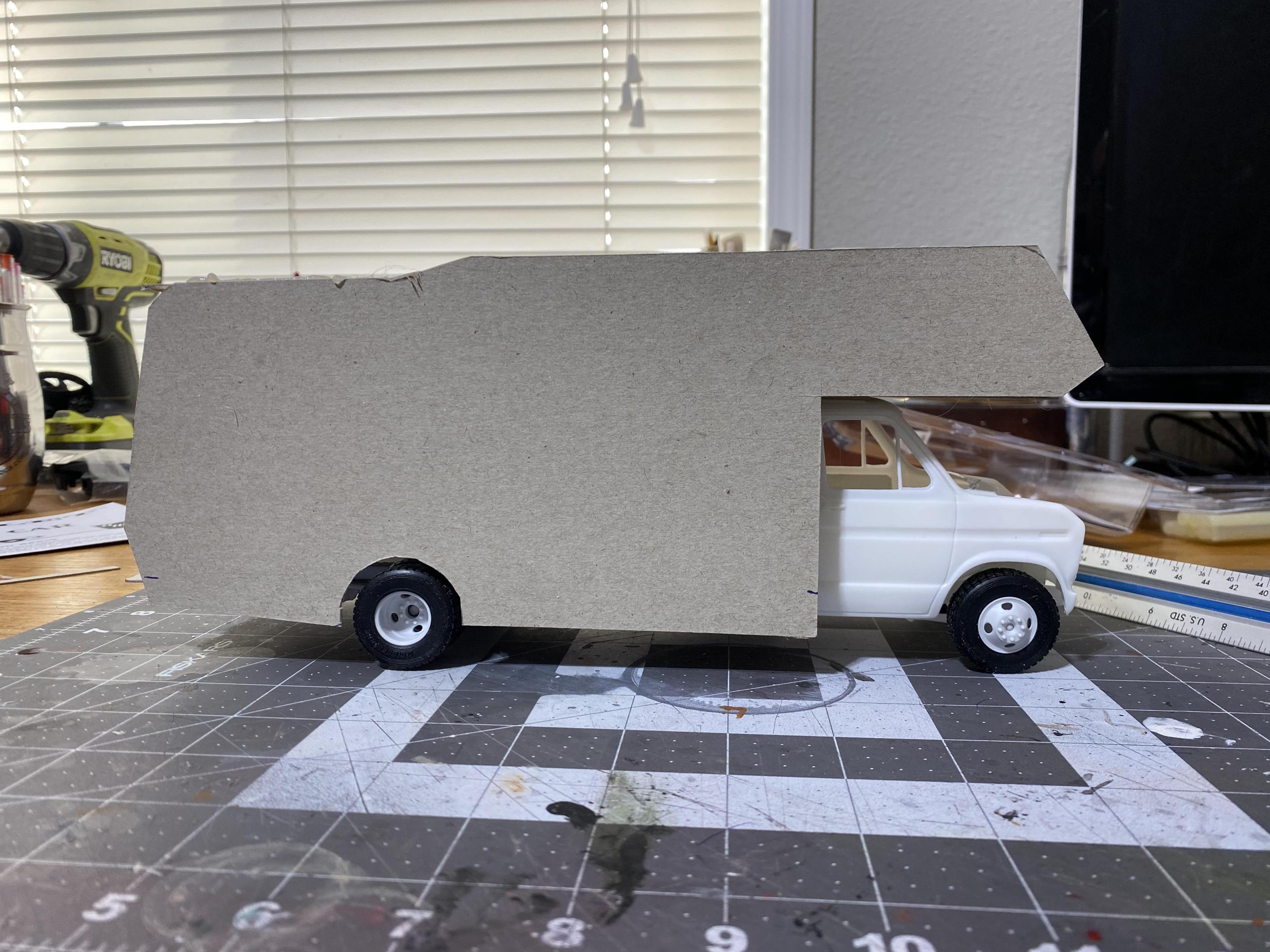

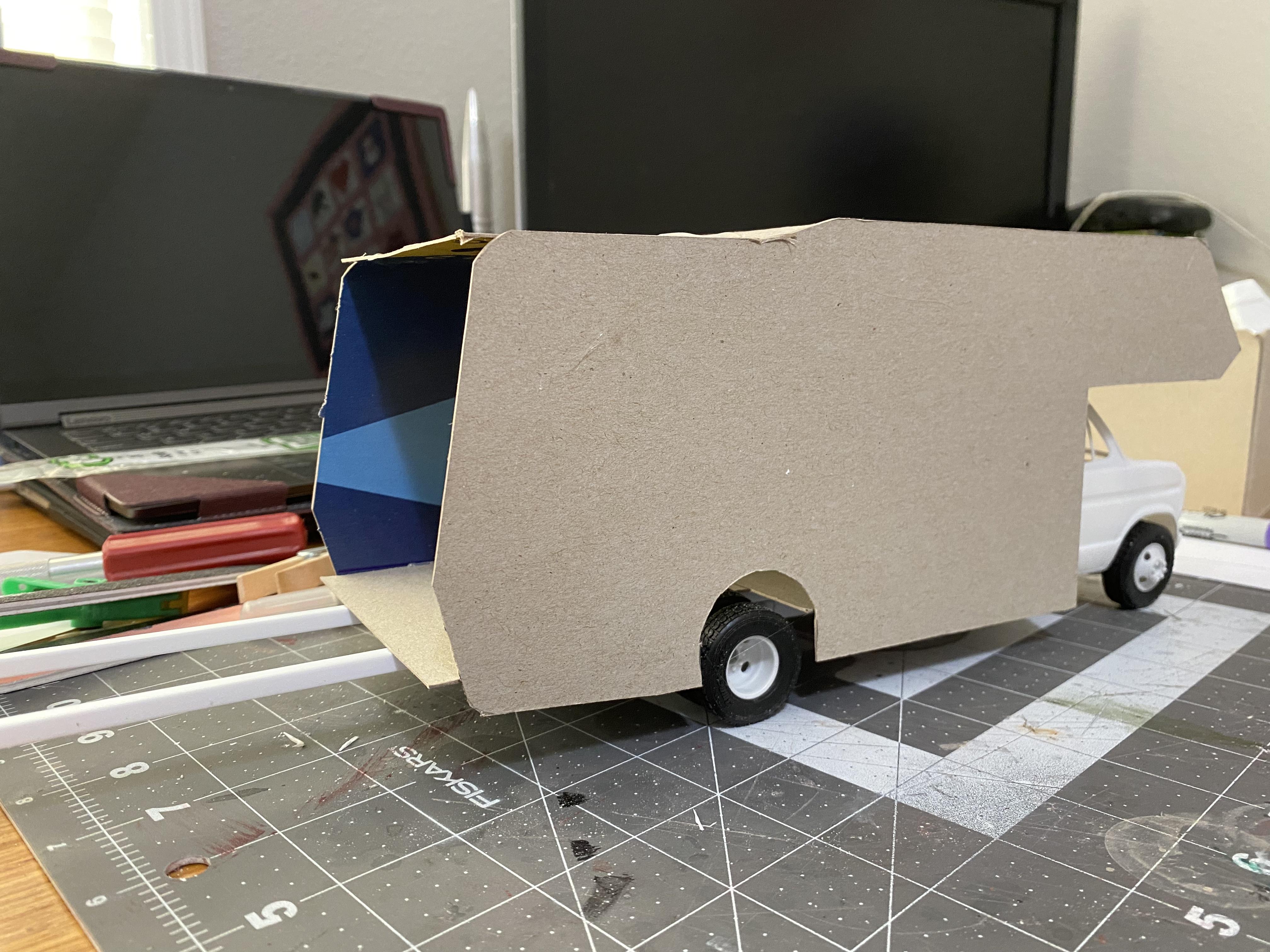

Oldmopars Posted October 24, 2021 Author Share Posted October 24, 2021 Progress has been a bit slow, but I had a bit of time to do some CAD work. Very rough cardboard shell is made. I am using some hot glue to hold it all together. At least this gives me a place to start. I do see the wheel Wells need to come down a bit. It is at least getting close. 1 Quote Link to comment Share on other sites More sharing options...
Oldcarfan27 Posted October 24, 2021 Share Posted October 24, 2021 I'm liking it! Word of advice. Compare the profile picture with your cardboard mockup. The roof over the cab looks just a little too high. You might want to take out a little off the top. Quote Link to comment Share on other sites More sharing options...
SSNJim Posted October 24, 2021 Share Posted October 24, 2021 The problem is that the overhang is too tall. in the prototype picture (and the CAD and Chevy camper), the overhang is about as tall as the door handles to the factory roof. The cardboard on yours is about as tall as the front wheel wells to the factory roof. Cut the overhang from the bottom to be narrower, drop the whole assembly over the frame so the overall height is shorter, and trim the very bottom to be equal with the cab's rocker panel. That will also put your rear wheel well at the right height. Your camper looks too tall compared to the prototype. Your CAD is about right, but the cardboard isn't. I like the build a lot, and will be following along. I love scratchbuilding - I'm not that good at it, but it's a blast, and a WIP is always enjoyable. Looking forward to this. Quote Link to comment Share on other sites More sharing options...
Oldmopars Posted October 24, 2021 Author Share Posted October 24, 2021 1 hour ago, Oldcarfan27 said: I'm liking it! Word of advice. Compare the profile picture with your cardboard mockup. The roof over the cab looks just a little too high. You might want to take out a little off the top. 7 minutes ago, SSNJim said: The problem is that the overhang is too tall. in the prototype picture (and the CAD and Chevy camper), the overhang is about as tall as the door handles to the factory roof. The cardboard on yours is about as tall as the front wheel wells to the factory roof. Cut the overhang from the bottom to be narrower, drop the whole assembly over the frame so the overall height is shorter, and trim the very bottom to be equal with the cab's rocker panel. That will also put your rear wheel well at the right height. Your camper looks too tall compared to the prototype. Your CAD is about right, but the cardboard isn't. I like the build a lot, and will be following along. I love scratchbuilding - I'm not that good at it, but it's a blast, and a WIP is always enjoyable. Looking forward to this. Thank you both for your insight. This is why I used cardboard first. I am also “sitting” on it with it on the shelf. This way I can keep looking at it and make corrections before I cut the real thing. I will do as you said, because you are both right, too tall. I could not get my CAD drawings to print, so I tried to transfer the info and I clearly got something wrong. Quote Link to comment Share on other sites More sharing options...
NOBLNG Posted October 24, 2021 Share Posted October 24, 2021 Nice scratch building project! ? What I have done before is to re-size a photo to the finished dimensions I want and use it as the actual pattern….since you have a perfect profile picture? Quote Link to comment Share on other sites More sharing options...

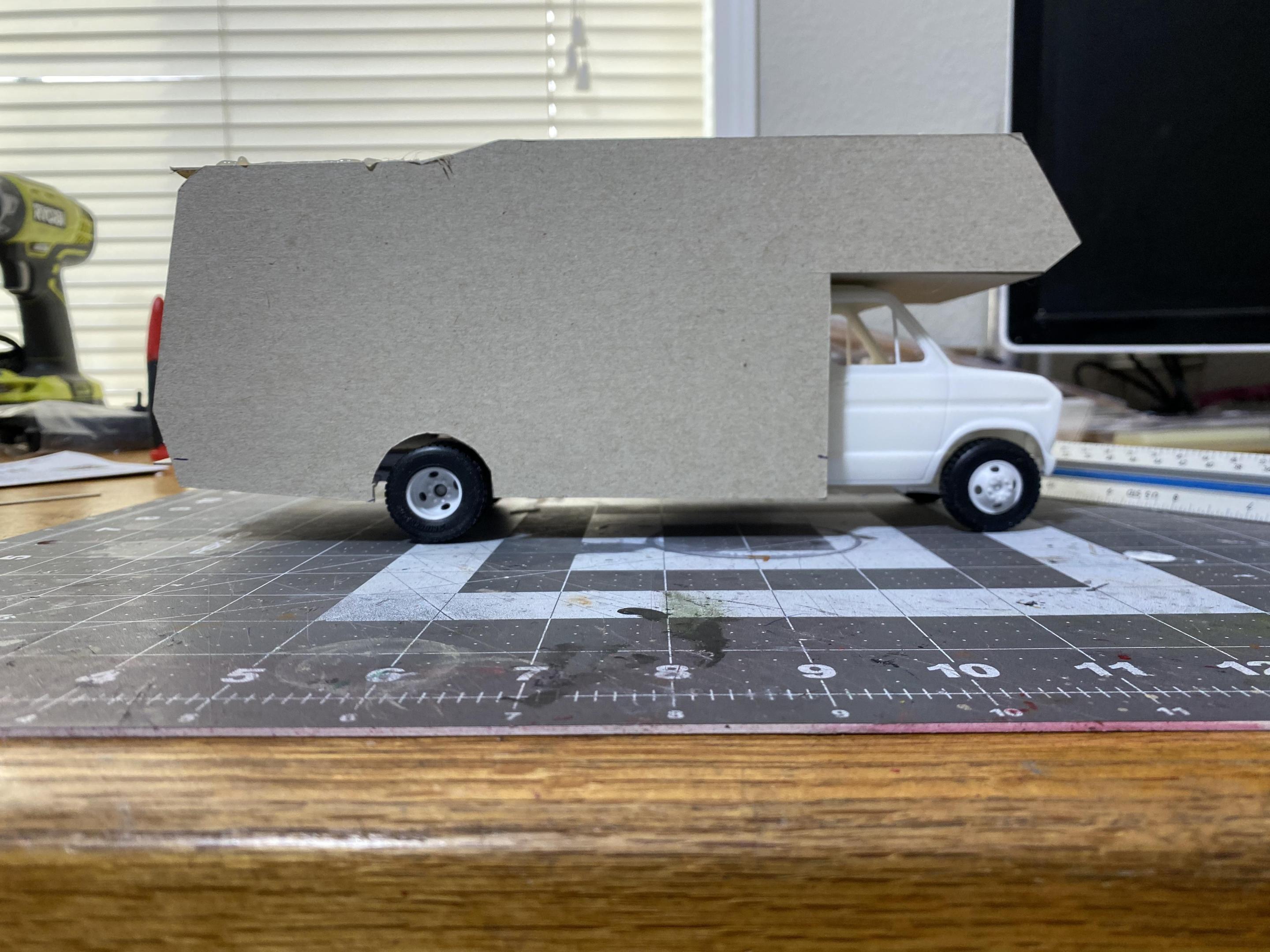

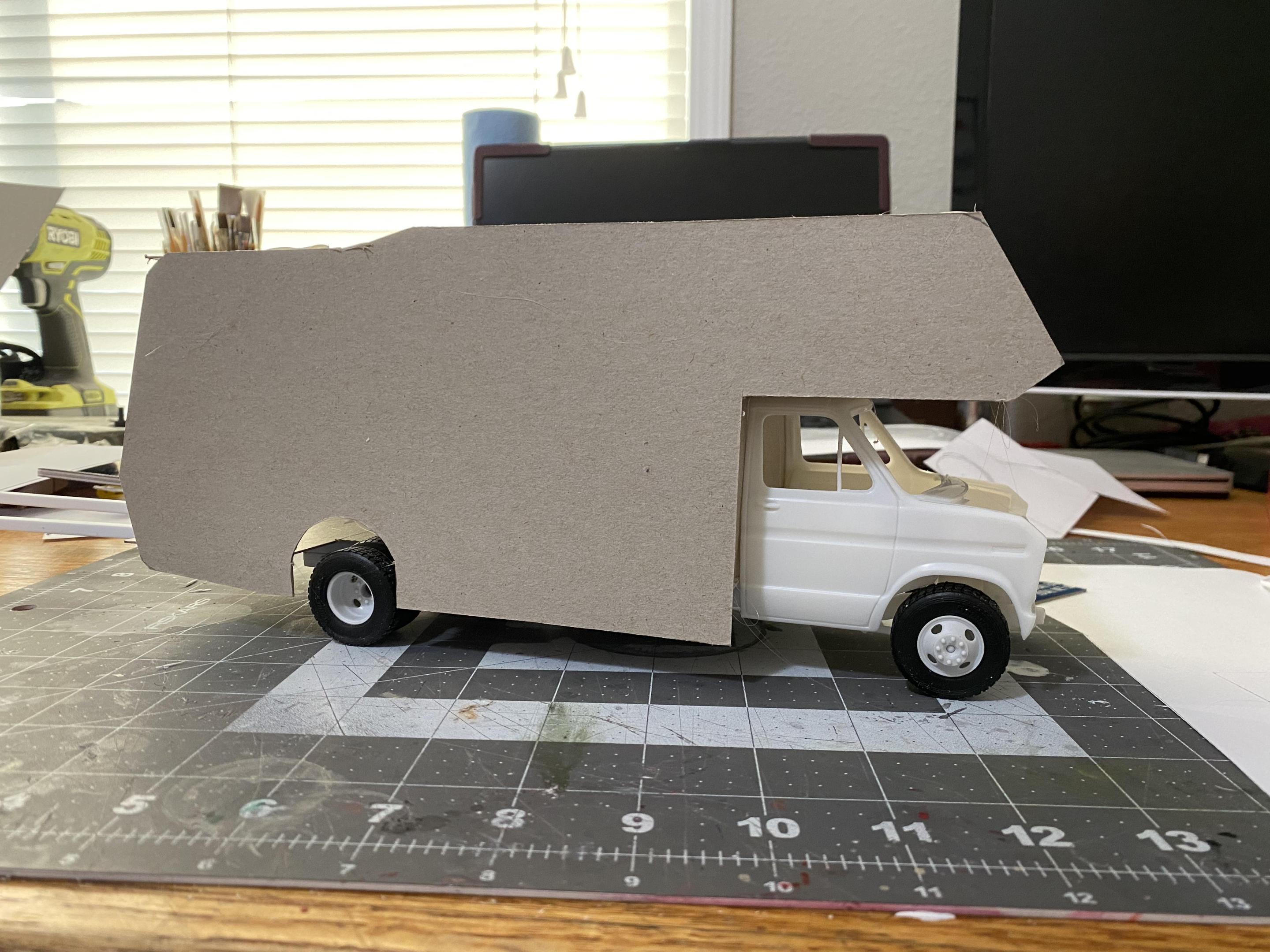

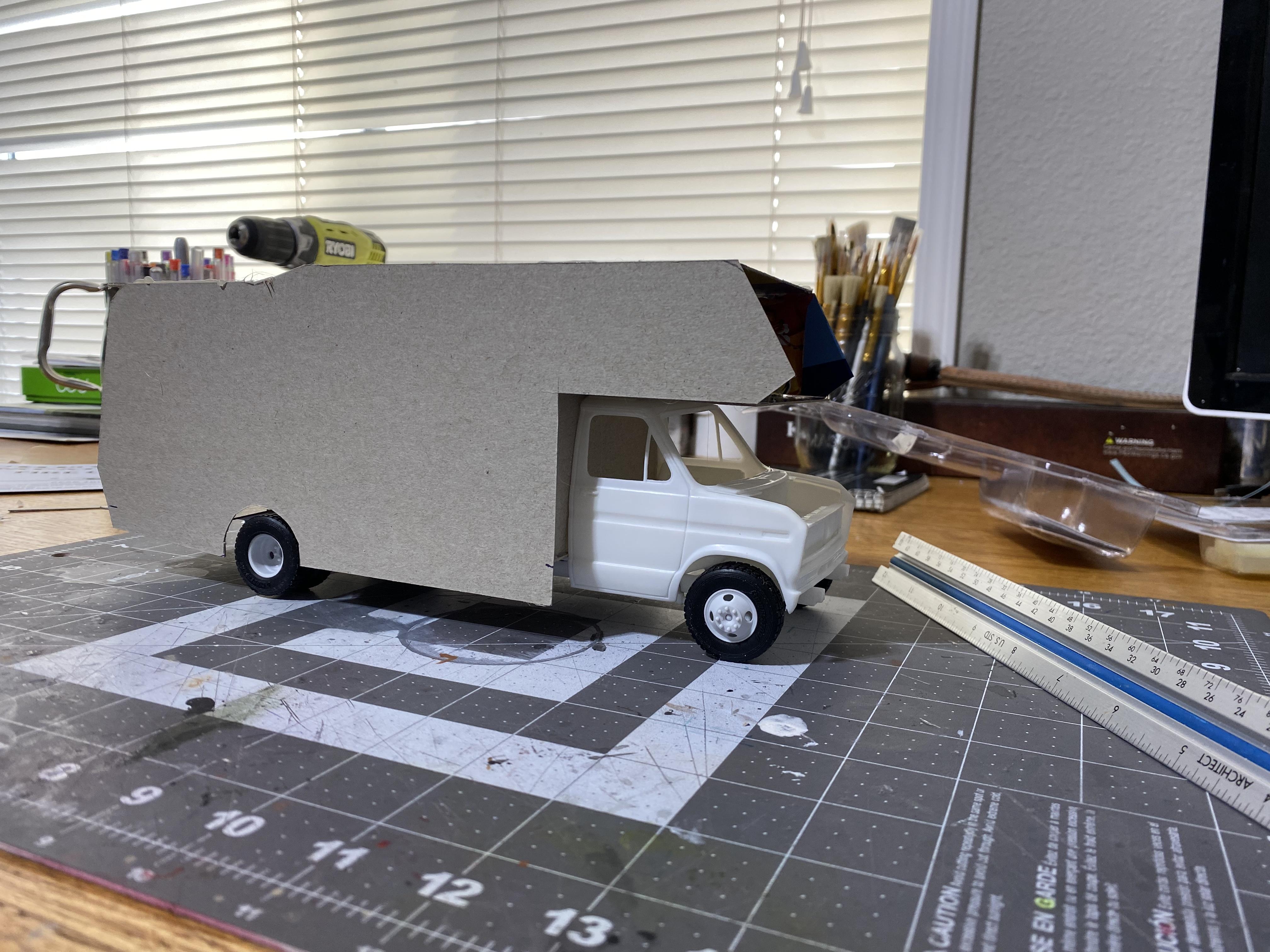

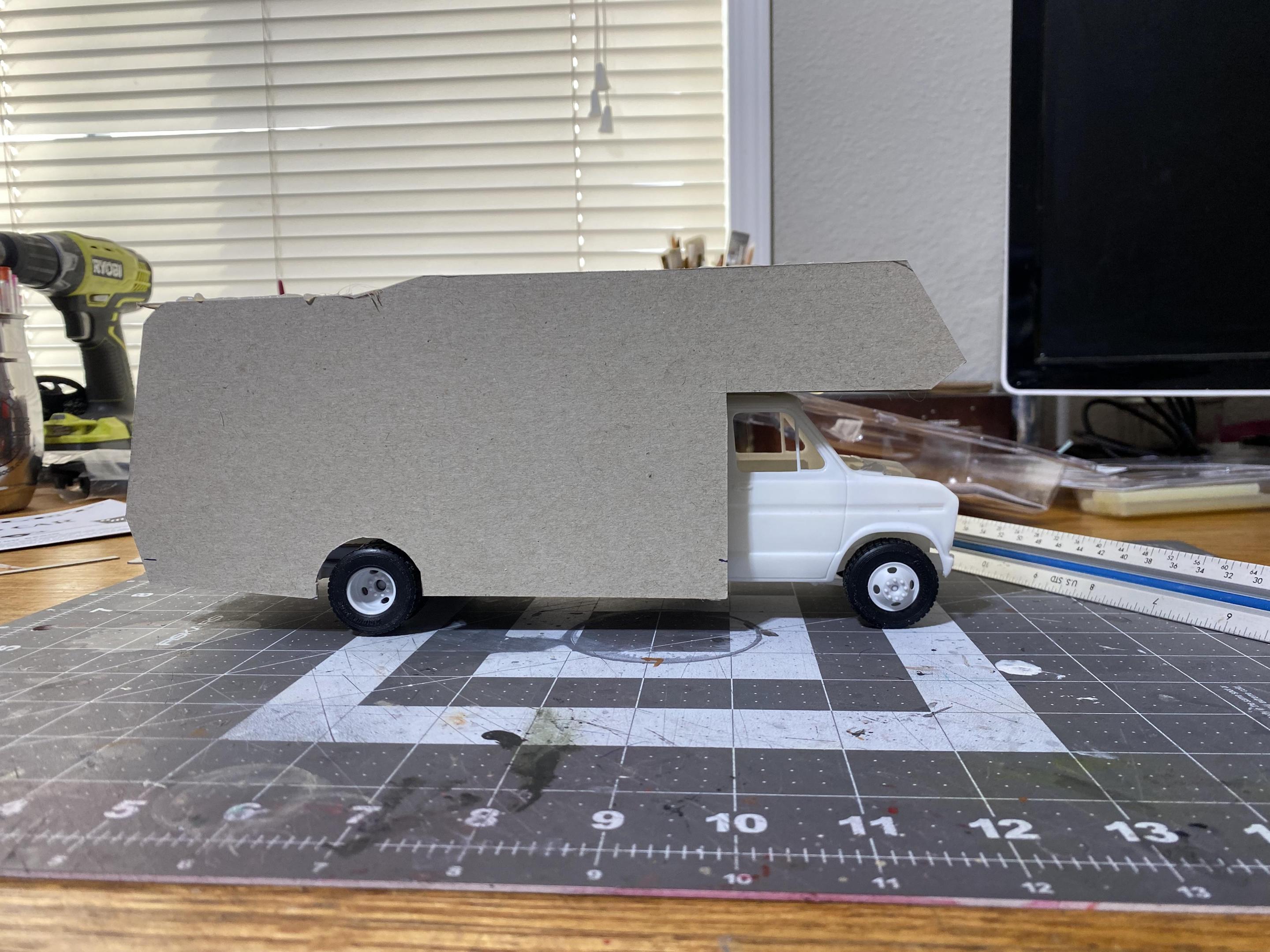

Oldmopars Posted October 31, 2021 Author Share Posted October 31, 2021 Ok, let’s look at this again. As suggested I removed .25 from the bottom and moved it all down. I think it looks a lot better, but I think I may look at it a little more before cutting into my sheets. Let me know what you think. Quote Link to comment Share on other sites More sharing options...
TarheelRick Posted October 31, 2021 Share Posted October 31, 2021 Going to be a really interesting project, looking forward to more updates. It appears to me the overhand is a bit long over the front of the van and still a bit tall. Maybe its just the angle in the photo, but does the vertical side stick out past the edge of the van door. Anyway, keep on working that CAD until it suits you. Quote Link to comment Share on other sites More sharing options...
Smoke Wagon Posted October 31, 2021 Share Posted October 31, 2021 The shape is coming along great. I agree with TarheelRick, the front overhang does look a little long, usually they don’t extend past the length of the hood, like this: However, it’s your build and choice, and it will look great regardless. 1 Quote Link to comment Share on other sites More sharing options...
1930fordpickup Posted November 2, 2021 Share Posted November 2, 2021 This is looking better. When I look at the photo of the real camper I keep trying to use the front wheel as a gage for overhang. I agree with the others it appears a little to long yet. Your other corrections look great. This is turning out nice. Such a good idea to use the cardboard first. Quote Link to comment Share on other sites More sharing options...
SSNJim Posted November 2, 2021 Share Posted November 2, 2021 Looking much better - it is now very close to the prototype. Good job. Quote Link to comment Share on other sites More sharing options...

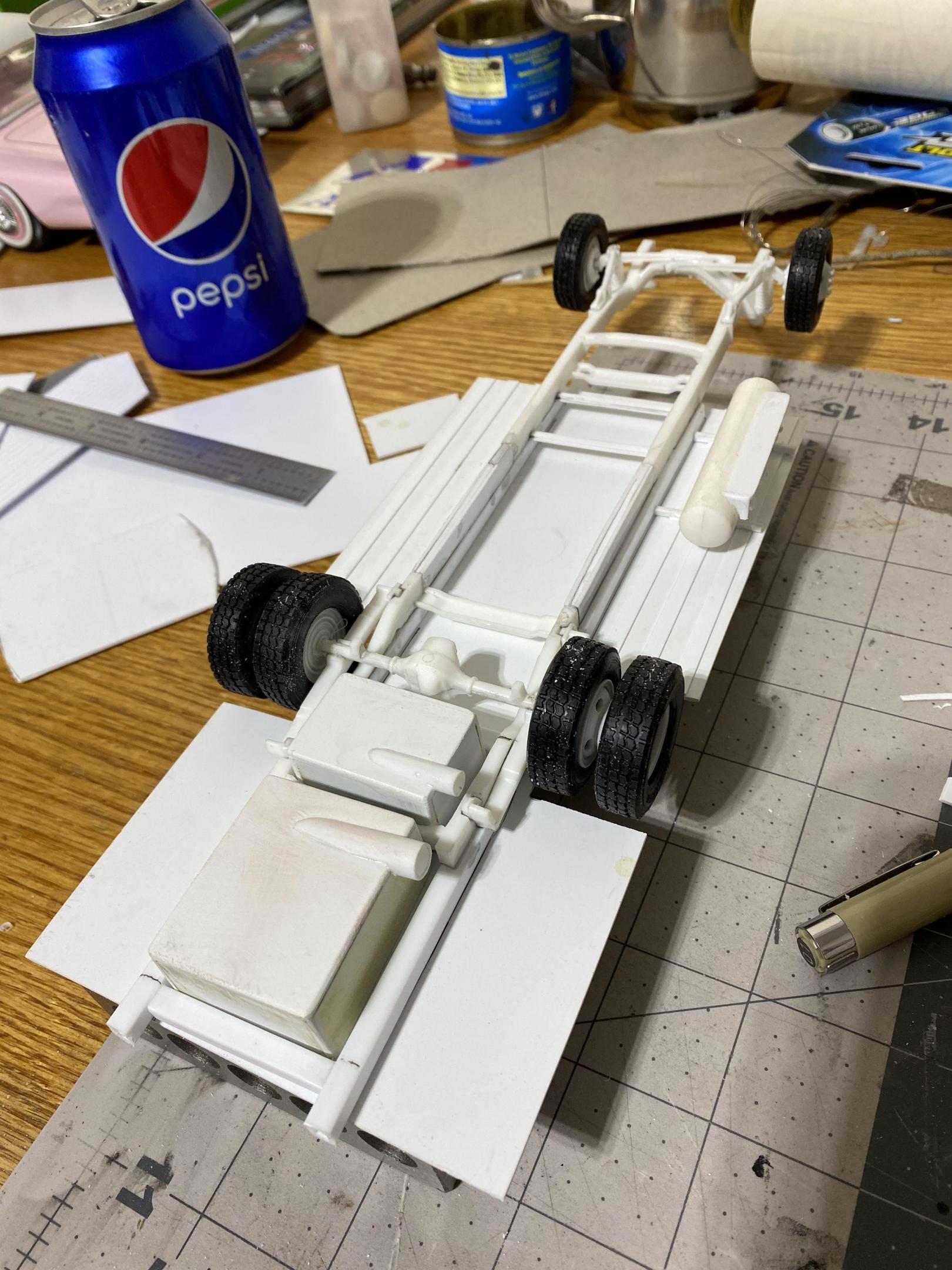

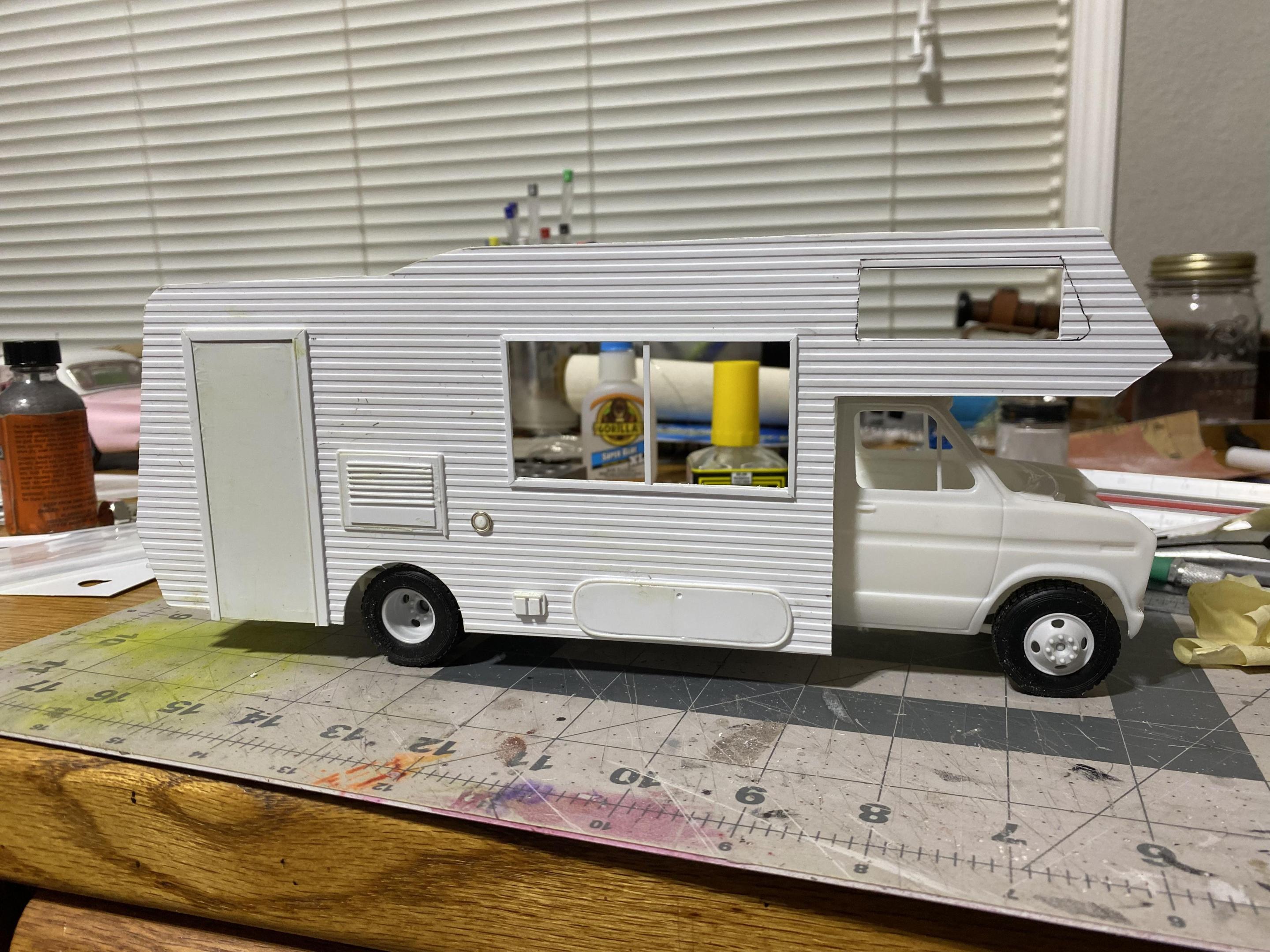

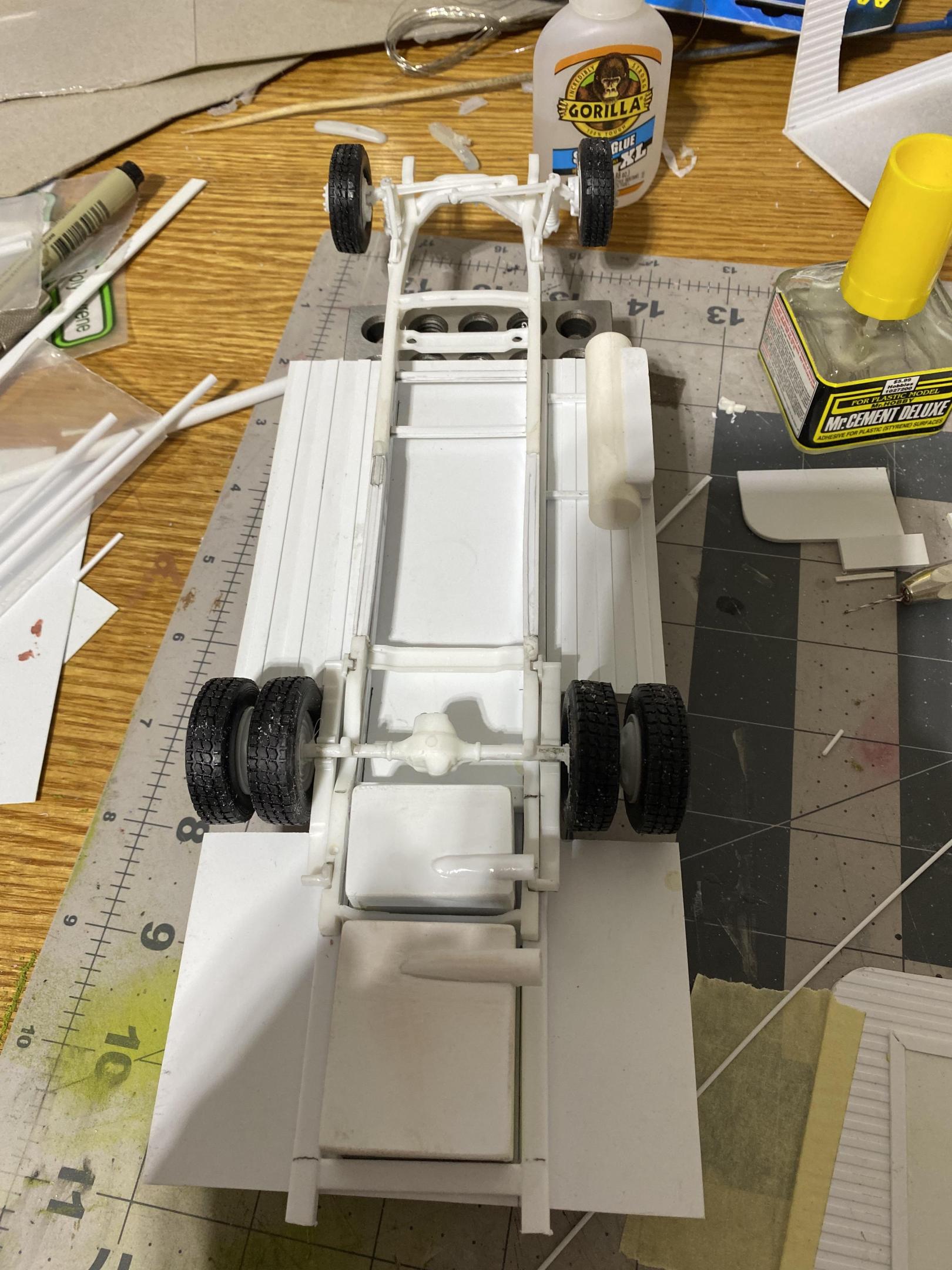

Oldmopars Posted November 28, 2021 Author Share Posted November 28, 2021 So I am making progress. I wanted to use the rounded windows, but I found it was near impossible to get the curves correct and constant. So, I am going with an older square style. I may go back and fix the lower door to make it square also. I also worked on the frame and holding tanks. I added a grey and black tank. I put a propane tank up front and still have to add a fuel tank. Quote Link to comment Share on other sites More sharing options...
Smoke Wagon Posted November 28, 2021 Share Posted November 28, 2021 The chassis and camper body are coming along great. What was your method for making corrugated siding? It looks great. Quote Link to comment Share on other sites More sharing options...
