HELP! Need help with Funny Car Chassis

[StyreneAddict420]

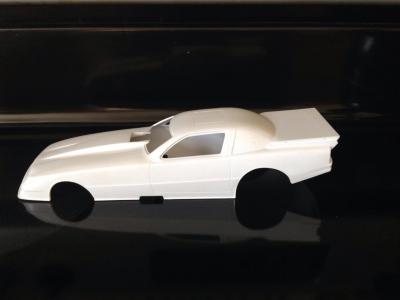

Hi Friends, so I want to start a new project, I have several funny car body's and engines that I purchased years back. I have no other funny car kits to use as a reference, does anybody know how I can go about scratchbuilding the frame? Any diagrams, pictures or measurements would be so greatly appreciated. My goal is to completely Scratchbuild this car without buying a kit and using parts I have lying around, my only trouble I'm gonna have is with the chassis like I said. Any help would be greatly appreciated. P.s. I will be building a modern funny car not a nostalgic one. I'm pretty sure the body I'm using is a McDonalds funny car made by Revell if that helps

[AZ Boy]

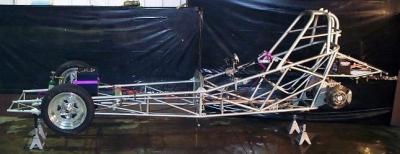

Hope this helps.

[StyreneAddict420]

Absolutely! Thank you AZ Boy and thanks for the quick response

[bobthehobbyguy]

http://www.markwilliams.com/chassisKits.aspx?CategoryID=216

found this link doing a google search on funnycar chassis

[comp1839]

i can tell you first hand the mark williams print is worth every penny of the $50.00 it cost.

[nitro norman]

The later Revell funny car kits are readily available on ebay, Spotlight Hobbies, etc. and they are not that expensive. You could get most of your reference from one of the chassis in those kits.
