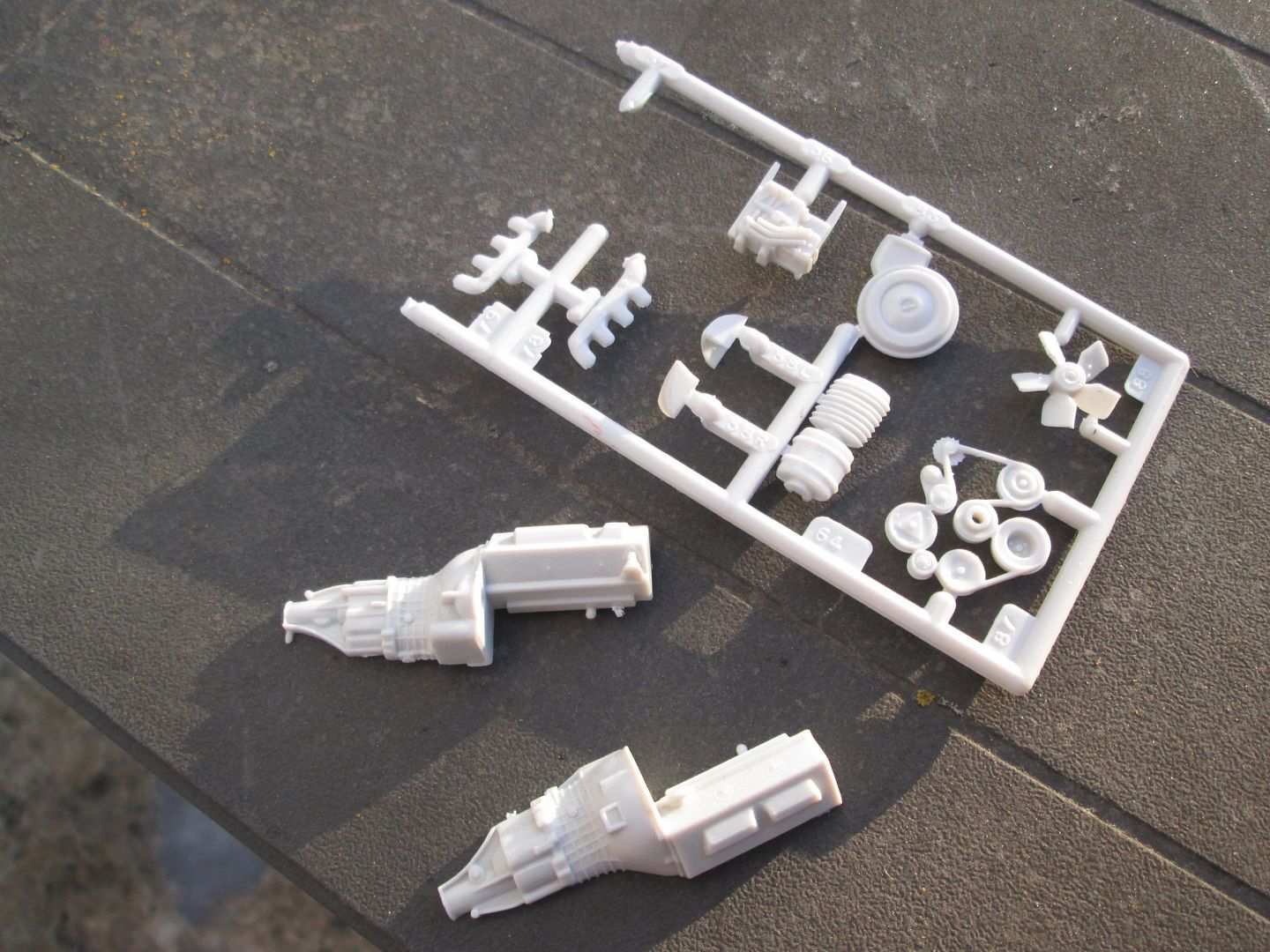

landman Posted May 24, 2016 Share Posted May 24, 2016 (edited) I had bought this to use the cab in an attempt to create a GMC B9000. After I found the GMC resin cab this went back in the box. I decided to put the body back together and assemble the kit. I will use an SS454 motor I got with some junk engines. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...
Grant Posted May 24, 2016 Share Posted May 24, 2016 Looks like fun! Quote Link to comment Share on other sites More sharing options...
landman Posted May 25, 2016 Author Share Posted May 25, 2016 Looks like fun! We'll see. Quote Link to comment Share on other sites More sharing options...

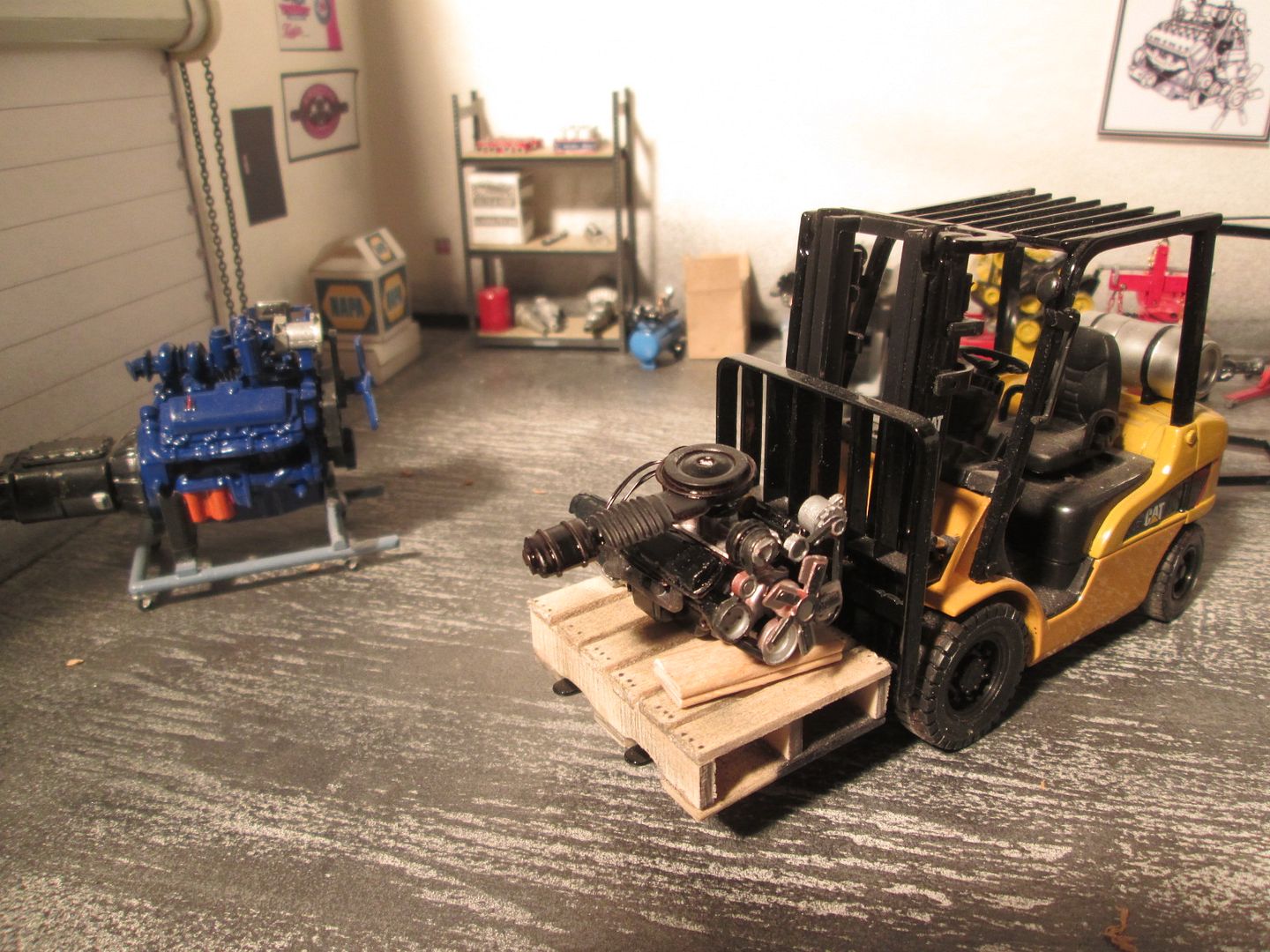

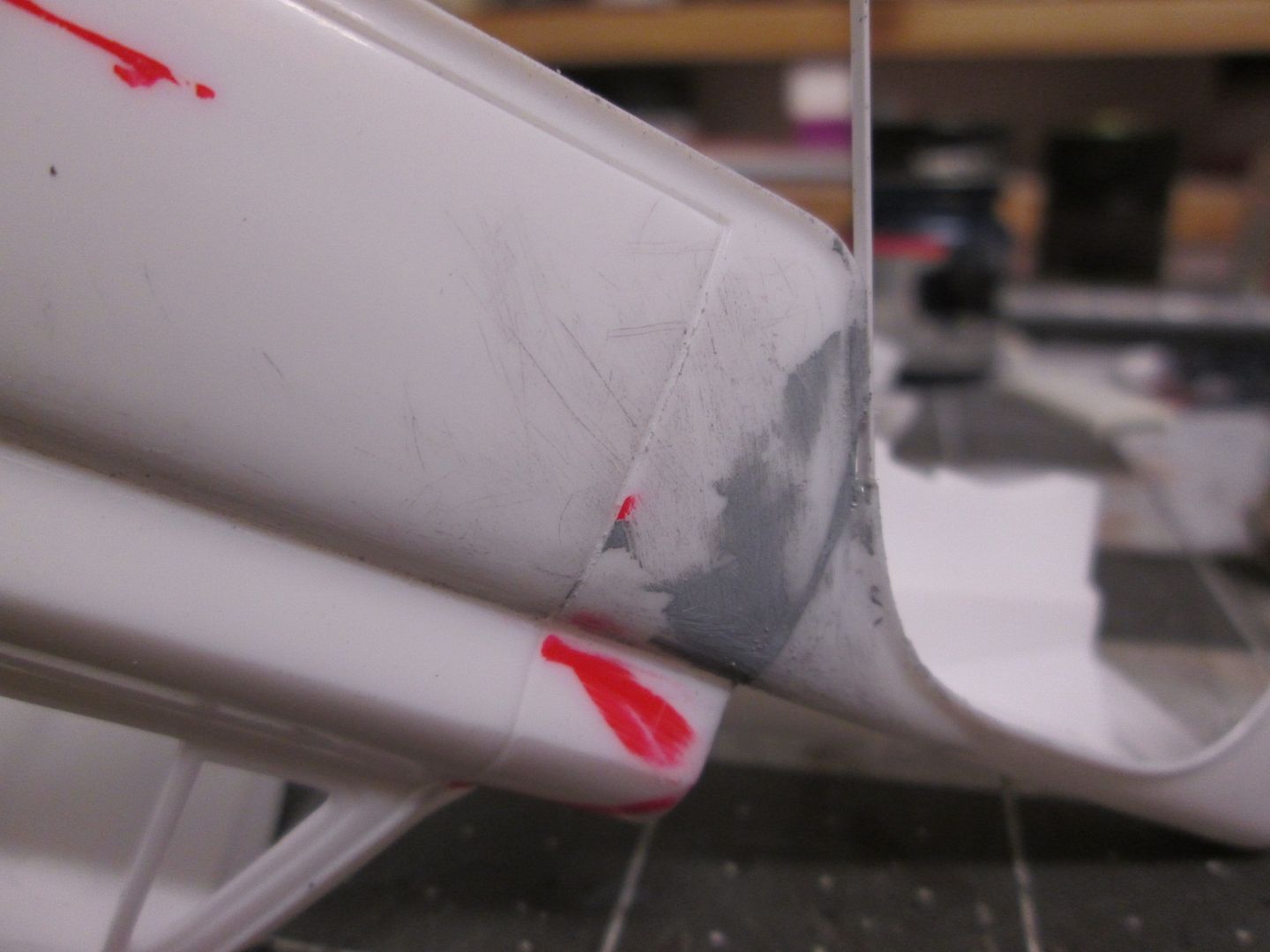

landman Posted June 2, 2016 Author Share Posted June 2, 2016 (edited) Body work is coming along. Having a bit of difficulty making that seam disappear. Started on the interior. Built the 283 anyway. It'll go in the engine display. A few touch ups and a fuel line and she's pretty well done. There is no fuel pump. I'll have to cobble one. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...
landman Posted June 2, 2016 Author Share Posted June 2, 2016 (edited) Received the 4X4 kit & the Good Year Trackers c/w six lug wheels. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...
landman Posted June 2, 2016 Author Share Posted June 2, 2016 (edited) And we have paint. Nice texture but awfully slow drying stuff. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...
landman Posted June 3, 2016 Author Share Posted June 3, 2016 (edited) Completed the 283. Made a transfer case sifter and a 4 speed shifter. I guess I'll have to change the tranny on the 454. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...

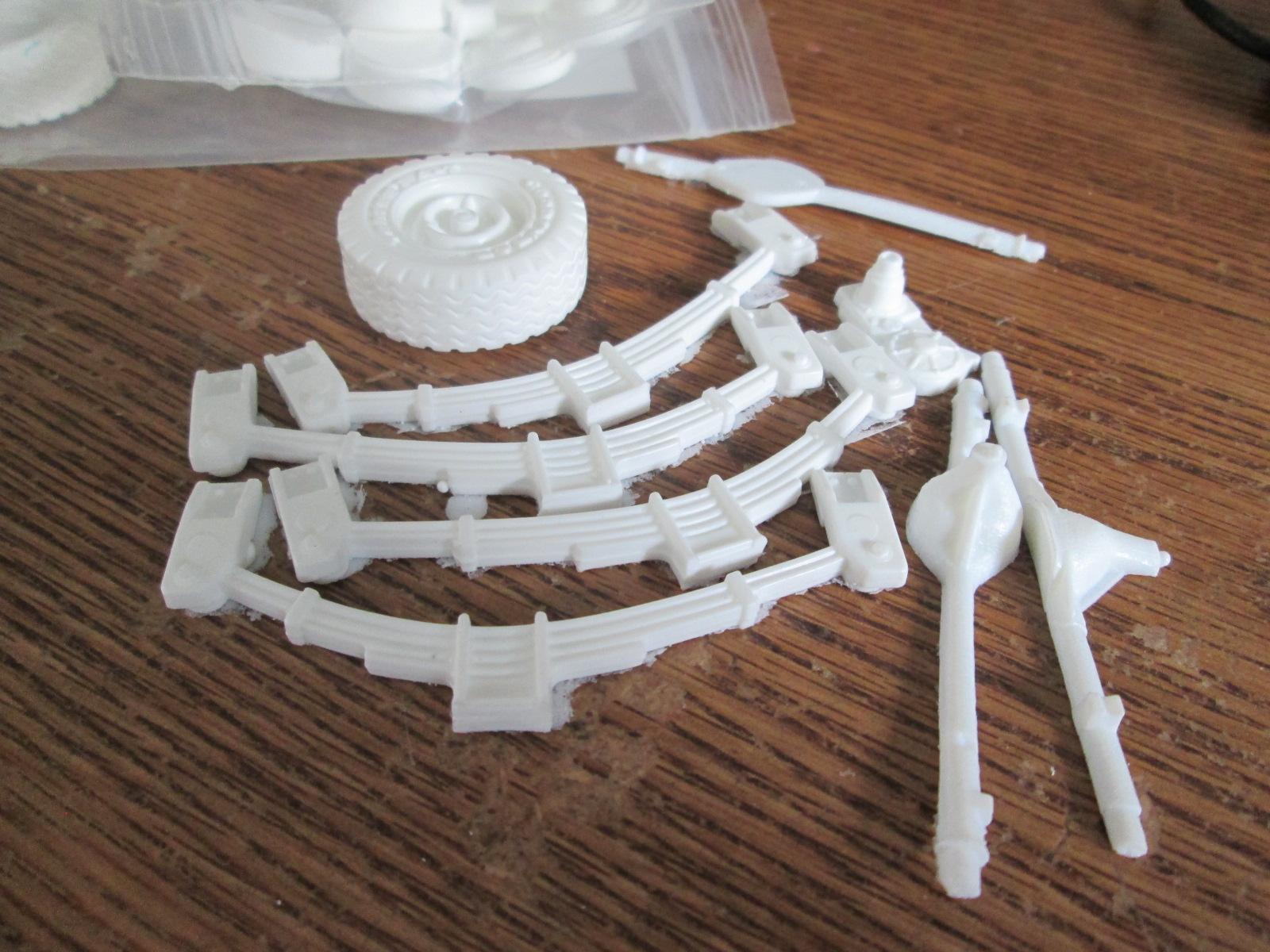

landman Posted June 3, 2016 Author Share Posted June 3, 2016 (edited) Dry fitted the kit's suspension to measure the width of tread and ride height. Mocked up the resin suspension to check the difference. Enormous. Much mods will be required to keep the wheels within the fenders and the ride height reasonable. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...
landman Posted June 4, 2016 Author Share Posted June 4, 2016 (edited) Modified the springs to bring the ride height down. Getting close. Here are the mods to the rears. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...

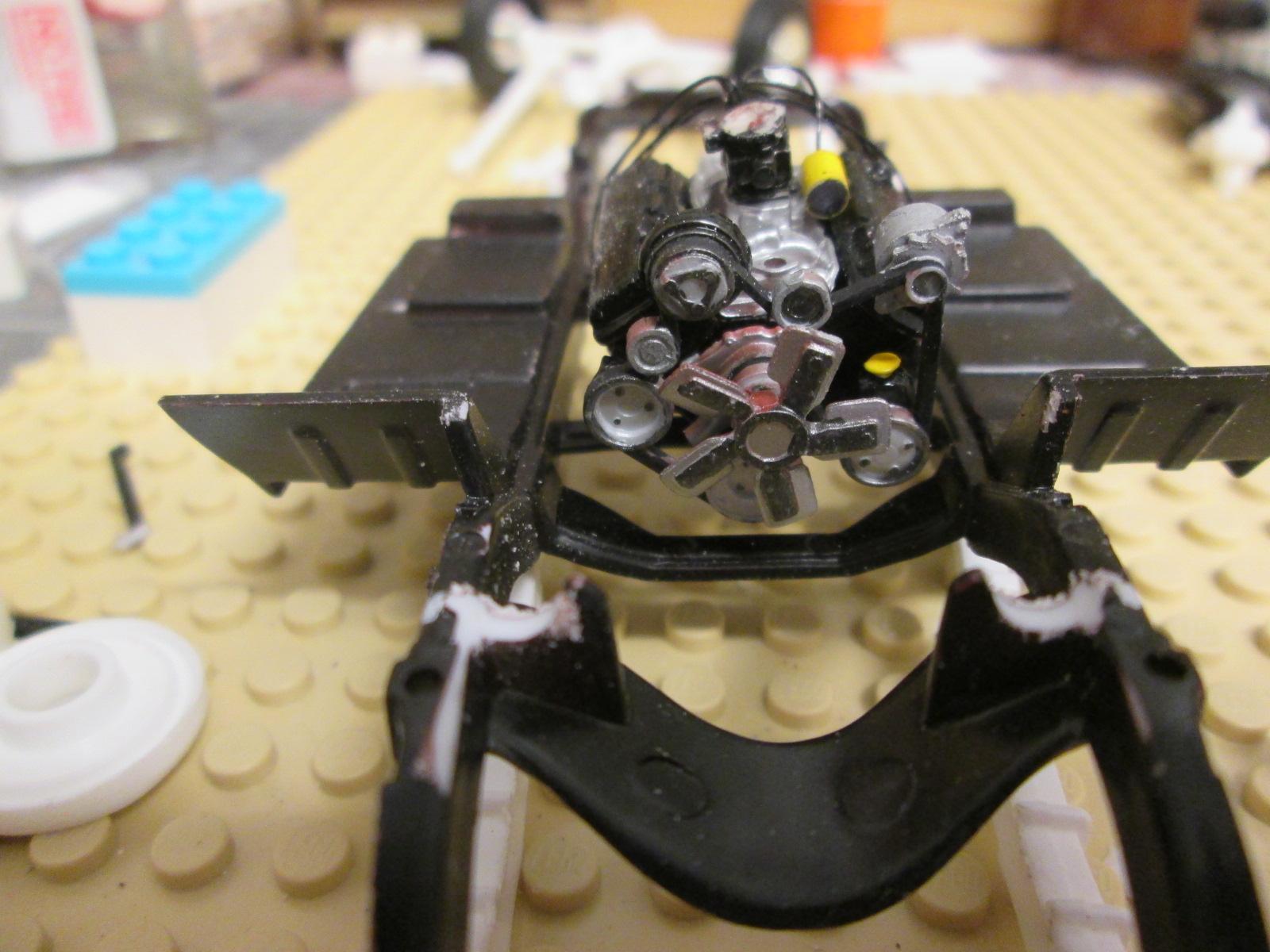

landman Posted June 5, 2016 Author Share Posted June 5, 2016 (edited) Tread width has been finalized. Had to play with the front differential offset to get it to sit within the springs. Installed the axles. Ride height will be OK. The front of the cab will go down when I open up the frame slots to clear the extra width of the spring support plates. Had to file notches in the motor mounts to clear the exhaust manifolds. Next step is to line up the transfer case. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...
landman Posted June 5, 2016 Author Share Posted June 5, 2016 (edited) Since the front differential in on a different plane than the transfer case, it will require an inclined driveshaft. Separated the yokes to achieve the "bend". Meanwhile found two other places of interference, thwo of the cross members will interfere with the front driveshaft and the bottom of the cab interferes with the top of the transfer case. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...
dieseldawg142 Posted June 5, 2016 Share Posted June 5, 2016 (edited) ...... Edited May 10, 2018 by dieseldawg142 Quote Link to comment Share on other sites More sharing options...
gatorincebu Posted June 5, 2016 Share Posted June 5, 2016 Pat, Looking forward to watching you work your majic on this project ! Be Well Gator Quote Link to comment Share on other sites More sharing options...
landman Posted June 5, 2016 Author Share Posted June 5, 2016 I don't know about magic Marc, it is more involved than I anticipated. On second thought, magic may well be required. Quote Link to comment Share on other sites More sharing options...
landman Posted June 6, 2016 Author Share Posted June 6, 2016 (edited) Made up the two driveshafts. Tweaked the transfer case to gain cab floor clearance. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...
landman Posted June 7, 2016 Author Share Posted June 7, 2016 (edited) Chassis coming along. Close up photography is the best way of seeing where you missed. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...
High octane Posted June 7, 2016 Share Posted June 7, 2016 That "bowtie" build is lookin' REAL good Pat. Quote Link to comment Share on other sites More sharing options...
slusher Posted June 7, 2016 Share Posted June 7, 2016 Looking great Pat. I really enjoy seeing your shop also. What scale is your fork lift???? Quote Link to comment Share on other sites More sharing options...
microwheel Posted June 7, 2016 Share Posted June 7, 2016 Very nice conversion on your 65. I agree with Carl, your diorama shop makes for a cool background for it. Quote Link to comment Share on other sites More sharing options...
landman Posted June 7, 2016 Author Share Posted June 7, 2016 Looking great Pat. I really enjoy seeing your shop also. What scale is your fork lift????Carl, it is 1:25. I got it on eBay or Amazon, one of them. Quote Link to comment Share on other sites More sharing options...
landman Posted June 8, 2016 Author Share Posted June 8, 2016 (edited) Started painting details on the dash, hood, etc. Found some shock absorbers. the singles are from the bin, the doubles from a NASCAR racer. Tried my hand at woodgraining. Rather pukey if you ask me. Edited December 26, 2020 by landman Quote Link to comment Share on other sites More sharing options...
slusher Posted June 8, 2016 Share Posted June 8, 2016 Slick paint finish, love the color... Quote Link to comment Share on other sites More sharing options...
gatorincebu Posted June 8, 2016 Share Posted June 8, 2016 Pat, Every thing is looking really good.! I really like the moderate ride height > I like that . Be Well Gator Quote Link to comment Share on other sites More sharing options...
landman Posted June 8, 2016 Author Share Posted June 8, 2016 Pat, Every thing is looking really good.! I really like the moderate ride height > I like that . Be Well GatorIt may wind up being a tad higher than anticipated as I had to rise the rear to correct a "hind down" appearance. But it shouldn't end up looking like a monster truck. Quote Link to comment Share on other sites More sharing options...
gatorincebu Posted June 9, 2016 Share Posted June 9, 2016 It may wind up being a tad higher than anticipated as I had to rise the rear to correct a "hind down" appearance. But it shouldn't end up looking like a monster truck. Pat, I expected you would catch that and correct it . And I doubt that little bit will alter my opinion. Seriously i like a truck with a more practical and realistic ride height for evryday use on , say highway driving to , unimproved roads to no roads . The kind of driving you might experience if you were working in construction .And driving your truck on site . Say on a highway job. What I am really trying to say is. While I understand the whole jack em up to the skye for mud bogging or whatever. I like 4x4's and a truck that has a more moderate ride height. Be Well Gator Quote Link to comment Share on other sites More sharing options...
