1958 Plymouth 318 Poly Head 3D printed engine-------Finished! 7/13/17

[MrObsessive]

First, I want to give many thanks to Doug Craig who asked me to build up the test shot of this engine! I feel flattered that he asked, and I've been eager to get something that's much better in appearance than what the AMT kit gives you. There will be some changes made to the final product before Doug lets this loose for you guys to gobble up!  Please keep in mind that I'm no Mopar expert, and what I'll build here won't be absolutely spic and and span perfect.

Of course, like I do with anything I build, I'm treating this just as if it were a kit in itself which it certainly is! So follow along with me, as you'll see what I've got done so far.

The following are a few of the parts that'll be in the kit. These are the poly heads which were unique to this particular engine. The heads in the AMT '58 Belvedere kit don't even come close to having the right shape.

Engine block.............

Oil pan and intake manifold. The oil pan I'd eventually strip the silver paint off and clean up the "graininess" of the surface a bit.

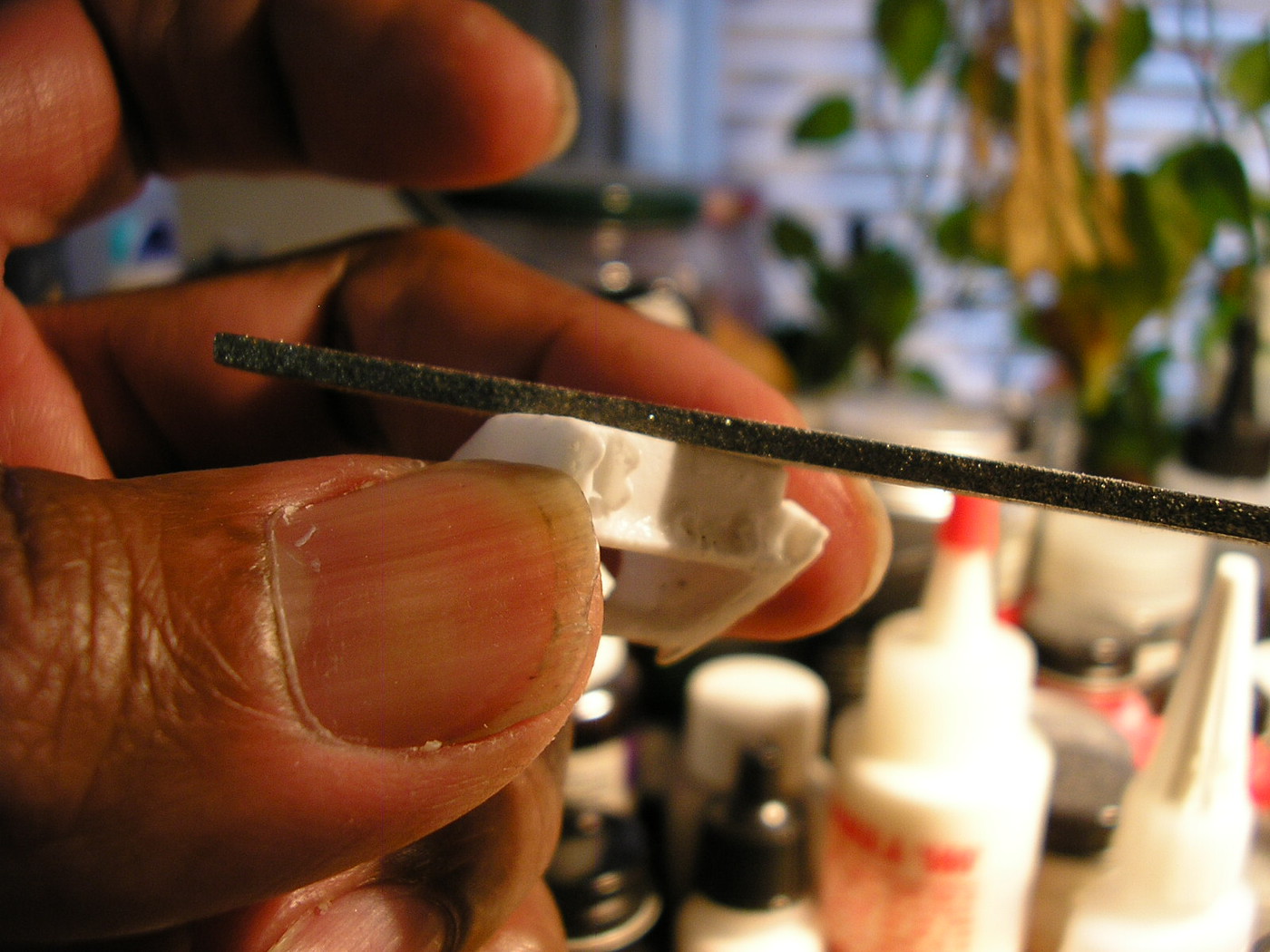

The heads didn't quite lay flat on the block, so some filing is in order.........

OK, that's much better! I'm using 5 min. epoxy to set everything together.

Here's the water pump........

I drilled a hole in the top of the water pump for the coolant inlet in the intake manifold.

A preliminary fit of the inlet..........not quite right in position on the manifold.......I've since re-drilled a new location for the inlet.

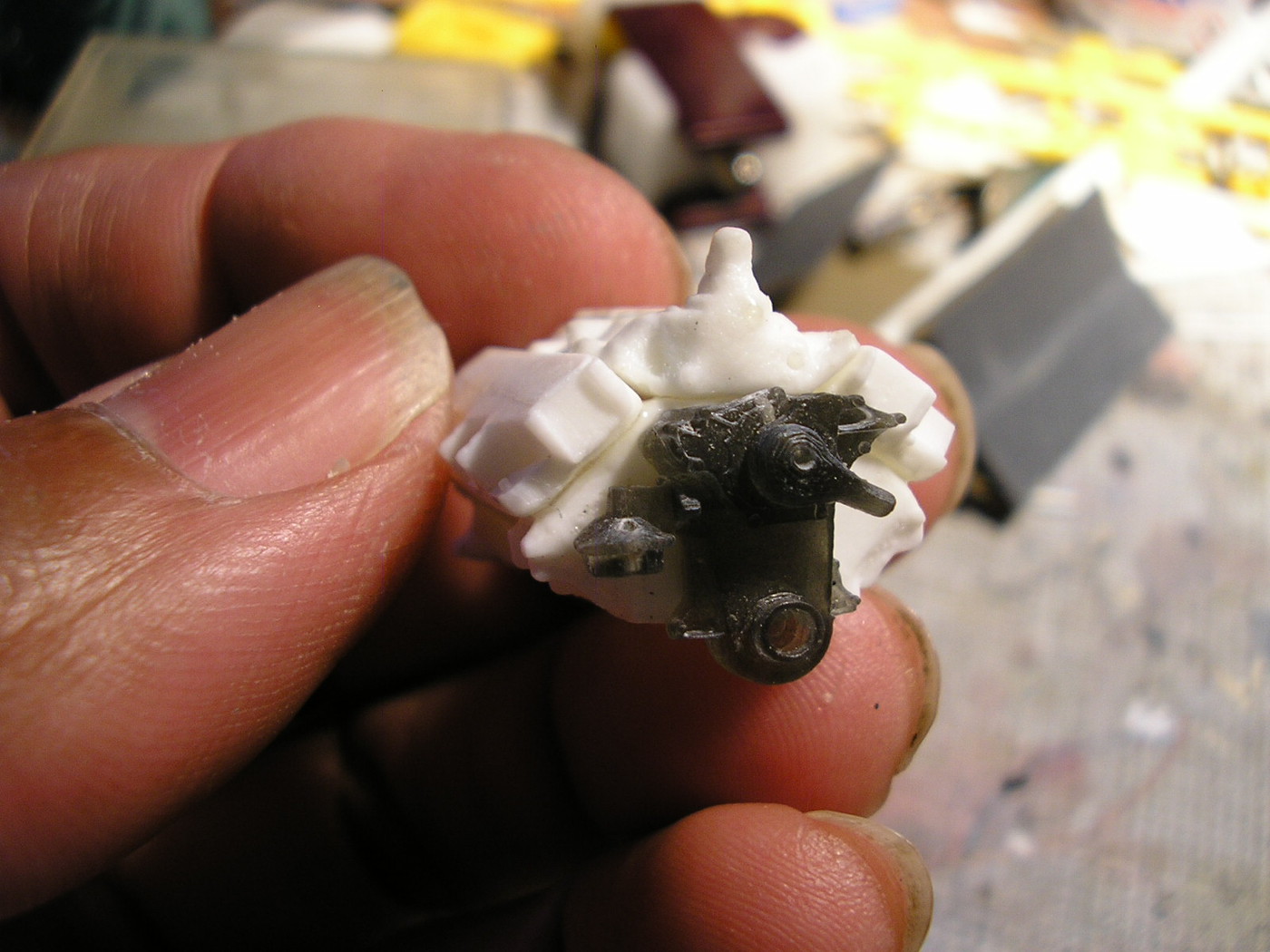

The water pump now epoxied on.

Oil pan now stripped and cleaned up, and now epoxied on the block. While I was at it, I drilled a couple holes in the fuel pump for the gas lines.

My engine when it eventually goes into the '58 Plymouth Fury I have planned, I want to be fully wired and plumbed. Here I drilled a provision for the distributor.

This is Norm Veber's offering and it's worth the trouble to me to wire it accordingly...........proper firing order and all!

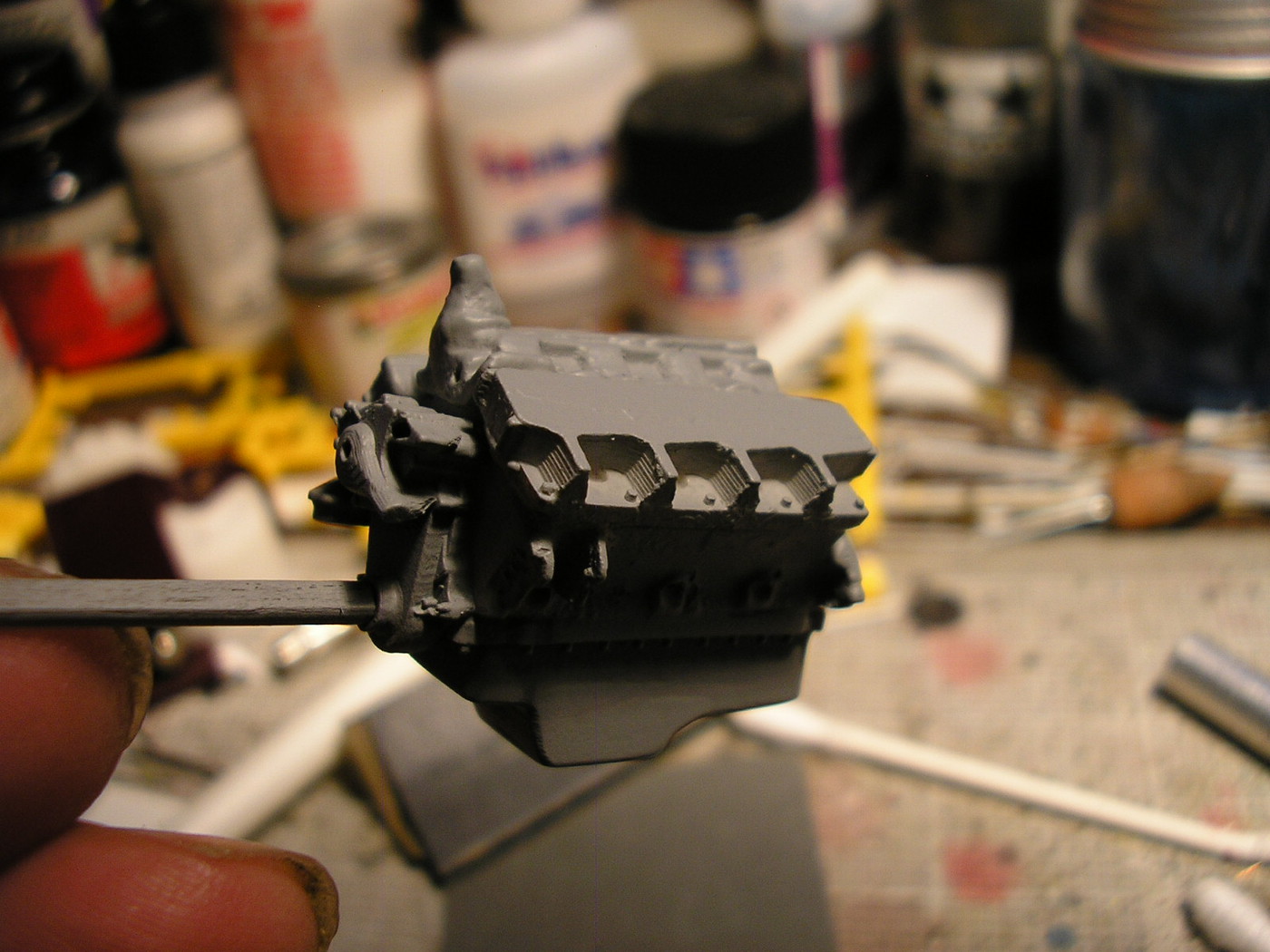

OK, I went ahead and primered the whole works with Plastikote T-235 Gray.

One thing I forgot to do is to make a provision for the generator bracket. I can always add this later as I'll need to see exactly where it'll place on the engine once I get the pulleys and whatnot attached.

That's all I have for now. I'm going to next paint the block silver, then set it aside. While that's fully curing, I'll get started on cleaning up the valve covers, carbs and air cleaner. The valve covers and air cleaner will be painted gold for my example per the 1:1 '58 Plymouth Fury.

One question I do have is this.........the transmission in the '58 Belvedere kit-----is that at least a reasonable facsimile of what it should be? Or do I have to look elsewhere for a proper tranny for that too?

Thanks for following along guys......hopefully I'll have more to add tomorrow and certainly during the upcoming week!

Edited July 13, 2017 by MrObsessive

[my66s55]

Bill, the 58 Plymouth trans is a representative of the torque flight A488. The 57 Chrysler is a better one, but it's more a situation of what's at hand.

Edited June 26, 2017 by my66s55

[Slotto]

Amazing detail! Love it

[superbike-shaun]

Wow,Bill, every time I hear the statement treat every part as a model in itself. I get building and trying to get every thing done,without regard about the finished product! Thank you! Also,thank you for sharing this collaboration i feel as though this is going to be somthing that will appeal to Alot of older builderss in search of authenticity!

[1972coronet]

Bill, the 58 Plymouth trans is a representative of the torque flight A488. The 57 Chrysler is a better one, but it's more a situation of what's at hand.

I second this ! The A-488 (and its 2-speed relative , the A-466 PowerFlite) is cast iron ; aluminimum didn't come along until 1962 (when the trans was assigned a new number , A-727 ; the A-904 was aluminimum from 1960-on) .

Quite looking forward to watching this A-engine come together , Bill !

[MrObsessive]

I went ahead and painted the engine block silver, and while that was drying and set aside, I decided to get started on the carburetors. As you all know I can't leave well enough alone and like to add my own small little details to bring things more to "life".

In this case, I want to add linkage detail,  and as you can see here, I added a very tiny PE piece for the linkage actuator for the secondary carb. There's a tiny plastic spacer behind the PE piece so that it'll be a bit more lined up with the other linkage.

That's a 0.8mm rivet holding things in place..............

I covered the bottom portion the block with Parafilm. This will be handled many, many times before it's all done, and I don't want paint wearing away particularly in visible areas........drives me crazy! With the work on the carbs and other things, handling of the block will be a constant throughout the build.

I did the same to the primary carb (the rearmost one) and added the same linkage as the secondary. The carbs for the time being are in mockup position........some shaving and sanding will be needed to get them to be a bit more even and parallel to each other.

Here in this pic the carbs are a bit more even as I did sand the bottoms a bit.

BTW, Doug printed the carbs in three sections just like the 1:1! There's lower middle and upper sections which gives the carbs a more 3D appearance as you can look down inside and see the throats of 'em.

After some fussing with various types of gold paint, I settled on some old Floquil Bright Gold for the valve covers and air cleaners. After I let them sit in the dehydrator overnight, I clearcoated them with Tamiya clear acrylic and once again set them in the dehydrator to sit overnight to COMPLETELY dry.

The insides of the air cleaners needed hogged out a bit so they sit on the carbs a bit better. I just used my variable speed Dremel Moto-Tool to do this.

OK, a mockup of what you see here. I'm using white glue for the time being to get a sense of clearances for the eventual placement in the '58 Fury.

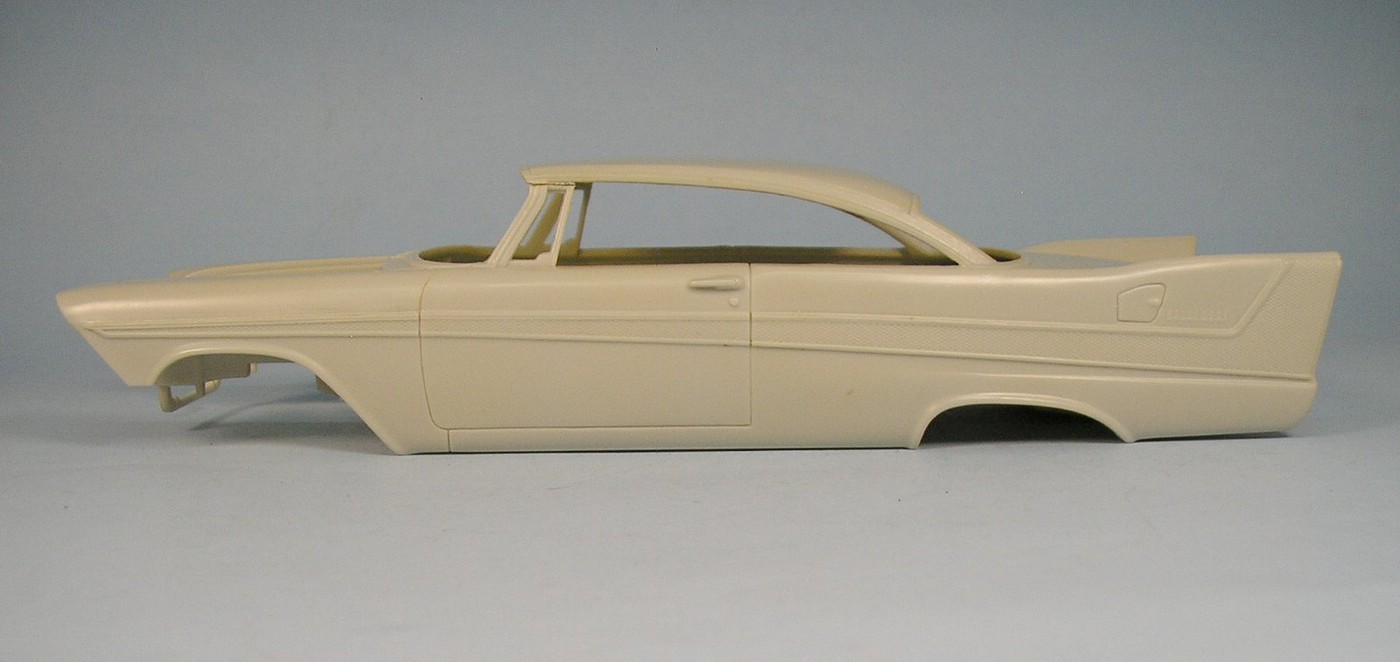

Just to be nosy, I got out the '58 Plymouth body just to see how it's going to look so far. I have to say, it's looking like I hoped it  would and much better than the lump RC2 gives you!

I can tell you that I'm going to have to play around with the motor mounts and certainly make sure the air cleaners fall below the hood/fender line so there's no problem with the hood opening and closing.

What's next on the agenda? I'll airbrush the carbs in somewhat of a platinum color, make a fuel filter, get the fuel lines in place, among other things. I don't go back to work till the 10th so hopefully I can even get this all done this week certainly before I go back to work next Monday!

Thanks for following along!

Edited July 3, 2017 by MrObsessive

[MrObsessive]

OK, I noticed that I have the valve covers on the wrong sides!

No worries though.............they're only attached with Elmer's White Glue so when the time comes, rest assured they'll be where they're supposed to be.

[blunc]

the carbs seem just a little bit too large.

maybe request they get scaled down one or two points and reprinted.

I'm guessing they are direct "scale" prints but fudging a bit may help the appearance and remove/reduce the need to change engine mounts.

[MrObsessive]

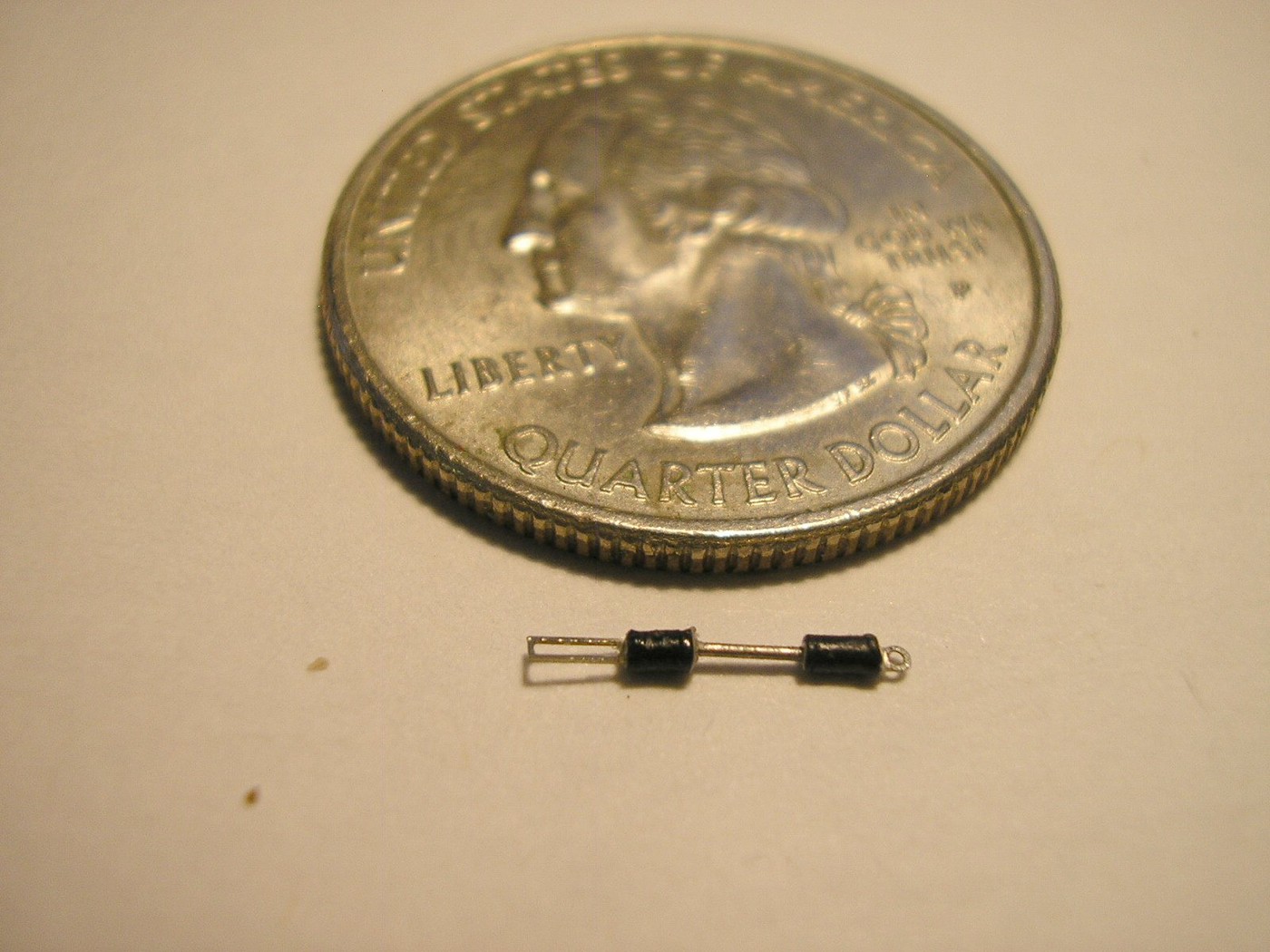

Time to start working on the carburetor linkage. I wanted to make the arm that connects the primary carb to the secondary one. As you can see by the quarter, this is a tiny, tiny piece! The slider part on the one end, is actually part of a PE seat belt buckle that was CA glued into the end of some wire insulation.

The other end is the PE bullet loop from a coil set...........the wire that hooks onto that.

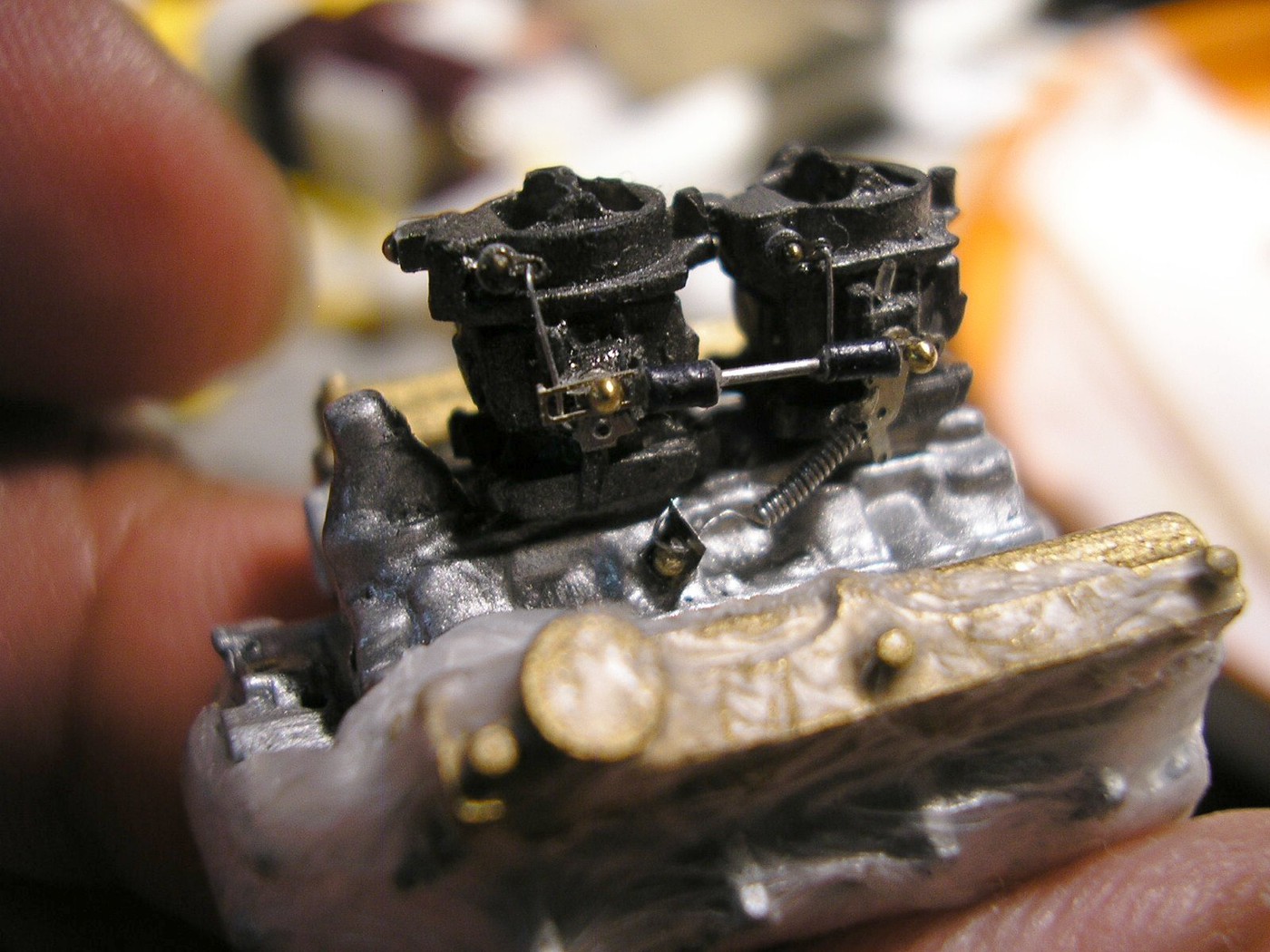

Here it is attached to the carbs...........it could have stood to be a little bit lower, but I didn't want to run the risk of separating the carbs (again!) by drilling in the wrong place, so I had to settle for this.

Also, it gives me some clearance for when I want to install a return spring as you'll see in a bit.  BTW, I painted the carbs Alclad Steel, and they came out a bit darker than I wanted. On the other hand, to my eyes it's a better contrast than having them nearly match the color of the block. Not so monochromatic looking!

Making a return spring. One of the things I can remember about judging is that if there were items that were just woefully out of scale, to me that takes away from the appearance of the part as a whole, and sometimes it might be better to leave things off if an in scale appearance can't be done. It's one of the reasons I don't wanna be a judge any longer..............people get mad.

As you see can here, I've taken shielding that can be found in coax cable and simply wrap a single strand of it around a #77 drill, but I also tried to hook the ends as this is a tension spring that's found on most carburetors of the era.

The retainer that holds the spring on the manifold I made out of a tiny piece of stainless steel sheet, and was drilled with the appropriate size drill bit. I think I used a #76 bit for this.

Here's the spring installed...........the throttle link on the primary carb is from an old Detail Master set I had laying around.

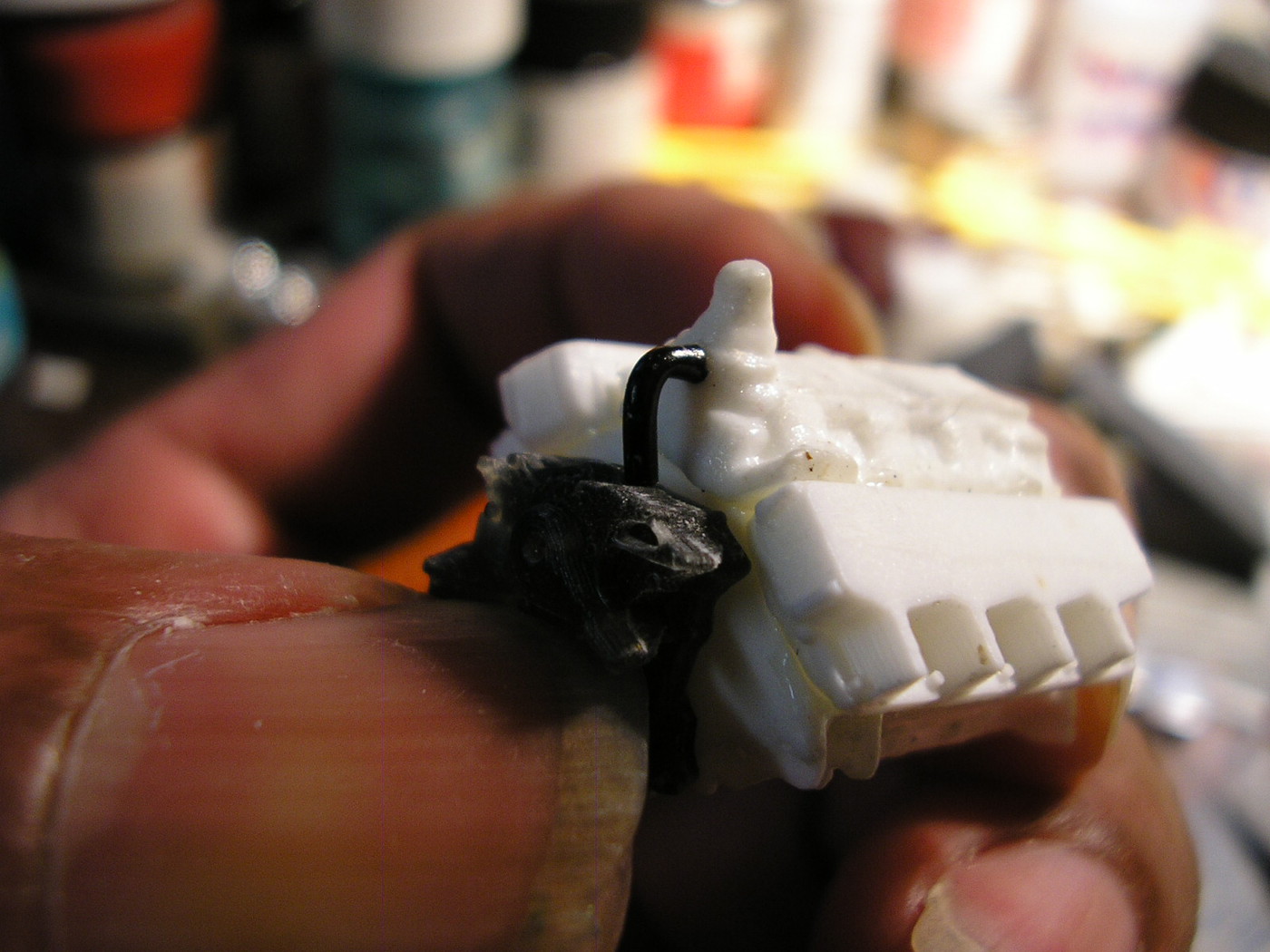

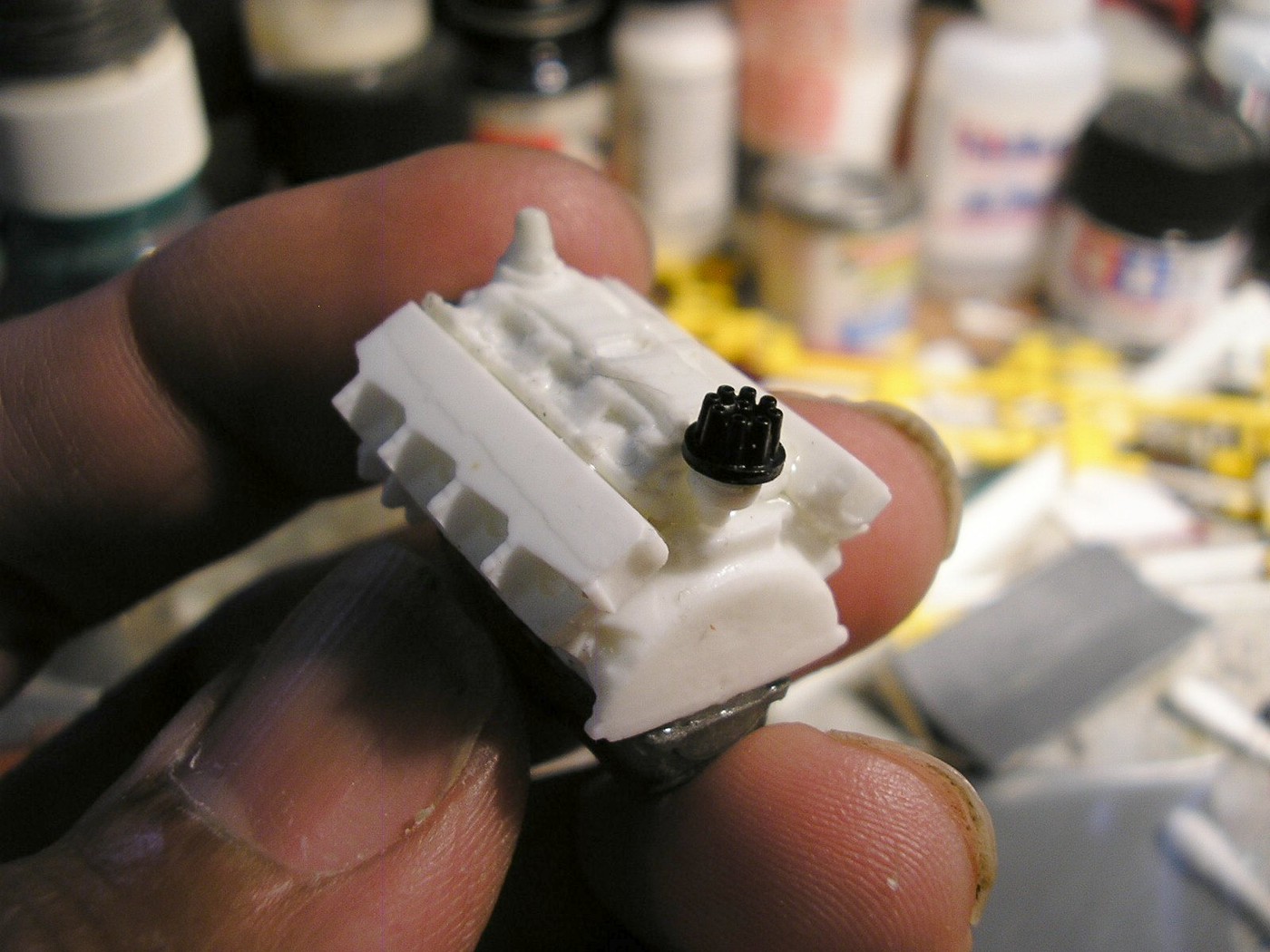

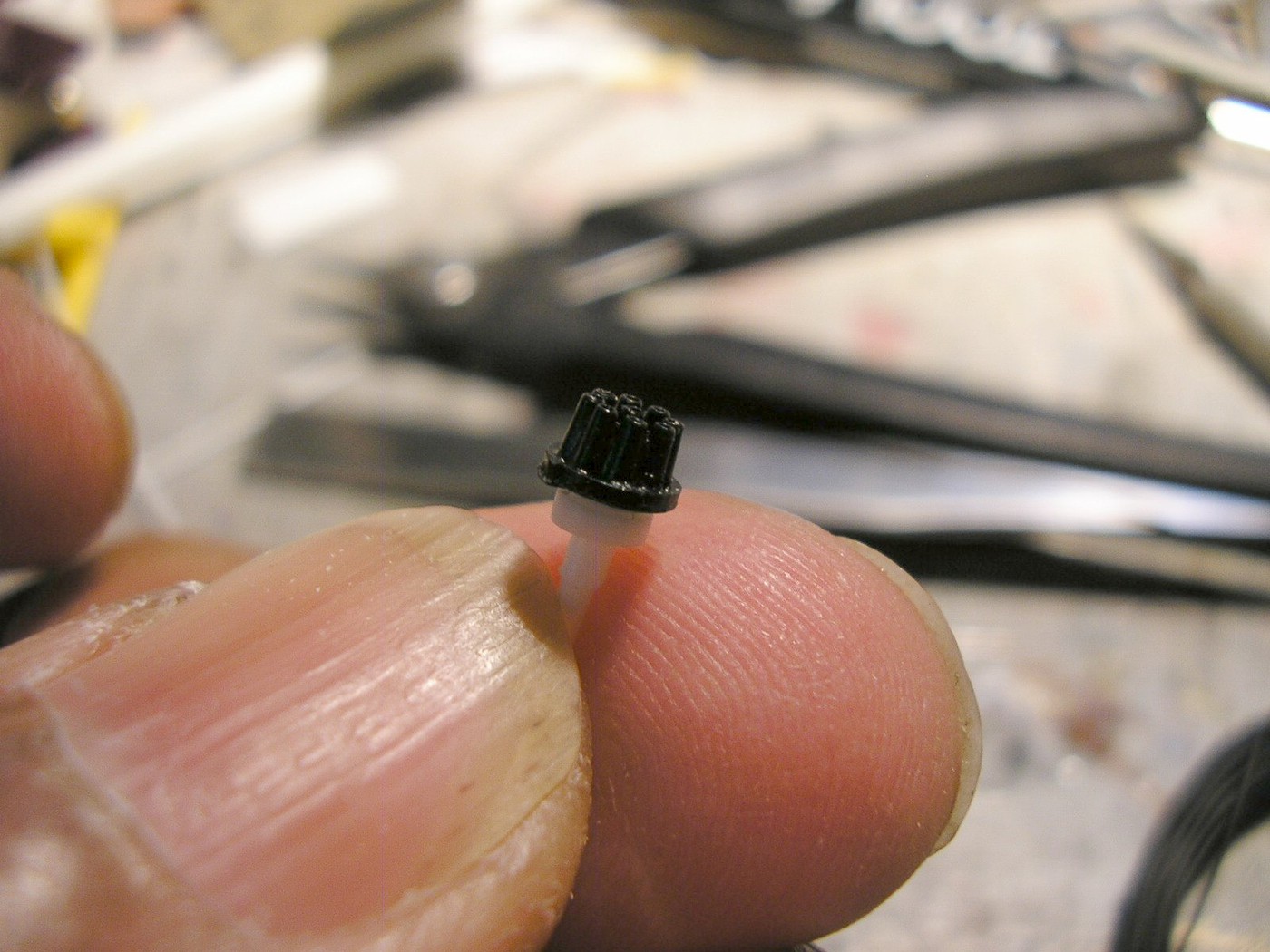

Now it's on to the distributor. I guess I'm a glutton for punishment as I'm one that would rather make my own distributor, or use one of Norm Veber's 8 cyl. distributor caps. I super glued this onto its base, and started to insert the wires one at a time with CA glue.

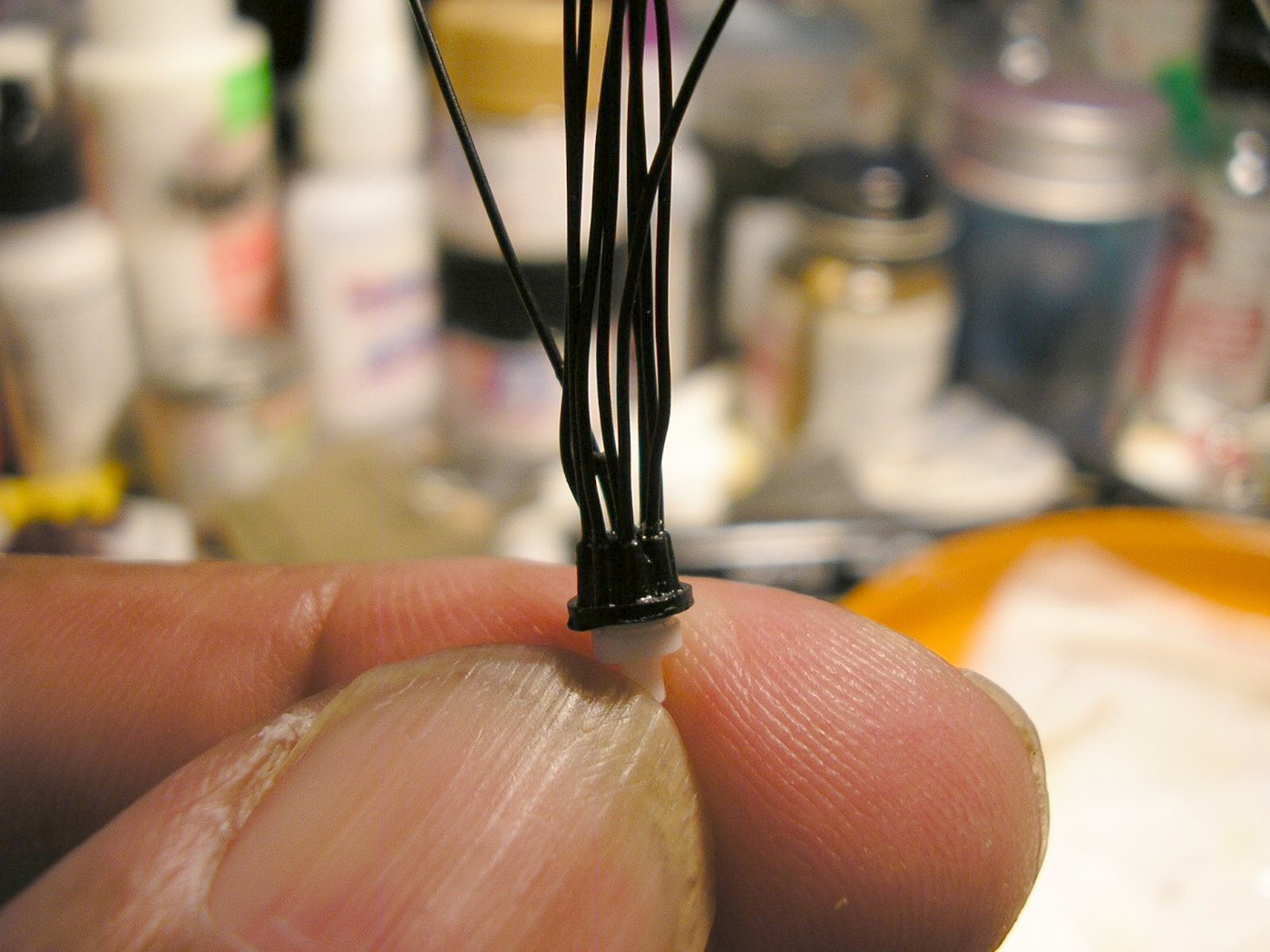

I wanted to make distributor boots for them..........I did this by cutting tiny pieces of wire insulation that would fit over the 30 gauge kynar wire. These were cut about 1/32" each.

Here they are all inserted in............

Next, spark plug end boots I wanted to make. These were cut roughly 1/8".

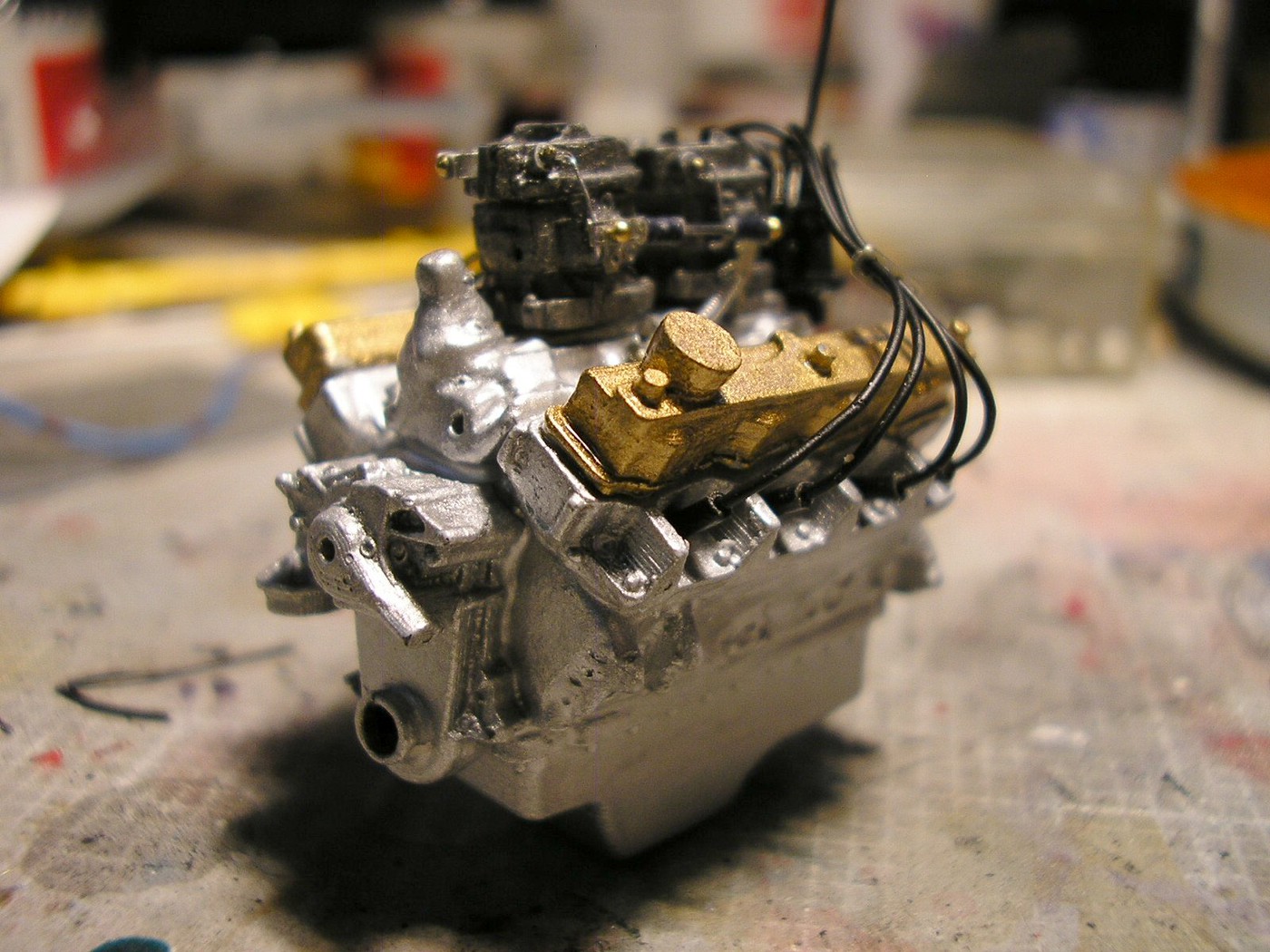

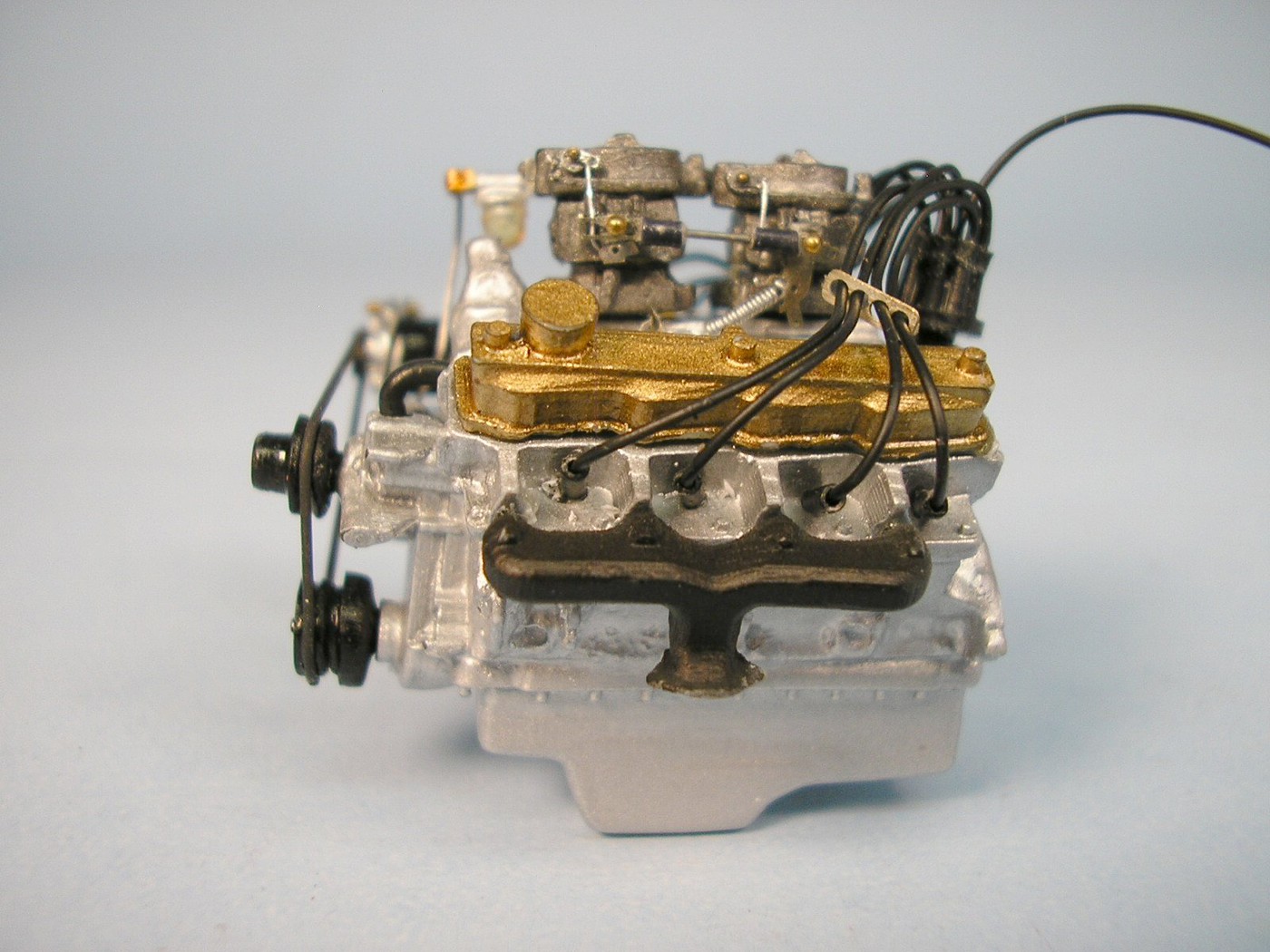

Here's the results of all the wires in now. I'll eventually make a coil which from pics I have of '58 318 Poly head engines, looks to mount on the intake manifold.

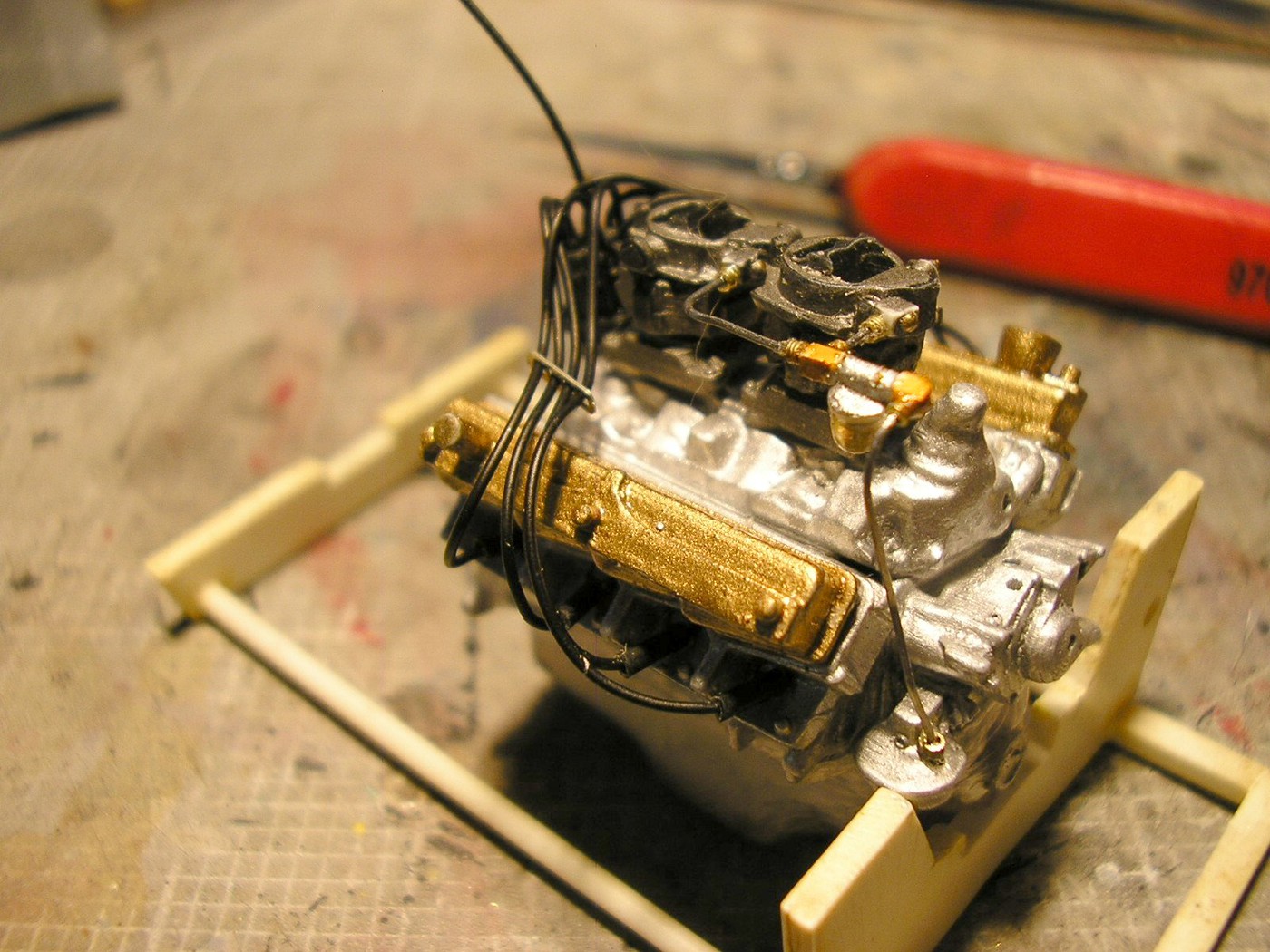

Now I can move on to making the fuel lines for the carbs and its fittings, and making the "clear bowl" type fuel filter which I'll make out of clear sprue.

Hopefully all done by this weekend-----------Thanks for tuning in!
