Jason Sheer Posted July 3, 2018 Posted July 3, 2018 I was thinking of building the Singer/ Williams Porsche too! The intakes built into the side glass is Awesome way to handle the volume of air to get into that beast !
Matt Bacon Posted July 3, 2018 Posted July 3, 2018 Looks like the Fujimi GT3R might get some way towards the front valance and splitter, and a diffuser for the rear, but it's a central exhaust... best, M.
afx Posted July 3, 2018 Author Posted July 3, 2018 (edited) 3 hours ago, Jason Sheer said: I was thinking of building the Singer/ Williams Porsche too! The intakes built into the side glass is Awesome way to handle the volume of air to get into that beast ! I have no plans to attempt the build Jason so it's all you. Edited July 3, 2018 by afx
afx Posted July 15, 2018 Author Posted July 15, 2018 (edited) Thanks Dann. The teams used a few different style wings. During the ’85 season the wing had a wider throat leading to the engine similar to the Turbo wing. “84 wing on the lefty, ’85 wing on the right. Edited July 15, 2018 by afx
afx Posted July 15, 2018 Author Posted July 15, 2018 (edited) I prefer to use the chassis and 1-pice suspension from the curbside kit. I like having the engine position locked in and the suspensions make setting up stance easier. I open the area around the engine then modify the Enthusiast kit parts to fit. This chassis was built in the same manor Edited July 15, 2018 by afx

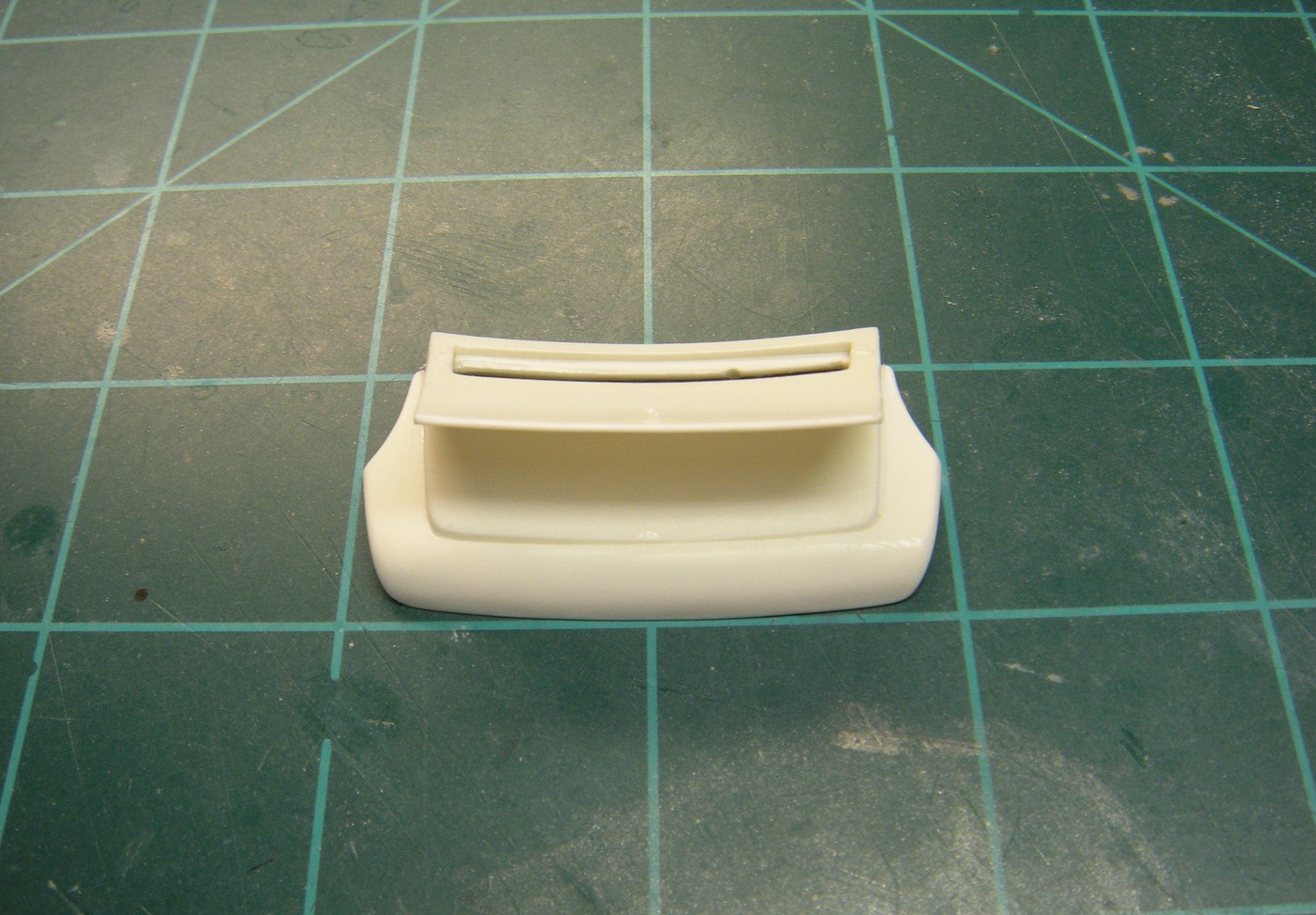

afx Posted July 28, 2018 Author Posted July 28, 2018 (edited) Reji offers a RSR wing designed to fit the Tamiya 934. With some work I was able to adapt it to the Fujimi '74 RS. Edited July 28, 2018 by afx
afx Posted July 29, 2018 Author Posted July 29, 2018 (edited) Happy to have you along Anders '84 mockup: 85 mockup: Filled and re-scribed the seam to tighten it up: Edited July 29, 2018 by afx
afx Posted July 30, 2018 Author Posted July 30, 2018 (edited) Thanks Trevor. Having the engine position locked in allows me to confirm clearance now. Had to adjust some things but happy with this. Fabricated a simple rear firewall which is not provided in the kit. Had to shim out the front hubs to get proper track width and accept the fat racing rubber. Fabricated simple rear hubs to accept the aftermarket wheels. Edited July 30, 2018 by afx
Dann Tier Posted July 31, 2018 Posted July 31, 2018 All this work is so worth it, and how you adapted the Enthusiast engine was brilliant!!…..I like to sit down and mock-up things.....looking at it in all angles, sometimes for days, before even starting the surgery...…..is that what you do as well?
afx Posted July 31, 2018 Author Posted July 31, 2018 (edited) Thanks Dann and yes lots of study goes into my builds - that's why they take so long! I also mockup and test fit ad nauseam. I like to build the kit completely or as close as I can get before I start painting. Edited July 31, 2018 by afx
Dann Tier Posted July 31, 2018 Posted July 31, 2018 2 hours ago, afx said: Thanks Dann and yes lots of study goes into my builds - that's why they take so long! I also mockup and test fit ad nauseam. I like to build the kit completely or as close as I can get before I start painting. Nice, JC, i'm doing that with my Isdera Imperator build......I want to make it an available resin kit.....if it keeps going good. I've never cast resin before though.
afx Posted July 31, 2018 Author Posted July 31, 2018 3 hours ago, Dann Tier said: Nice, JC, i'm doing that with my Isdera Imperator build......I want to make it an available resin kit.....if it keeps going good. I've never cast resin before though. I don't cast resin either but I know (2) very good casters you could talk to when you're ready.
afx Posted August 3, 2018 Author Posted August 3, 2018 (edited) This is why they need the skid plates. Edited August 6, 2018 by afx
Dann Tier Posted August 5, 2018 Posted August 5, 2018 Man Porsches rock!!, and you're doing'em proud as usual, JC!!!!

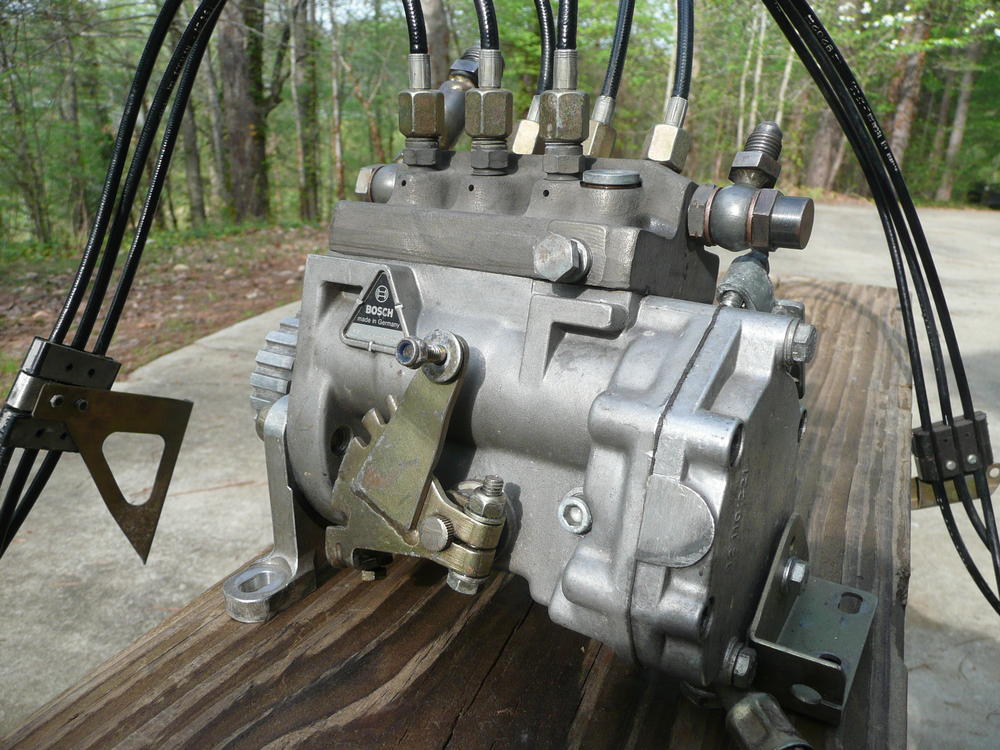

afx Posted August 5, 2018 Author Posted August 5, 2018 Thanks Dann. Modified the kit Bosch fuel injector pump to more closely resemble the unit used on the SCRS. The unit will be mostly obscured under the air cleaner so didn’t see the need to super detail it but it will be plumbed. For those that may be so inclined here is the 1:1. Most race cars ran twin plugs per cylinder and dual coils, yep (14) wires coming out of the distributor. Thankfully the SCRS ran only single plug/coil. The pre-drilled distributor is from R&M. Fabricated a retention ring for the air cleaner screen.
Jason Sheer Posted August 5, 2018 Posted August 5, 2018 Porsche’s look great!! Been wondering how to wire up my engine for my build ? I think I’m going to go for mid 70’s RSR set up, since I can’t find any accurate photos of how the Singer engines are wired and plugged together. Love your builds especially the steely wheels on the back of the rally build!

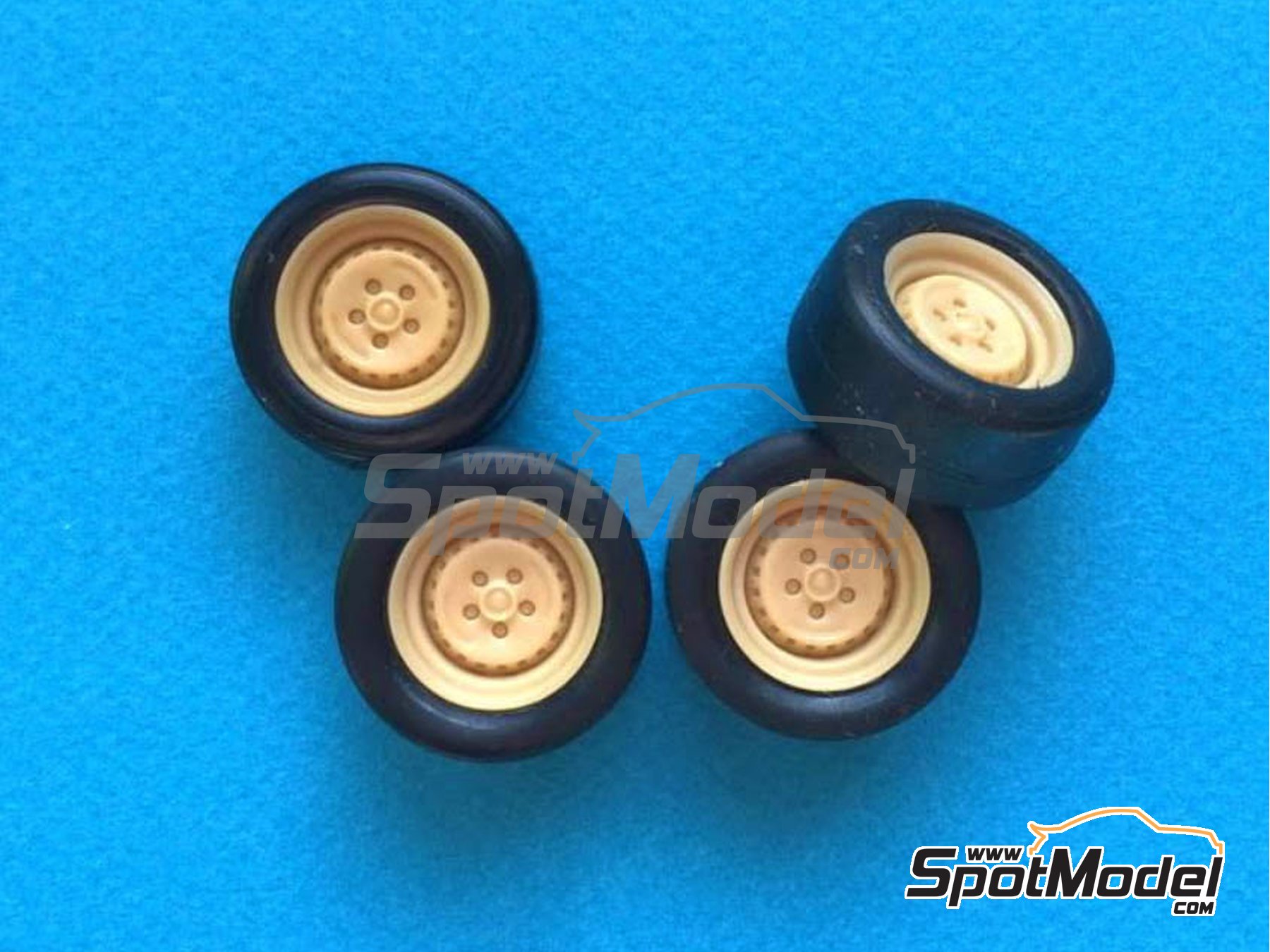

afx Posted August 6, 2018 Author Posted August 6, 2018 (edited) 13 hours ago, Jason Sheer said: Porsche’s look great!! Been wondering how to wire up my engine for my build ? I think I’m going to go for mid 70’s RSR set up, since I can’t find any accurate photos of how the Singer engines are wired and plugged together. Love your builds especially the steely wheels on the back of the rally build! Thanks Jason. Singer use a Porsche 964 as a platform for their conversions. Google Porsche engine and/or Porsche wiring diagrams and you should find what you need. The rear wheels are Ronal Turbos from Renaissance. Edited August 6, 2018 by afx
Jason Sheer Posted August 6, 2018 Posted August 6, 2018 Nice ! Thanks for the info! Need to get some of those wheels!
