iBorg Posted July 22, 2019 Share Posted July 22, 2019 (edited) Logghe chassis were molded by several manufacturers. These include AMT (the rather poor one under their Vega/Gremlin and maybe the Funny Hugger 1). MPC with two or three versions, including the stage 1 under the Cougar and a stage 2 under the Judge and others and a third under the very rare Candies and Hughes Cuda. Revell with the hot mess under their Funny Hugger Camaro, Maverick and Mustang. Polar Light with their one size fits most chassis under Mustangs, Cuda and Chargers. Revell with the Chi Town Hustler and finally the Jo-Han chassis included with several funny cars such as their Hornet. With that list in mind, I'm trying to build an ACCURATE Dyno Don Cougar. I have samples of each of these. I'm curious as to which chassis the collected wisdom has as their choice of best. Edited July 22, 2019 by iBorg Quote Link to comment Share on other sites More sharing options...
John Pol Posted July 22, 2019 Share Posted July 22, 2019 I would pick the Johan Challenger kit myself to do the cougar Quote Link to comment Share on other sites More sharing options...
Snake45 Posted July 22, 2019 Share Posted July 22, 2019 8 hours ago, John Pol said: I would pick the Johan Challenger kit myself to do the cougar The JoHan Challenger chassis is much later than the Eliminator chassis. Completely different style. Which Dyno Don Cougar are you doing, the first or the second? I believe both used 1967 Logghe chassis. The first car was originally the STP Cougar, which was kitted at the time by MPC and has been reissued. The second Cougar was a rebodied Eliminator II '67 Cyclone. Both of these chassis were probably very similar in real life, being built by the same shop in the same year (though they were different colors). I don't know what chassis is in the latest Cougar Eliminator reissue, but if it's the same one in earlier Cougar FC reissues, it'll probably work fine with possibly some modifications to the roll bar. I think I'd just work with it. The JoHan chassis (Javelin, Olds 4-4-2) are quite nice, but it might be a challenge finding one that fits the Cougar body's wheelbase. I'll be following your project, as I'm planning to do one of these cars myself sometime. I'm probably gonna do the second one, and fit the chassis out to take both Cougar and Cyclone bodies. Quote Link to comment Share on other sites More sharing options...
afx Posted July 22, 2019 Share Posted July 22, 2019 1 Quote Link to comment Share on other sites More sharing options...
Snake45 Posted July 22, 2019 Share Posted July 22, 2019 13 hours ago, iBorg said: Polar Light with their one size fits most chassis under Mustangs, Cuda and Chargers. I've never built or even worked on one of those, but I just looked at some of them online and it looks like that would be a suitable starting point too. Quote Link to comment Share on other sites More sharing options...
magicmustang Posted July 22, 2019 Share Posted July 22, 2019 The one shown on the side of the box is the most accurate, but that's not the one inside the box. Inside is a stage I Logghe but Dyno was running a Stage II in late '67 and '68. The later MPC Stage II Logghe is correct but pricy and hard to find. The Polar Lights chassis in their Mustang FC kit is close. 1 Quote Link to comment Share on other sites More sharing options...

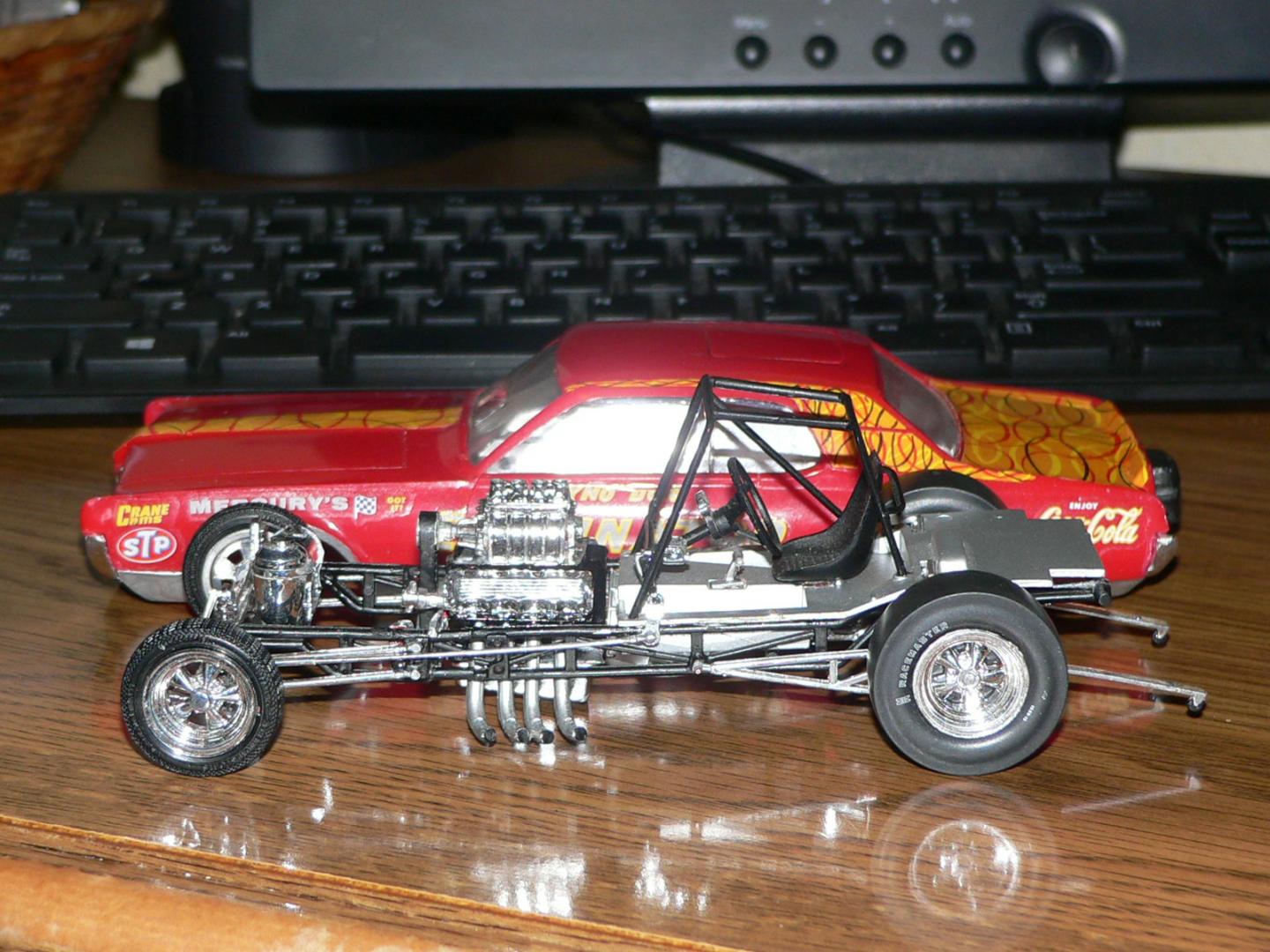

magicmustang Posted July 22, 2019 Share Posted July 22, 2019 (edited) 1 hour ago, magicmustang said: The one shown on the side of the box is the most accurate, but that's not the one inside the box. Inside is a stage I Logghe but Dyno was running a Stage II in late '67 and '68. The later MPC Stage II Logghe is correct but pricy and hard to find. The Polar Lights chassis in their Mustang FC kit is close. My old built MPC kit from the 70's with the correct Logghe chassis. Edited July 22, 2019 by magicmustang 1 Quote Link to comment Share on other sites More sharing options...
afx Posted July 22, 2019 Share Posted July 22, 2019 (edited) 2 hours ago, magicmustang said: The one shown on the side of the box is the most accurate, but that's not the one inside the box. Inside is a stage I Logghe but Dyno was running a Stage II in late '67 and '68. The later MPC Stage II Logghe is correct but pricy and hard to find. The Polar Lights chassis in their Mustang FC kit is close. Can you explain the differences between the Stage I and Stage II chassis? Edited July 22, 2019 by afx Quote Link to comment Share on other sites More sharing options...
magicmustang Posted July 22, 2019 Share Posted July 22, 2019 4 minutes ago, afx said: Can you explain the differences between the Stage I and Stage II chassis? The stage II has a different roll cage shape (thinner?), floorboard tin (footwells?) and the frame goes straight back from the rear axle mount verses curved down on the stage I. Quote Link to comment Share on other sites More sharing options...
magicmustang Posted July 22, 2019 Share Posted July 22, 2019 (edited) I think the Polar lights Mustang FC chassis and tin would serve you well. Correct roll cage, footwells in floorboard, and straight rear frame. Edited July 22, 2019 by magicmustang 1 Quote Link to comment Share on other sites More sharing options...
gtx6970 Posted July 22, 2019 Share Posted July 22, 2019 7 hours ago, Snake45 said: The JoHan chassis (Javelin, Olds 4-4-2) are quite nice, but it might be a challenge finding one that fits the Cougar body's wheelbase. I'll be following your project, as I'm planning to do one of these cars myself sometime. I'm probably gonna do the second one, and fit the chassis out to take both Cougar and Cyclone bodies. Now theres an idea I never thought about. Ive been wanting to build his Comet flopper using one of my extra AMT Comet kits . Might have to build one chassis and switch bodies from time to time Quote Link to comment Share on other sites More sharing options...

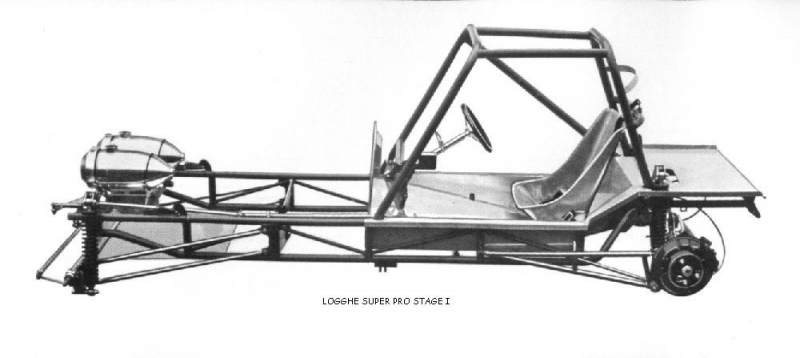

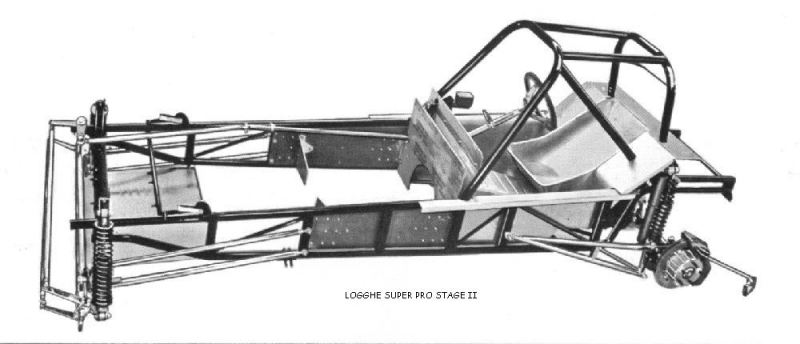

iBorg Posted July 22, 2019 Author Share Posted July 22, 2019 Thanks for the wisdom. So to summarize, the chassis in the MPC Cougar and Judge (since they're both obtainable) are Stage 1's. The PL chassis is a Stage 2 and the Revell Hawaiian is a Stage 3. A bit of reference: 1 Quote Link to comment Share on other sites More sharing options...
magicmustang Posted July 23, 2019 Share Posted July 23, 2019 I would say the chassis in the MPC Cougar and Judge are even "Pre" Stage I. Like your pics. Quote Link to comment Share on other sites More sharing options...
iBorg Posted July 23, 2019 Author Share Posted July 23, 2019 I'd agree. The roll cage is different although Logghe had three or four designs. The first Eliminator 1 had a roll cage that looked like an upright altered. The Eliminator II had a more full cage. Quote Link to comment Share on other sites More sharing options...
afx Posted July 23, 2019 Share Posted July 23, 2019 Just for information here is the Johan chassis from the Comet/Maverick F/C kit. Appears to be a Stage I. 1 Quote Link to comment Share on other sites More sharing options...
Chris in Berwyn Posted July 23, 2019 Share Posted July 23, 2019 Just FWIW the AMT Gas Ronda funny car has a Logghe chassis. Is it just a long version of the short Vega, Pinto, etc.chassis? Quote Link to comment Share on other sites More sharing options...
afx Posted July 23, 2019 Share Posted July 23, 2019 (edited) On 7/23/2019 at 11:25 AM, Chris in Berwyn said: Just FWIW the AMT Gas Ronda funny car has a Logghe chassis. Is it just a long version of the short Vega, Pinto, etc.chassis? Edited April 3, 2022 by afx 1 Quote Link to comment Share on other sites More sharing options...

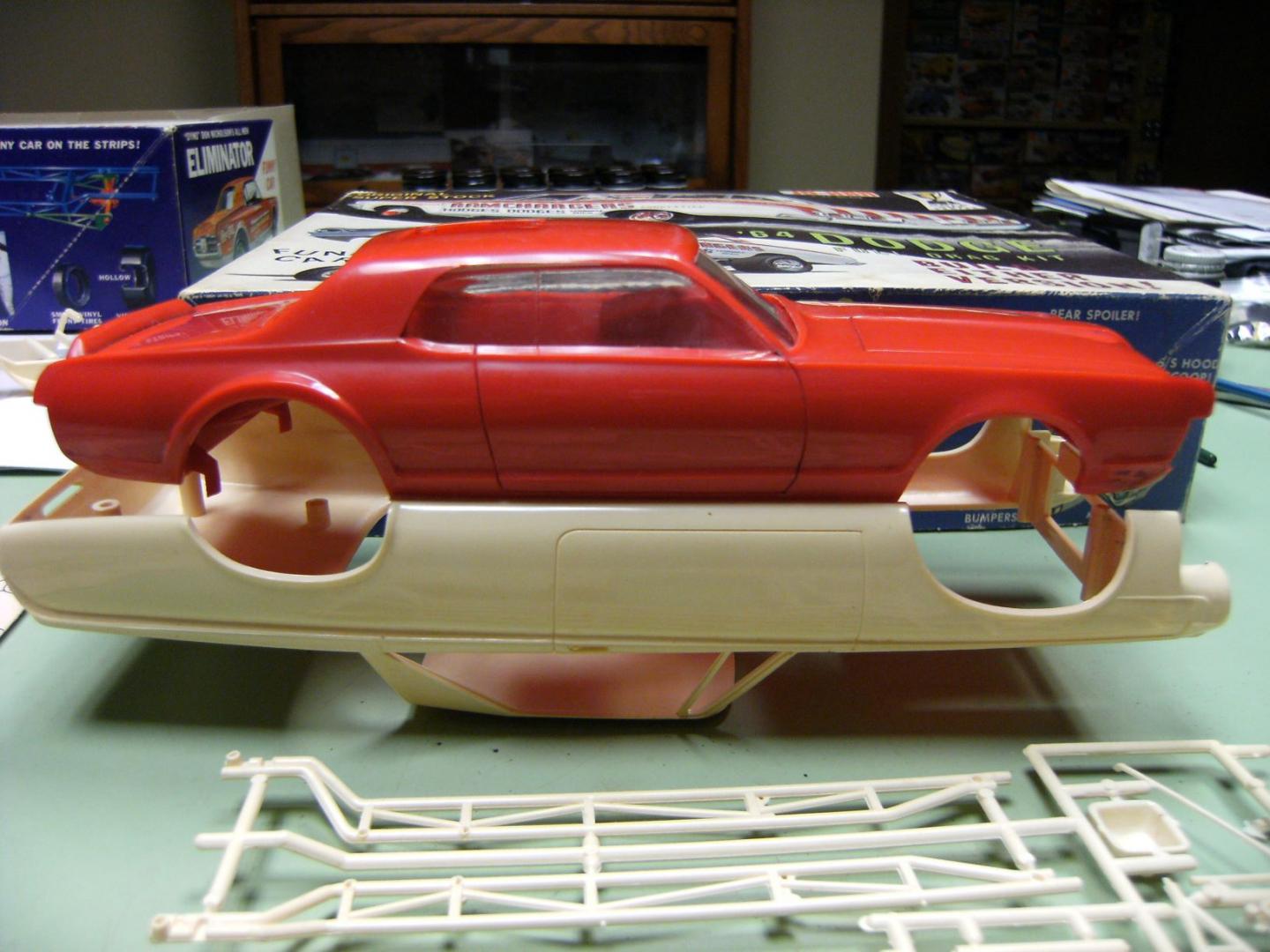

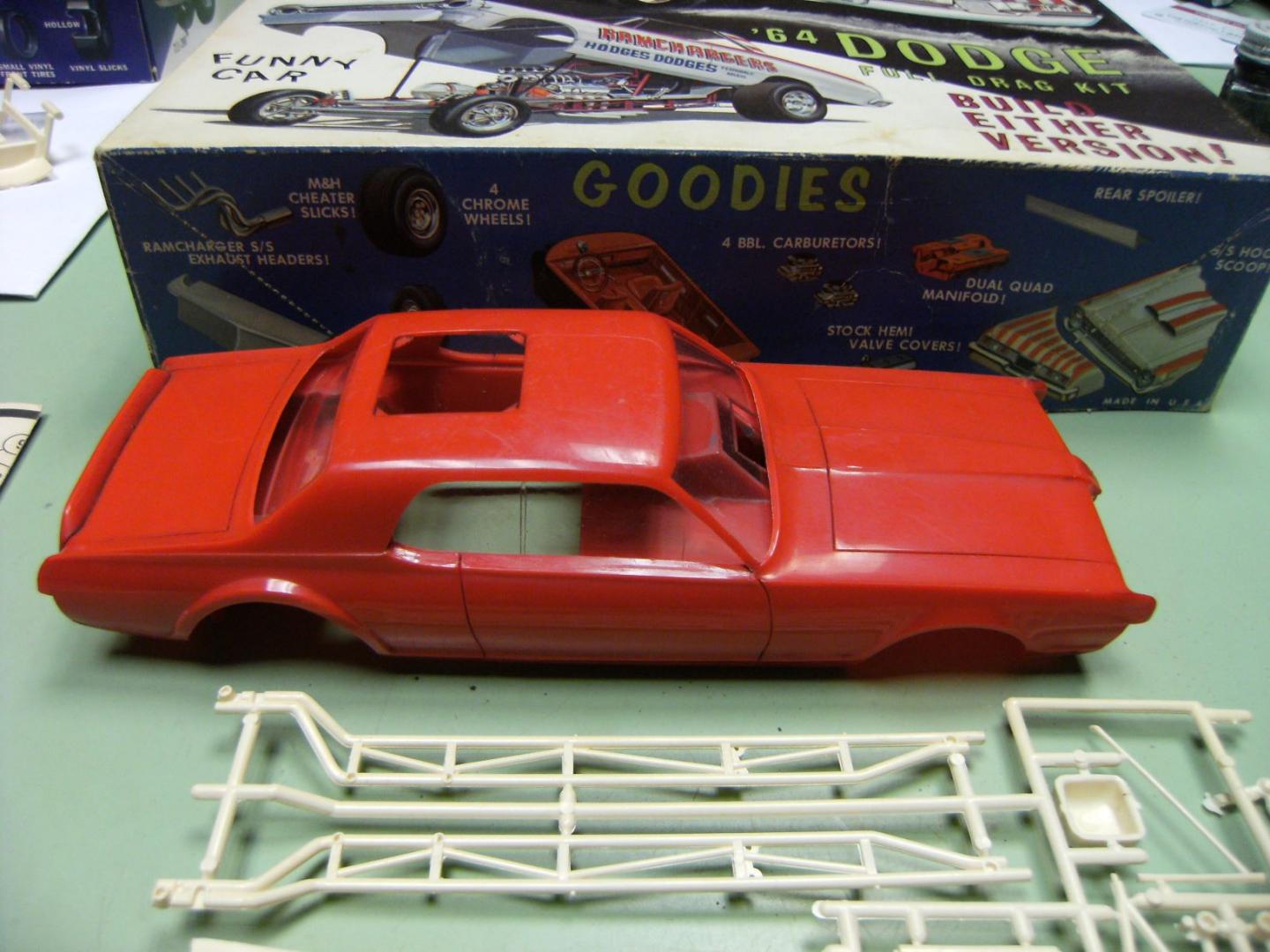

mvadrag Posted July 23, 2019 Share Posted July 23, 2019 Interesting discussion on Logghe chassis. May be hard to find, but the Johan funny car chassis for the 64 Dodge has about the same wheelbase. You would have to narrow the interior "tin" to fit, but looks doable. 1 Quote Link to comment Share on other sites More sharing options...

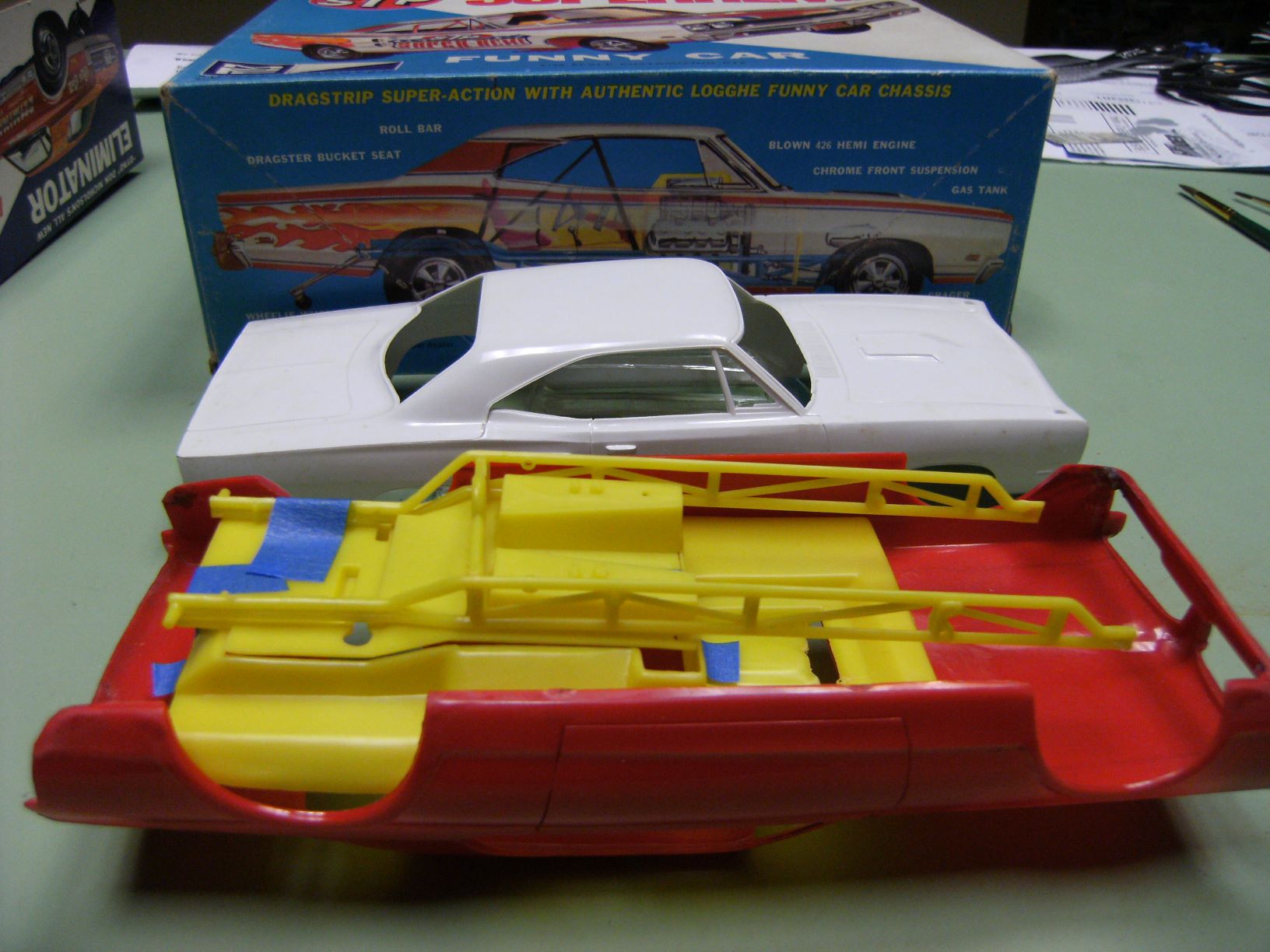

mvadrag Posted July 23, 2019 Share Posted July 23, 2019 (edited) Also, the MPC Super Hemi funny car (Dodge GTX?) has a Logghe stage II chassis and also has about the same wheelbase. Again, hard to find nowadays. I did a quick mock up, the "tin" would again have to be narrowed. One more comparison. Here are the Polar Lights, Johan, and MPC chassis with the location where the cross member for the rear suspension attaches lined up with the left edge of the scale. Johan frames also had a version that had longer tubes at the rear with tabs below for the body hinge. Edited July 24, 2019 by mvadrag More info. 1 Quote Link to comment Share on other sites More sharing options...
afx Posted April 4, 2022 Share Posted April 4, 2022 I'm no expert but it appears to me based on these photos that the different Stages are identifiable by the side rails and of course the roll cage. Stage I - shallow, parallel top/bottom rail, narrow width chassis Stage II - deeper, non-parallel top/bottom rail, wider chassis, long front radius rods Stage III - same (similar) rails as Stage II, short front radius rods 1 Quote Link to comment Share on other sites More sharing options...
afx Posted April 4, 2022 Share Posted April 4, 2022 Some related information here: Quote Link to comment Share on other sites More sharing options...
MADmodelDOCTOR Posted April 4, 2022 Share Posted April 4, 2022 I think the old mpc chassis would be nice to work with. I haven't seen one in a long time. Quote Link to comment Share on other sites More sharing options...
