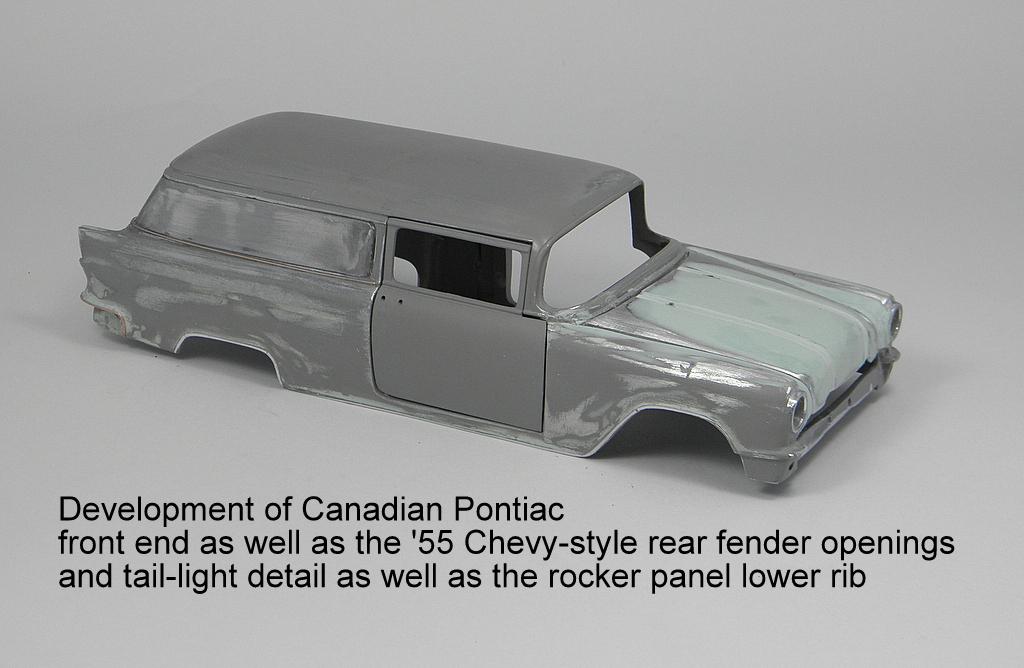

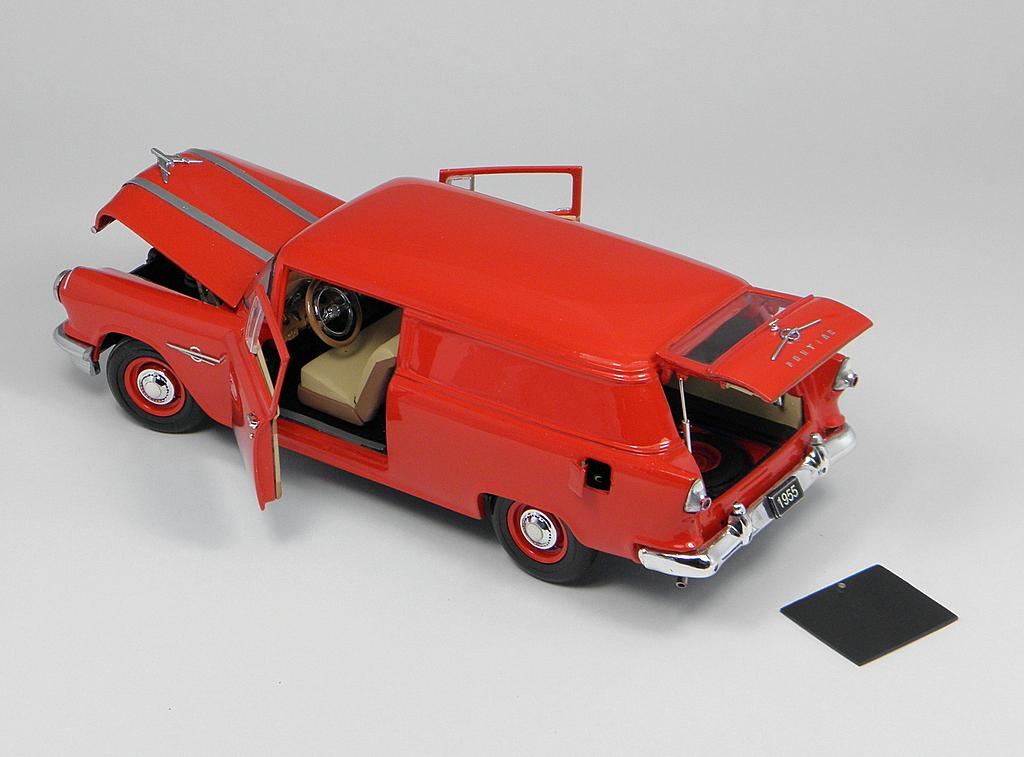

traditional Posted March 9, 2020 Share Posted March 9, 2020 I’ve just completed this stock ’55 Pontiac Pathfinder sedan delivery using a toy low-rider ’57 Chevy wagon as the main starting material, and the basic front trim and dash-board was in my parts bin from an FM American ’55 Pontiac on which the body had self-destructed from a bad batch of metal alloy All of Pontiac’s production sedan deliveries from ’54 until ’58 were built only in Oshawa, Ontario, and like the other Canadian Pontiacs at that time, were built on a Chevy platform. Compared to the American ’55 Pontiacs, the Canadian Pontiacs were shorter (Chevy chassis and drivetrains), and although they had similar front end trim, the shortened fenders had a different wheel opening shape, a shorter, taller, and narrower engine hood (to clear the higher available six cylinder motor) with a slightly more blunt nose. The front bumpers, while similar in appearance, had a shorter side length. This is the third detailed sedan delivery that I’ve built in the last three years, using similar techniques and although they’ve all been time consuming builds, at least the build plan was familiar, and most of the research had been done….in this case, I also had reference to an unrestored full size version which was somewhat rough, but I was able to photograph lots of details which had been questions on my mind. The main paint is Automotive basecoat/clearcoat to approximate Pontiac's Bolero Red Quote Link to comment Share on other sites More sharing options...
traditional Posted March 9, 2020 Author Share Posted March 9, 2020 (edited) Edited March 9, 2020 by traditional Quote Link to comment Share on other sites More sharing options...
Hard_2_Handle_454 Posted March 9, 2020 Share Posted March 9, 2020 ? Quote Link to comment Share on other sites More sharing options...
espo Posted March 9, 2020 Share Posted March 9, 2020 Beautiful looking build. I'm also glad you included some of your build pictures as it helps apricate all of the work that went into this model. I think you posted your build on the '57 Pontiac as I remember following that one. Interesting information on the 1:1 build back ground. In the mid sixties a friend of mine had a '54 Pontiac Sedan Delivery. As I recall it had the standard Pontiac flat head straight 6 and Hydromatic. He put a Cadillac engine out of a Cadillac Ambulance in its place. Quote Link to comment Share on other sites More sharing options...
Jim N Posted March 9, 2020 Share Posted March 9, 2020 Outstanding craftsmanship! Really great looking model. Quote Link to comment Share on other sites More sharing options...
'70 Grande Posted March 9, 2020 Share Posted March 9, 2020 Agreed; amazing craftsmanship! Simply stunning build! Quote Link to comment Share on other sites More sharing options...
grodudulle77 Posted March 9, 2020 Share Posted March 9, 2020 Awesome work, very clean and neat !!?? Quote Link to comment Share on other sites More sharing options...
Tom99 Posted March 9, 2020 Share Posted March 9, 2020 Great build! Quote Link to comment Share on other sites More sharing options...
Classicgas Posted March 10, 2020 Share Posted March 10, 2020 ?? Nuff said Quote Link to comment Share on other sites More sharing options...
bisc63 Posted March 10, 2020 Share Posted March 10, 2020 Great collection of deliveries! VERY nice work and care for details; really outstanding. Quote Link to comment Share on other sites More sharing options...
moparfarmer Posted March 10, 2020 Share Posted March 10, 2020 Unbelievable work..WOW a masterpiece..Living in Winnipeg I can appreciate the build..We had a guy who had a green/pale yellow 56..Show car..I love you SDs but like the 56 better because of the grill.. Quote Link to comment Share on other sites More sharing options...
Tom Louis Posted March 10, 2020 Share Posted March 10, 2020 Awesome! Great tutorial Quote Link to comment Share on other sites More sharing options...
G. Chapuis Posted March 10, 2020 Share Posted March 10, 2020 (edited) A very nice work and the result is really superb ? Gérard Edited March 10, 2020 by G. Chapuis Quote Link to comment Share on other sites More sharing options...
Phildaupho Posted March 11, 2020 Share Posted March 11, 2020 WOW - extraordinary. I have always been attracted to Canadian Pontiacs. There some very cool versions from the mid fifties to late sixties featuring all the great Chevrolet engines. My parents had a 53 Pontiac which shocked a mechanic in the states when it needed a new muffler and he discovered it was actually a Chevrolet under the skin. I also witnessed a street drag between a 65 Pontiac and a maybe Thunderbolt. The Pontiac had a least a hi-po small block if not a 396 and gave the Ford a good run. Quote Link to comment Share on other sites More sharing options...
PappyD340 Posted March 11, 2020 Share Posted March 11, 2020 Very nice! Quote Link to comment Share on other sites More sharing options...
peekay Posted March 11, 2020 Share Posted March 11, 2020 As always, outstanding craftsmanship and an awesome and unique result! Quote Link to comment Share on other sites More sharing options...
larman Posted March 11, 2020 Share Posted March 11, 2020 Another masterpiece. Art more so than model! Quote Link to comment Share on other sites More sharing options...
Nazz Posted March 11, 2020 Share Posted March 11, 2020 Great looking Pontiac, lots of work on this one! Quote Link to comment Share on other sites More sharing options...
W-409 Posted March 12, 2020 Share Posted March 12, 2020 Very nicely done Pontiac Sedan Delivery! I always enjoy seeing your models, they are always so nicely done and the build subjects are really interesting, too. Excellent job turning that '57 Chevy into a '55 Pontiac, if there was no project pictures or description, I'd probably have thought it was built from a resin kit. Very nicely done model...As always from your bench. Quote Link to comment Share on other sites More sharing options...
Geno Posted March 12, 2020 Share Posted March 12, 2020 Amazing as always Cliff. I always enjoy the pics but it's so much better seeing them in person.? Quote Link to comment Share on other sites More sharing options...
slusher Posted March 13, 2020 Share Posted March 13, 2020 Outstanding! Quote Link to comment Share on other sites More sharing options...
Smitty Posted March 25, 2020 Share Posted March 25, 2020 What a great looking trio of sedan deliveries Cliff! This latest addition is a very cool and a super clean build, especially considering the extensive changes you had to make to the source models. You've done a tremendous job creating a unique model that we'll never see as a kit. At one time vehicles like this were simply a 'part of the scenery', but are so rare today and really nice to see as a model. It's interesting to learn that GM tooled up separate sheet metal for a Pontiac to work with the Chevrolet platform intended for the Canadian market. Eric Quote Link to comment Share on other sites More sharing options...
RAMBENNA Posted March 25, 2020 Share Posted March 25, 2020 way cool, these are awesome builds great job Quote Link to comment Share on other sites More sharing options...
ChrisR Posted March 25, 2020 Share Posted March 25, 2020 Awesome! Quote Link to comment Share on other sites More sharing options...
1959scudetto Posted March 25, 2020 Share Posted March 25, 2020 9 hours ago, Smitty said: What a great looking trio of sedan deliveries Cliff! This latest addition is a very cool and a super clean build, especially considering the extensive changes you had to make to the source models. You've done a tremendous job creating a unique model that we'll never see as a kit. At one time vehicles like this were simply a 'part of the scenery', but are so rare today and really nice to see as a model. It's interesting to learn that GM tooled up separate sheet metal for a Pontiac to work with the Chevrolet platform intended for the Canadian market. Eric x 2 - simply mindblowing !!! Quote Link to comment Share on other sites More sharing options...
