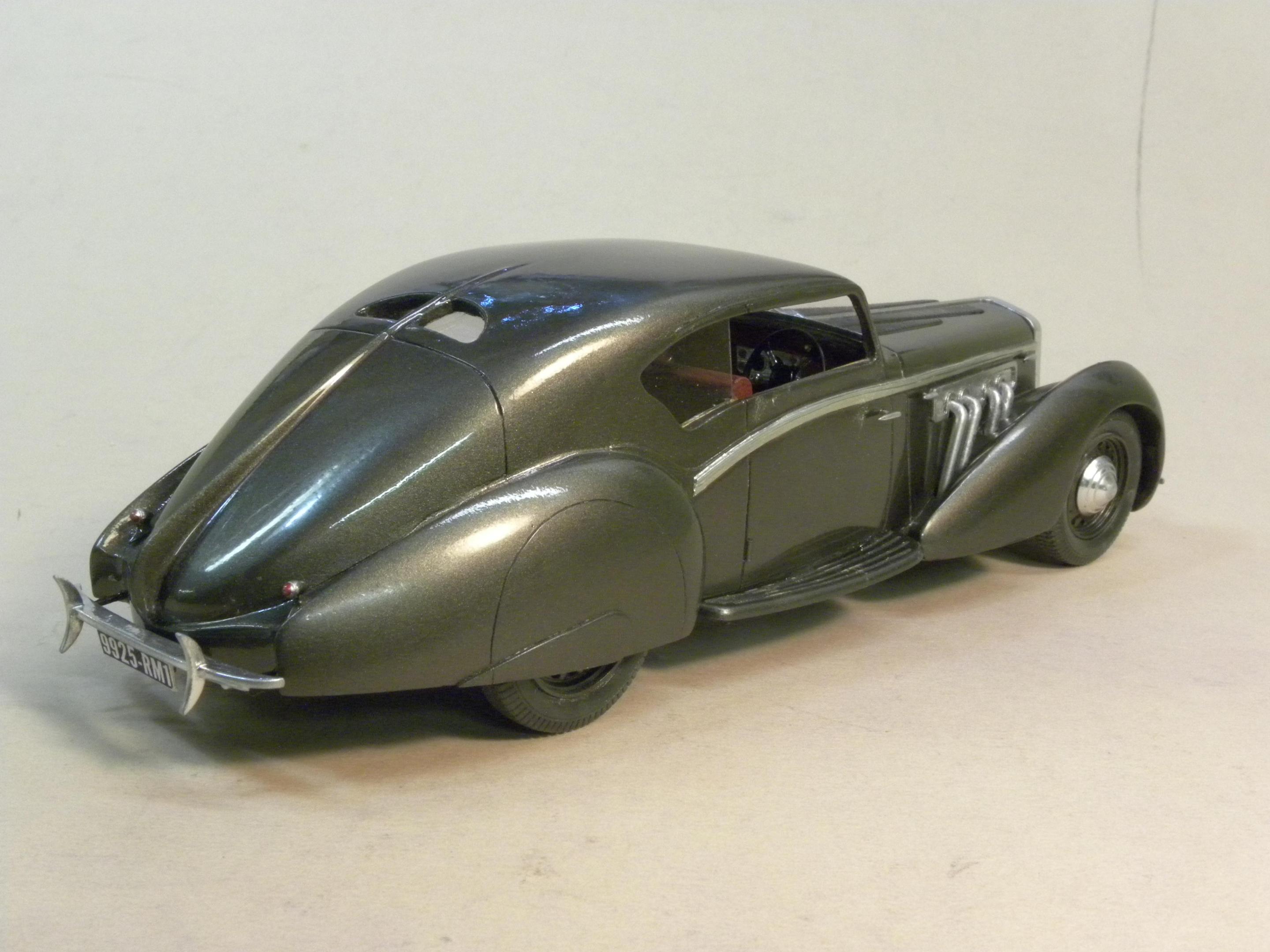

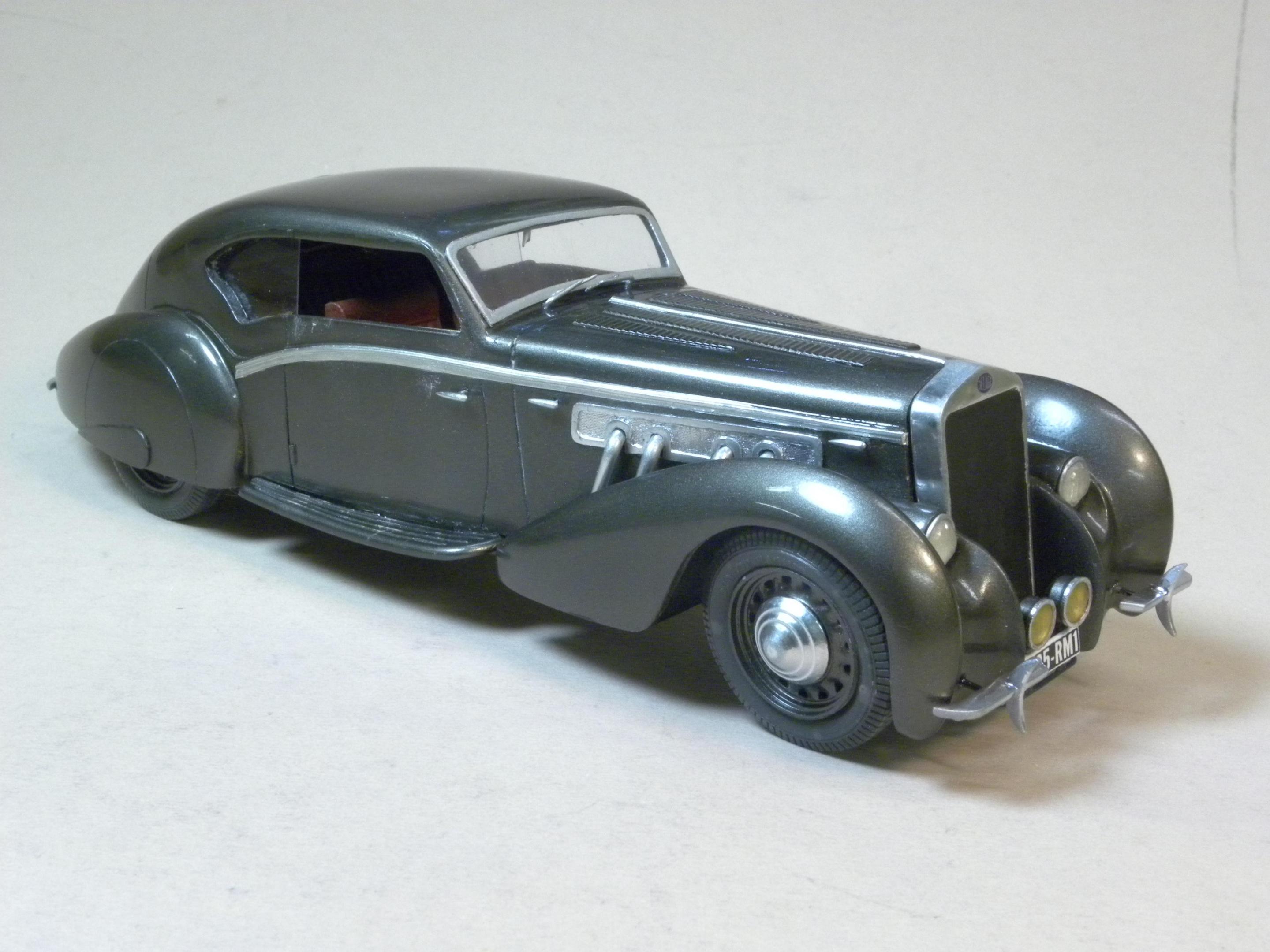

Pico Posted June 22, 2020 Posted June 22, 2020 Finally finished after a long and difficult build process. I started with a 1/43rd diecast of the car, scanned it, output it in 1/24th, then modified that to be 3d printed. My Anycubic Photon is limited in size so I printed it in four major pieces; the rear body, front fenders, hood and chassis plate. It replicates a real car, I hope. Or is close. This one: https://www.coopertechnica.com/1937-Delage-D8-120-Aerosport-Coupe.php.
89AKurt Posted June 22, 2020 Posted June 22, 2020 I'm impressed, shows extreme dedication! Sweet classic aero design. The tiny taillights are cute, I had similar size on the Mercedes 170V, holding to paint was fun. Is there a WIP thread? Also, any plans to build a resto-rod? ?
Curt Posted June 22, 2020 Posted June 22, 2020 Very nice work, Pico! You now have a very unique classic model.
Phildaupho Posted June 22, 2020 Posted June 22, 2020 Very impressive especially that you used up to the minute technology to produce a classic. Well done.
bbowser Posted June 23, 2020 Posted June 23, 2020 Very well done! Impressive use of the new technology.
Pico Posted June 23, 2020 Author Posted June 23, 2020 19 hours ago, 89AKurt said: I'm impressed, shows extreme dedication! Sweet classic aero design. The tiny taillights are cute, I had similar size on the Mercedes 170V, holding to paint was fun. Is there a WIP thread? Also, any plans to build a resto-rod? ? No WIP thread, it was a long process with some setbacks .
Peter Lombardo Posted June 23, 2020 Posted June 23, 2020 Very impressive. A look into the future of the hobby.
Gramps46 Posted June 23, 2020 Posted June 23, 2020 Very well done Pico. It is a beautiful car and model.
Spottedlaurel Posted June 23, 2020 Posted June 23, 2020 Wow, that's very impressive. When I quickly looked earlier I didn't realise it was a one-off enlargement of a smaller diecast. The finished result is fantastic, nicely captures the wonderful look of the original.
Eric Macleod Posted June 25, 2020 Posted June 25, 2020 Pico, this one slipped by me. It is absolutely fantastic and a real inspiration to take the time to learn the software. Fabulous work as always.
PhilX Posted June 30, 2020 Posted June 30, 2020 Very beautiful work Pico. I saw your message on Caradisiac Forum. So, here I am to admire your work … ?
beeRS Posted July 1, 2020 Posted July 1, 2020 Amazing way to build, and a beautiful job on the Delage. I hope this represents the future of our hobby. It opens the door to creating so many more subjects in scale. Is this scanning technology capable of scanning a 1:1 car?

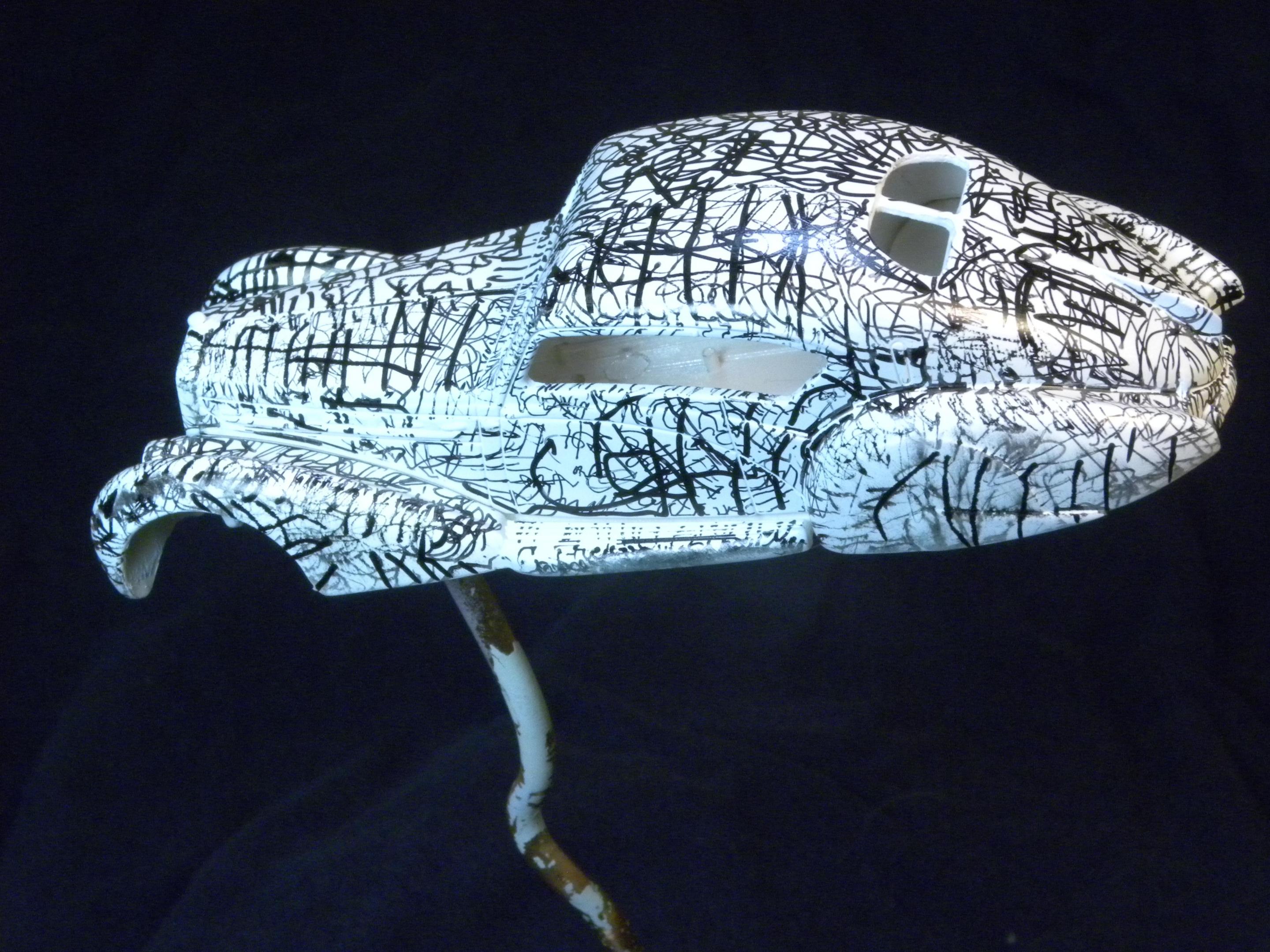

Pico Posted July 1, 2020 Author Posted July 1, 2020 About 5 years ago I attempted photographing full size cars but was unsuccessful. Here are the limitations of scanning technology: the item being scanned cannot have any bright reflections; those screw up the mesh produced by the software. Therefore the item must have a matt finish and the light mush be "flat" - no single sources of light as the sun or spotlight. Auto manufacturers and professional scanners have that technology, but we hobbyists don't. I strip the paint from the model, and paint with primer, make marks on it so the software can coordinate between the photos. I take about 60 photos and upload to Regard3D, then get a mesh from that. Then in Sketchup, modify the mesh for printing.
peteski Posted July 2, 2020 Posted July 2, 2020 17 hours ago, Pico said: About 5 years ago I attempted photographing full size cars but was unsuccessful. Here are the limitations of scanning technology: the item being scanned cannot have any bright reflections; those screw up the mesh produced by the software. Therefore the item must have a matt finish and the light mush be "flat" - no single sources of light as the sun or spotlight. Auto manufacturers and professional scanners have that technology, but we hobbyists don't. I strip the paint from the model, and paint with primer, make marks on it so the software can coordinate between the photos. I take about 60 photos and upload to Regard3D, then get a mesh from that. Then in Sketchup, modify the mesh for printing. Amazing! Question? The mesh is full of random triangles, but the rear part of the roof seems to have orderly arranged, and evenly distributed triangles. Was that part of the roof "cleaned up" by you?
Pico Posted July 2, 2020 Author Posted July 2, 2020 12 hours ago, peteski said: Amazing! Question? The mesh is full of random triangles, but the rear part of the roof seems to have orderly arranged, and evenly distributed triangles. Was that part of the roof "cleaned up" by you? I made two scans of this. The first comprises the larger polygons, making a rather low resolution mesh, not the best but I knew I was going to do plenty of body work. However the rear of the car was very poorly defined, so I made a second scan; those are the smaller polygons. I "welded" the two scans together. The orderly arranged polys are my work, because the 1/43rd scanned model was off and I needed a transition between the scans. I used the coachbuilders drawing, paced in the background, and a side view to determine the shape.
RVB Posted July 2, 2020 Posted July 2, 2020 Hi Pico, very crafty to mix several scans! I have read that some people use a video projector to "draw" on the model they take a picture of. What do you think? Otherwise, what glue do you use to assemble the 4 pieces?
Pico Posted July 2, 2020 Author Posted July 2, 2020 45 minutes ago, RVB said: Hi Pico, very crafty to mix several scans! I have read that some people use a video projector to "draw" on the model they take a picture of. What do you think? Otherwise, what glue do you use to assemble the 4 pieces? 5 minute epoxy to glue it together. I am uncertain about the video projector method - never heard of it. Possible you mean using a laser beam? There is a method, that I tried 5 years ago, using a thin laser beam to define the contours of a model and photograph that many times, then software would make a mesh from the contour images. I could not make it work. I use Regard3D; http://www.regard3d.org/
