Belly Tanker - my 3D printed version

[Jiml0001]

I have been a modeler for over 60 years and I have to say I have never had so much fun than since I got a 3D resin printer last Christmas.   I had always been curious as to how 3D printing would enhance modeling, but it is far and away beyond what I thought it could do.    I am not a CAD expert and have never dealt with making my own drawings but by using drawings available for free on the internet and some fairly simple free software, I have been having a ball.   You can't imagine the scale of the detail this printer will produce.

So I have used it to make some add on details for my builds including carbs and distributors etc., but I want to produce a complete car from scratch.   Other than wire, I want to print every part.    I started to play with some Arial Atom type track cars, but I saw a picture of an old belly tanker Bonneville car and it got me going.   This will be like a car designed and constructed in somebodies garage, just like me.   Not looking to create a replica of an existing car, just my take on the subject.   Hopefully it will be a fun project.

To get started I searched the web for a drawing of a drop tank and thanks to the military modeling guys, who are well into 3D printing, I found a drawing of an F86 drop tank:



The shape was close and I used a free program called MeshMixer to edit it, making the tank 36 inches around and 13 feet long, just like a lot of guys used in the day.    I also made it into a hollow shell and cut it into four parts since my printer is too small to print the whole thing at once:



So I am off on my belly tanker project



[Jiml0001]

While I was working on the shell, I added a scoop to the top rear to feed the engine

[absmiami]

nice

[Rocking Rodney Rat]

Looks like a promising start.... -RRR

[Jiml0001]

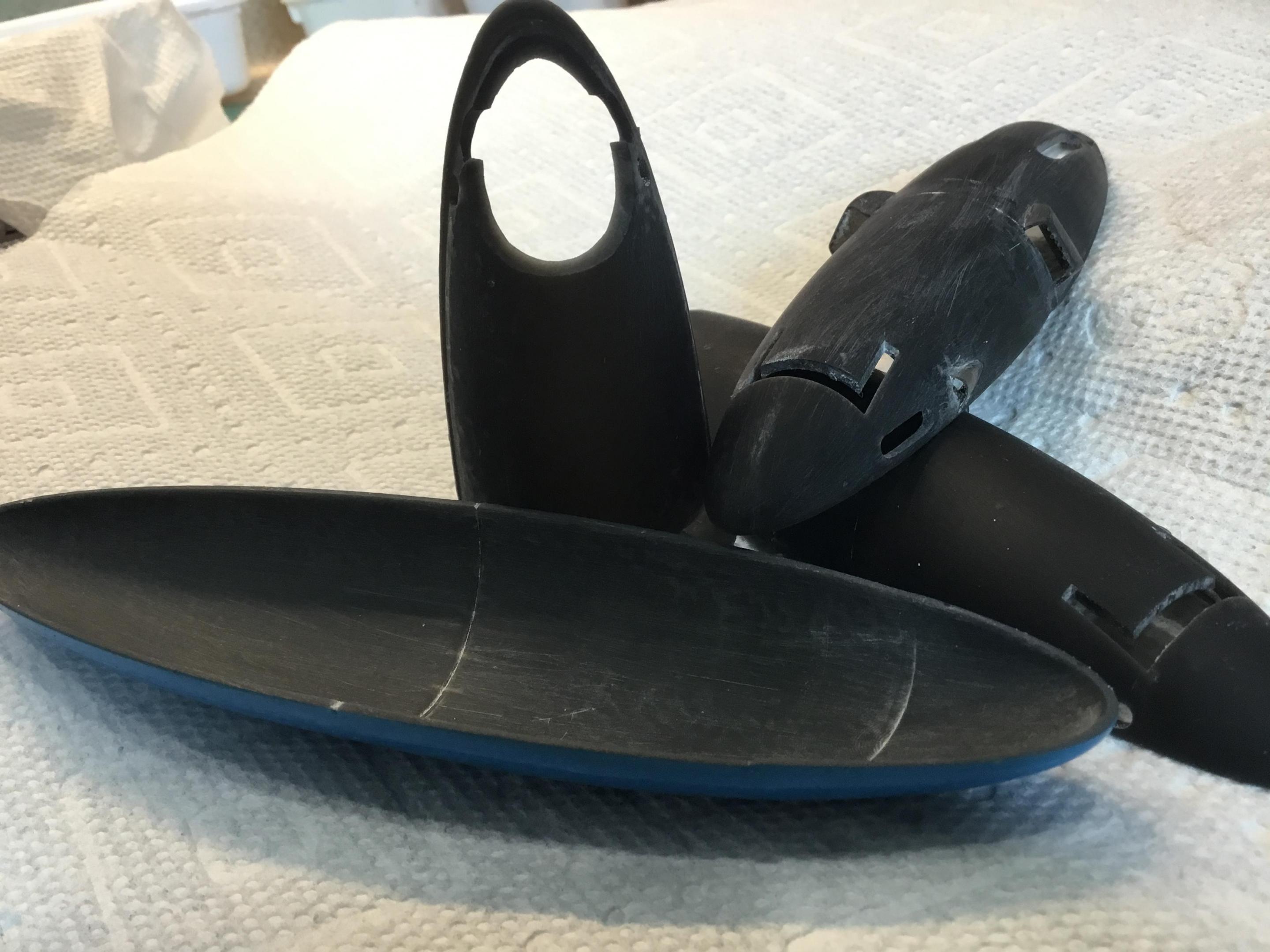

So from the drawings the printer goes to work.   I printed out several versions and tried to glue up a complete side, sand and paint it to see how well this resin finishes and assembles.   It works great, sands smoothly and quickly.   Takes paint well.

`

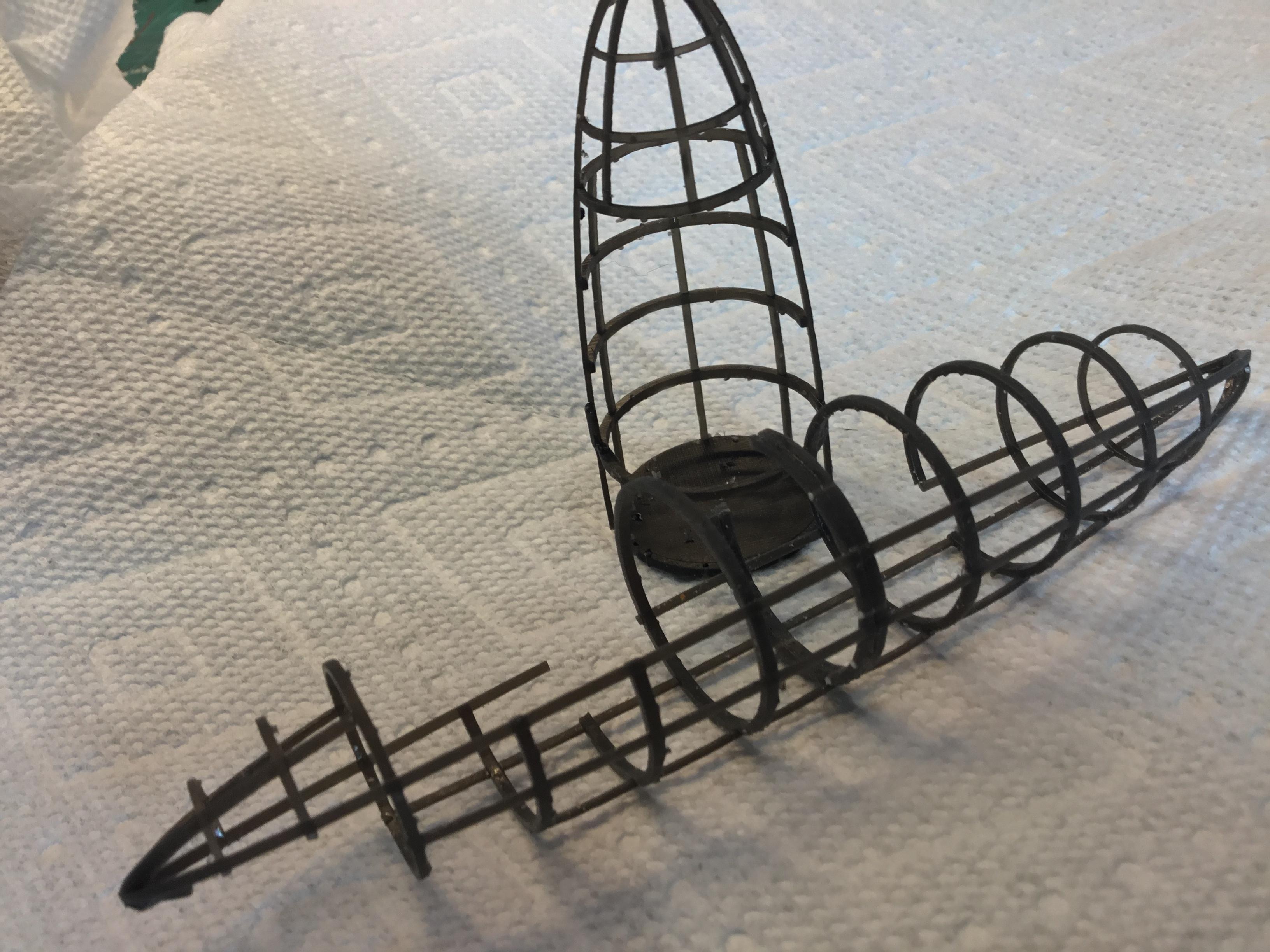

I wanted a frame that would be aircraft oriented.   Again, using the shell drawings I created an inner frame

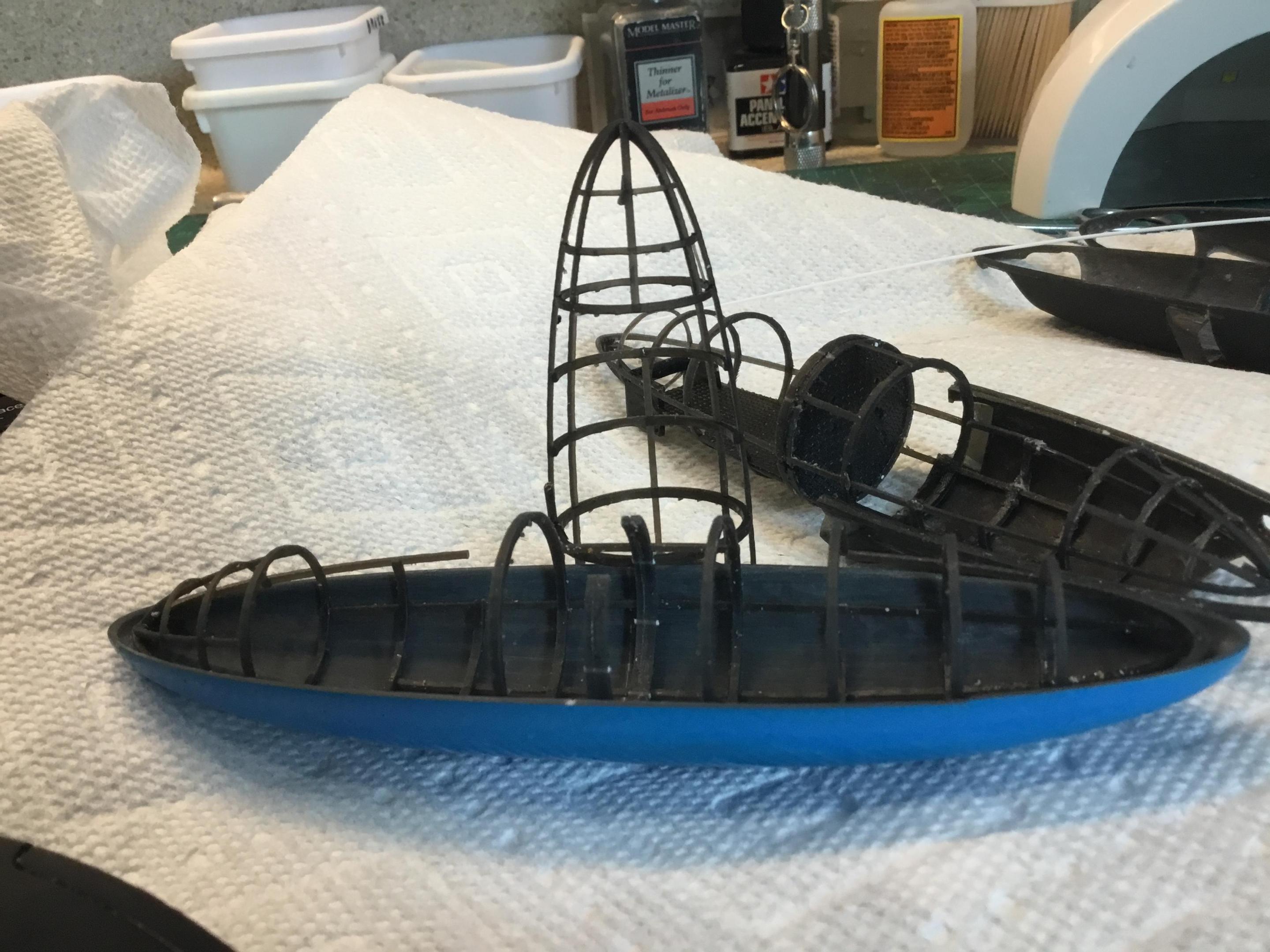

Using this frame I mocked up engine and driver areas, put in suspension attachment points and came up with a mockup frame



[Tom Geiger]

That is really cool. Great work!

[Jiml0001]

Can't be a true belly tanker without a flathead





Edited July 23, 2021 by Jiml0001

[cobraman]

You have my full attention.

[Jiml0001]

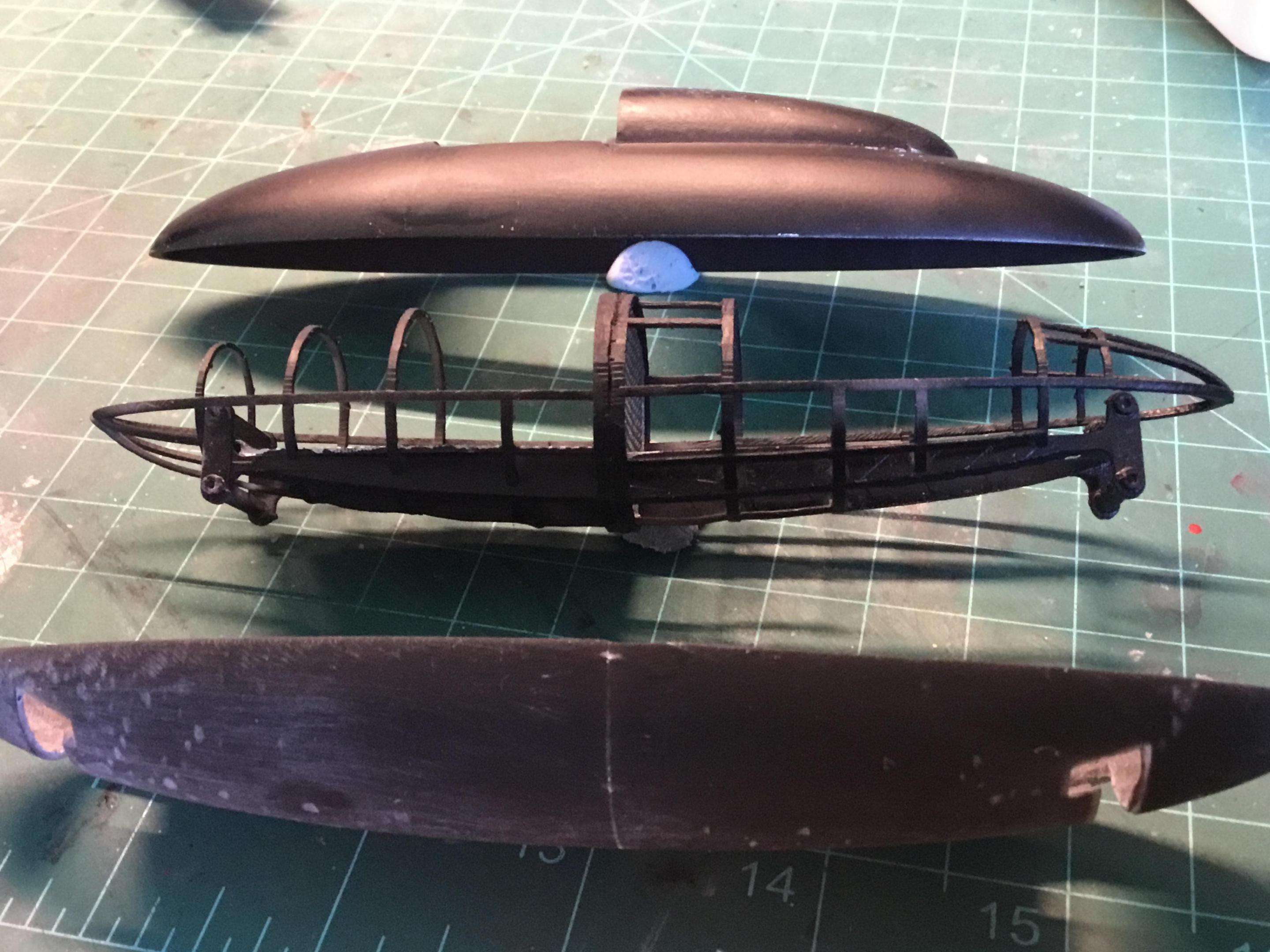

I know I have skipped a lot of design work but the goal was to have a body and frame that would fit everything and then go back and start building the different elements that will go into it.   So here is the overall breakdown showing the body top and bottom and the frame.   Since my printer is not large enough to print the  whole body at once, I cut it into two parts- front and back



The front is on the left and you can see the structure that hangs down in the front.   This is the hard points for the front suspension and hangs down through the front of the body.   The suspension A Frames attach there.   In the back, the suspension will attach to the frame of the transaxle

.

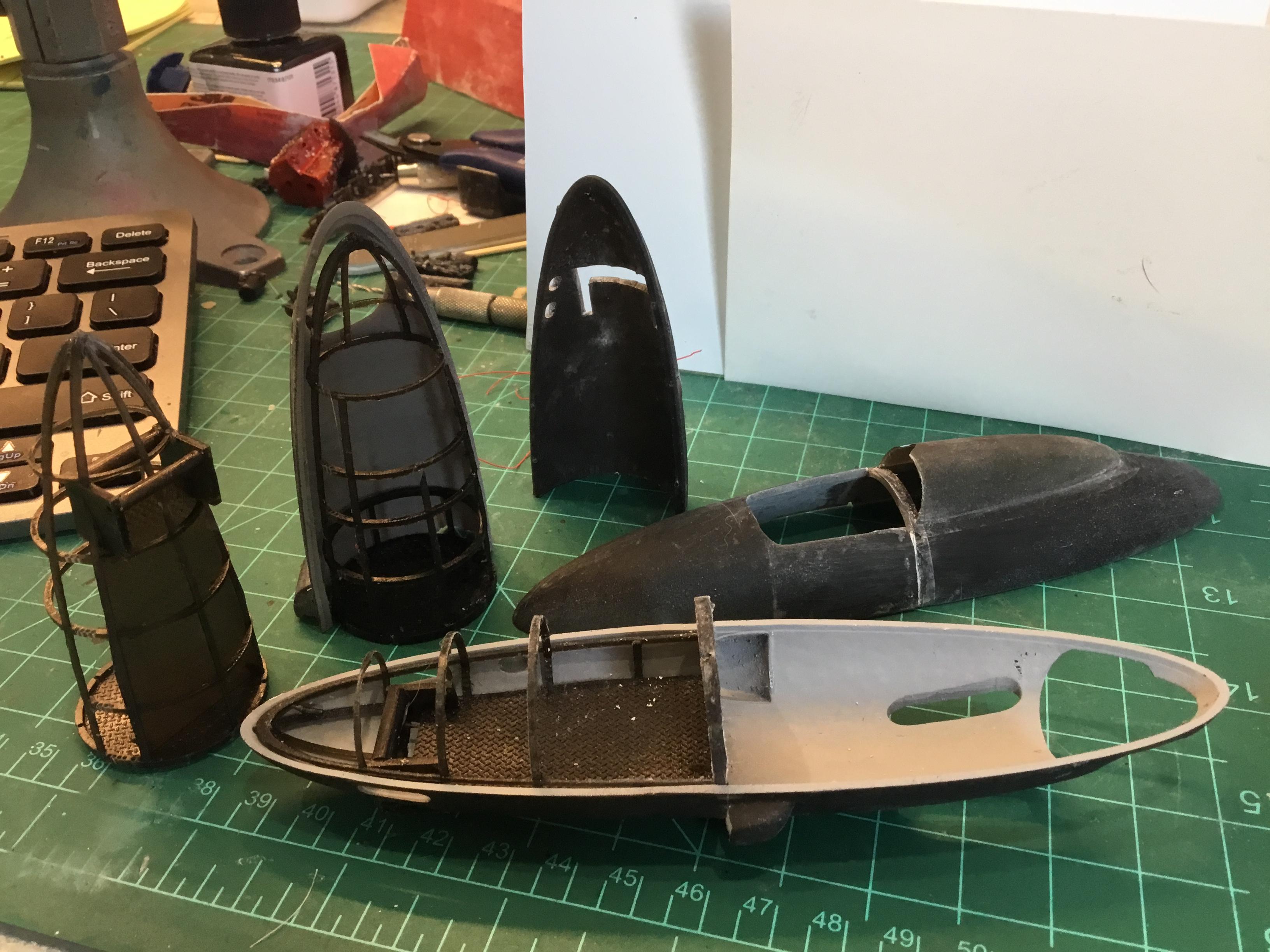

So the drawings from the first pic get sent to the printer and the actual parts are printed.  This picture shows some of the parts for the body and frame as well as some body parts glued up.   This resin sands like a dream and is easy to work with   My biggest issue is that after the part "cures" by getting bathed in light it will become fairly brittle so you have to be extra careful sanding and finishing.



I thought I would start with the engine.   I decided on a flathead V8 to kind of keep with the old style.   One of the greatest thing about 3D printing is the ability to scale drawings up and down.   Most drawings are made to be bigger than 1/24 or 1/25 but all you have to do is bring up the drawing and scale it down on screen to whatever size you want.   Once one part is the correct size, all the rest of the drawing will be automatically scaled to fit.   Another thing I have always done when detail building is to work in the metric system.   As luck would have it, one millimeter in real size equals one scale inch.   If you want a 1/2 inch bolt, simply use 1/2 millimeter.  The one millimeter = 1 inch rule is neither 1/24 or 1/25 scale.   It is actually 1/24.6 scale so it fits pretty nicely.

[OldNYJim]

I would strongly recommend either putting prints up for sale, or putting the files on Shapeways - I bet you’d sell a bunch.

GREAT work so far!  Love it!

[Jiml0001]

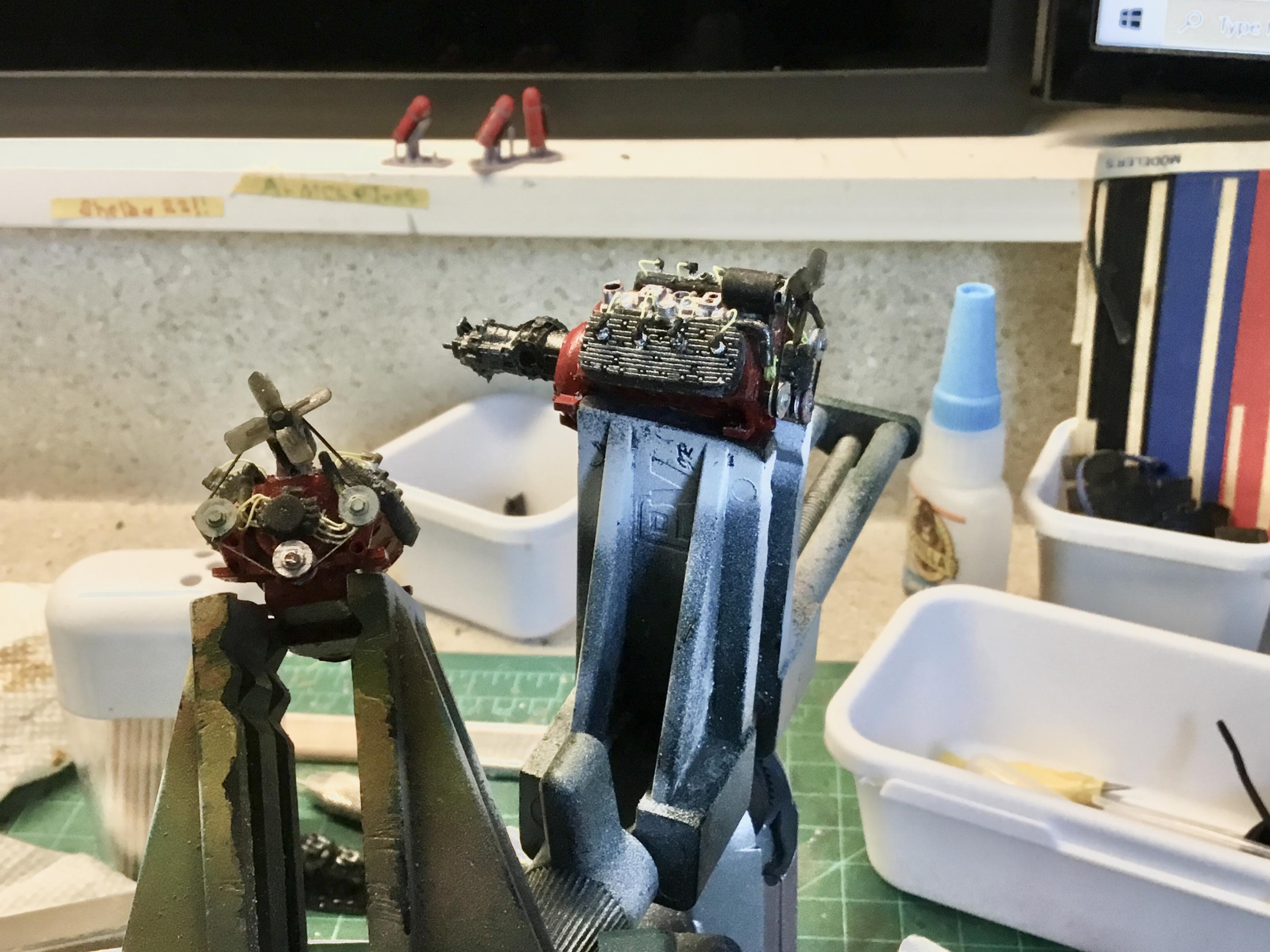

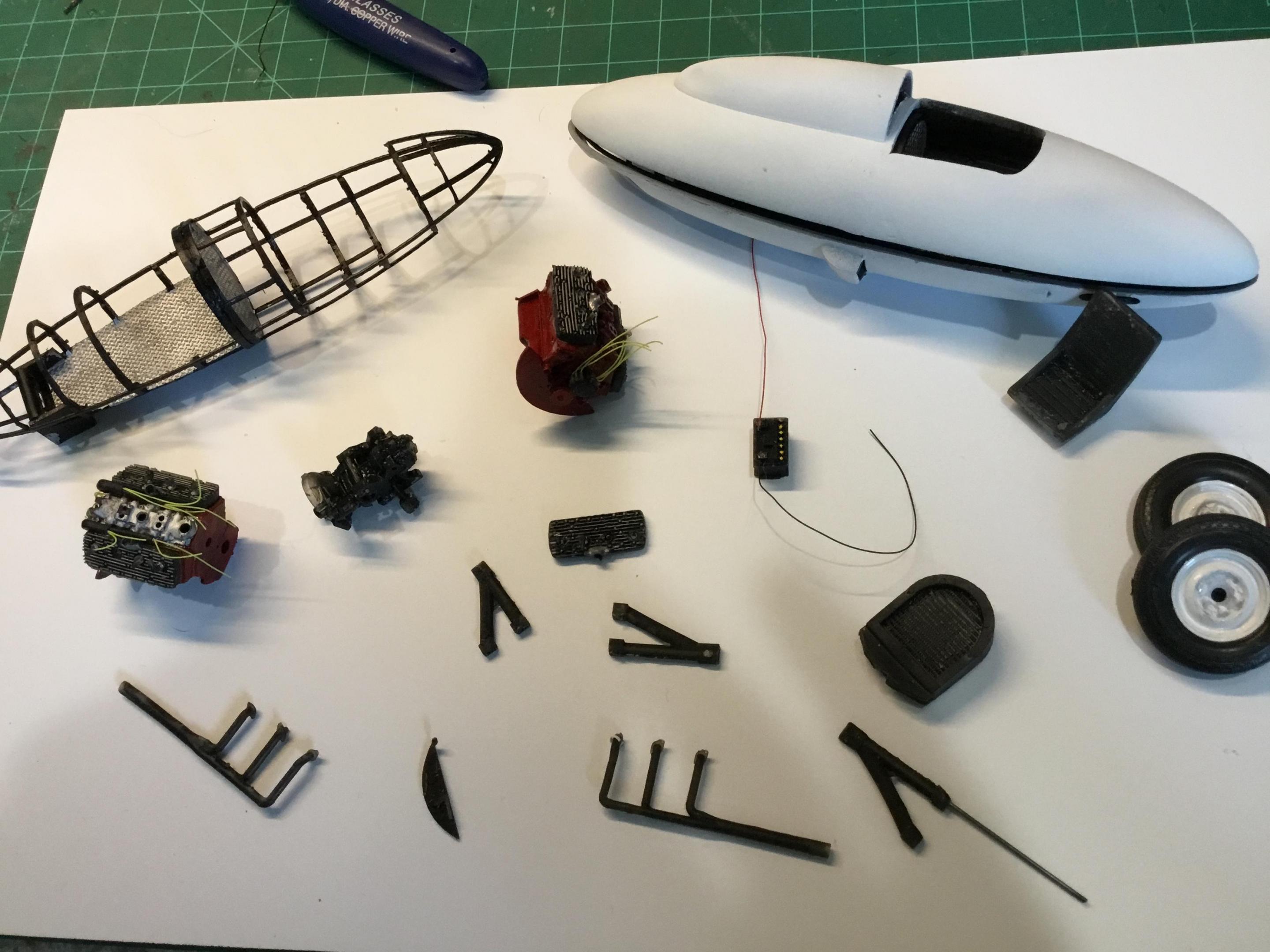

When I promised myself that my bellytanker would be completely designed and printed from scratch, I didn't really think about how many parts it takes to make a complete car.    It has been a labor of love and a lot of fun, but boy there is a lot of design and tinkering to get all the parts needed.   The frame and body were really fun until you realize how much stuff you have to think abut.   Exhausts, suspension, engine, everything has a knock on effect.   Get one part to be right and six more need to be tweaked to fit around it.    Here are just a tiny handful of parts so far

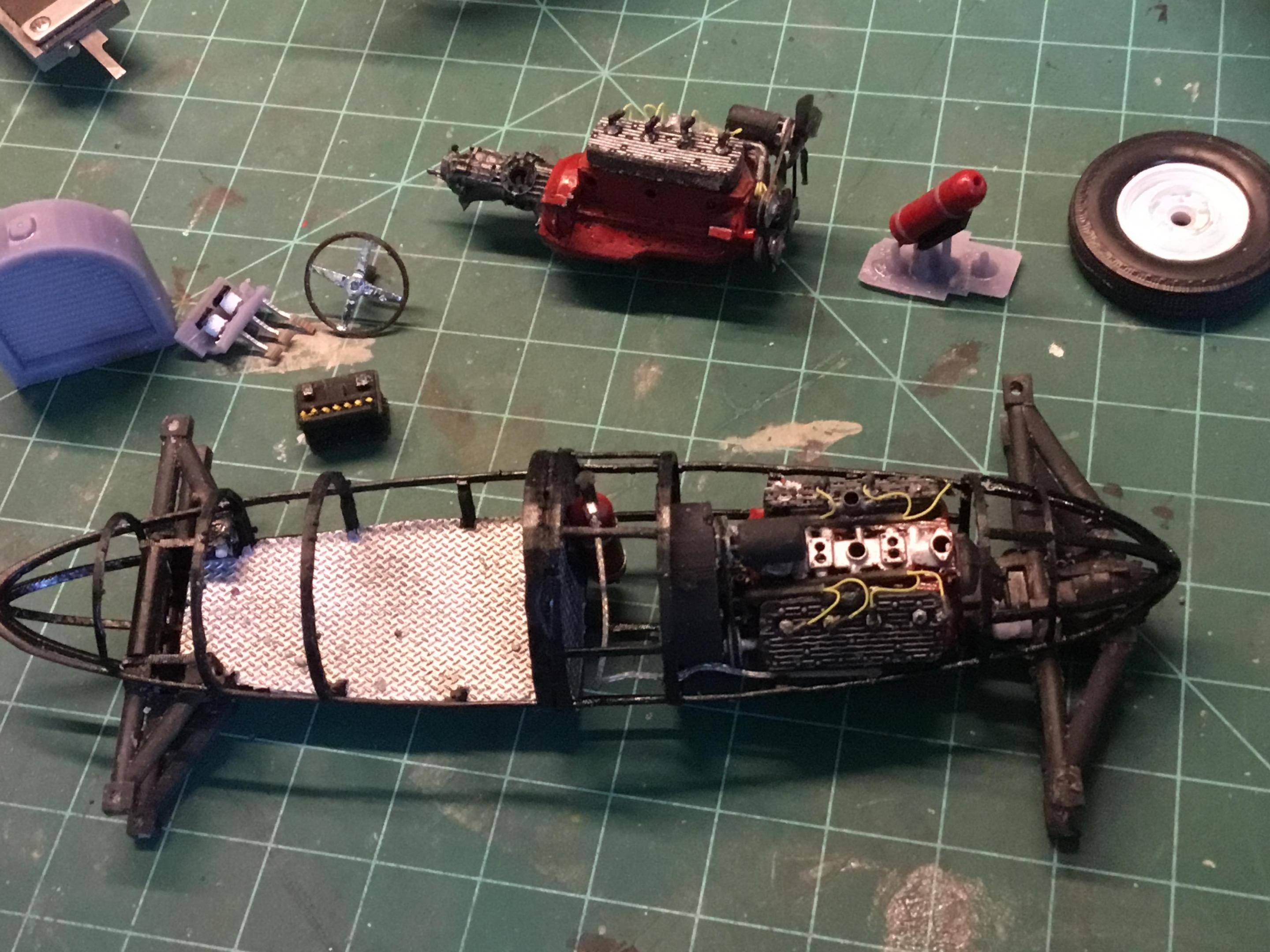

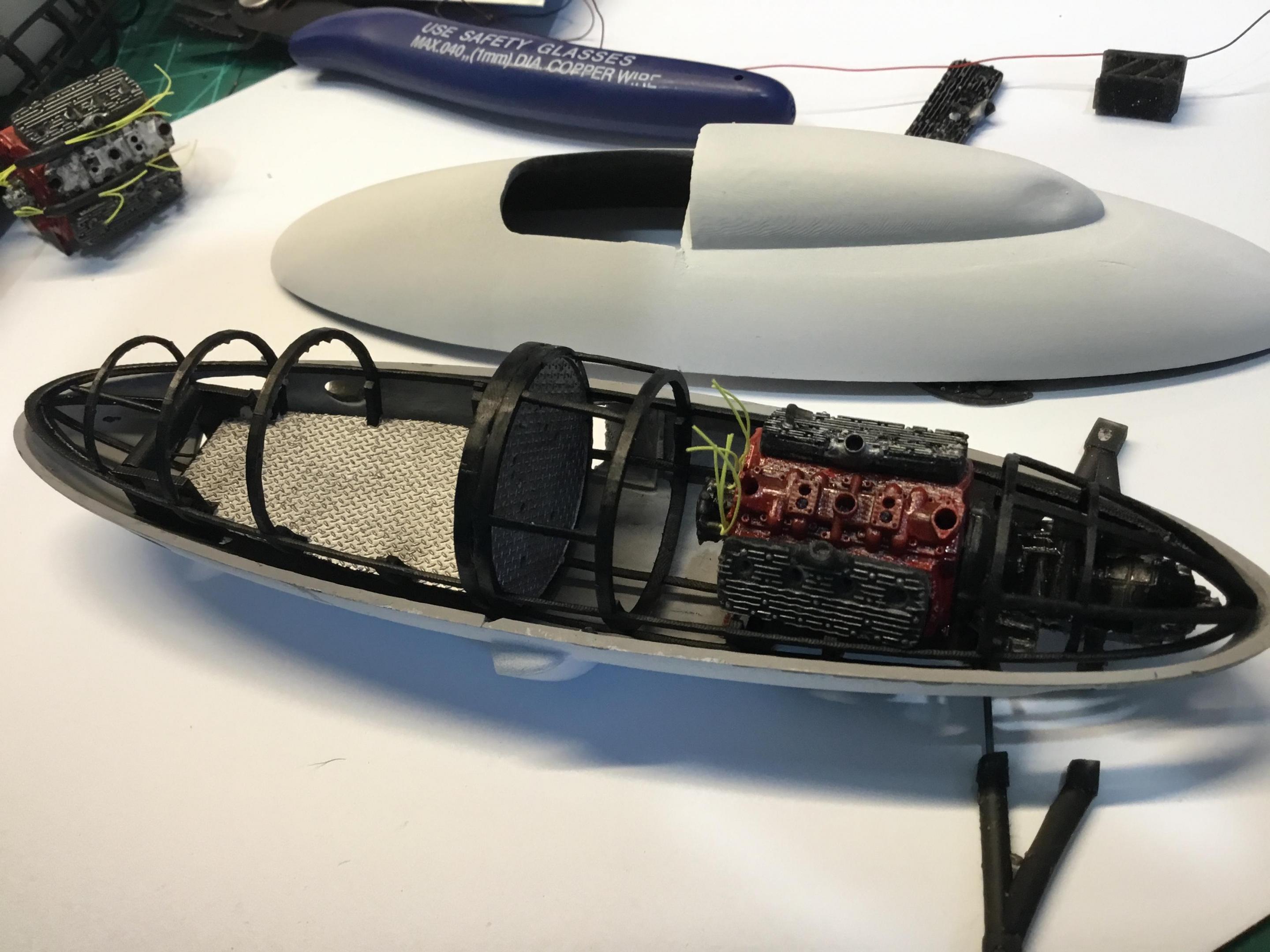

A quick mock up of the engine and transmission.  You can see the diamond plate floorboard.   I am going with a wishbone suspension.   The plan is to build one with a body and one without.   Right now I am trying to get the two engines ready to install

[Jiml0001]

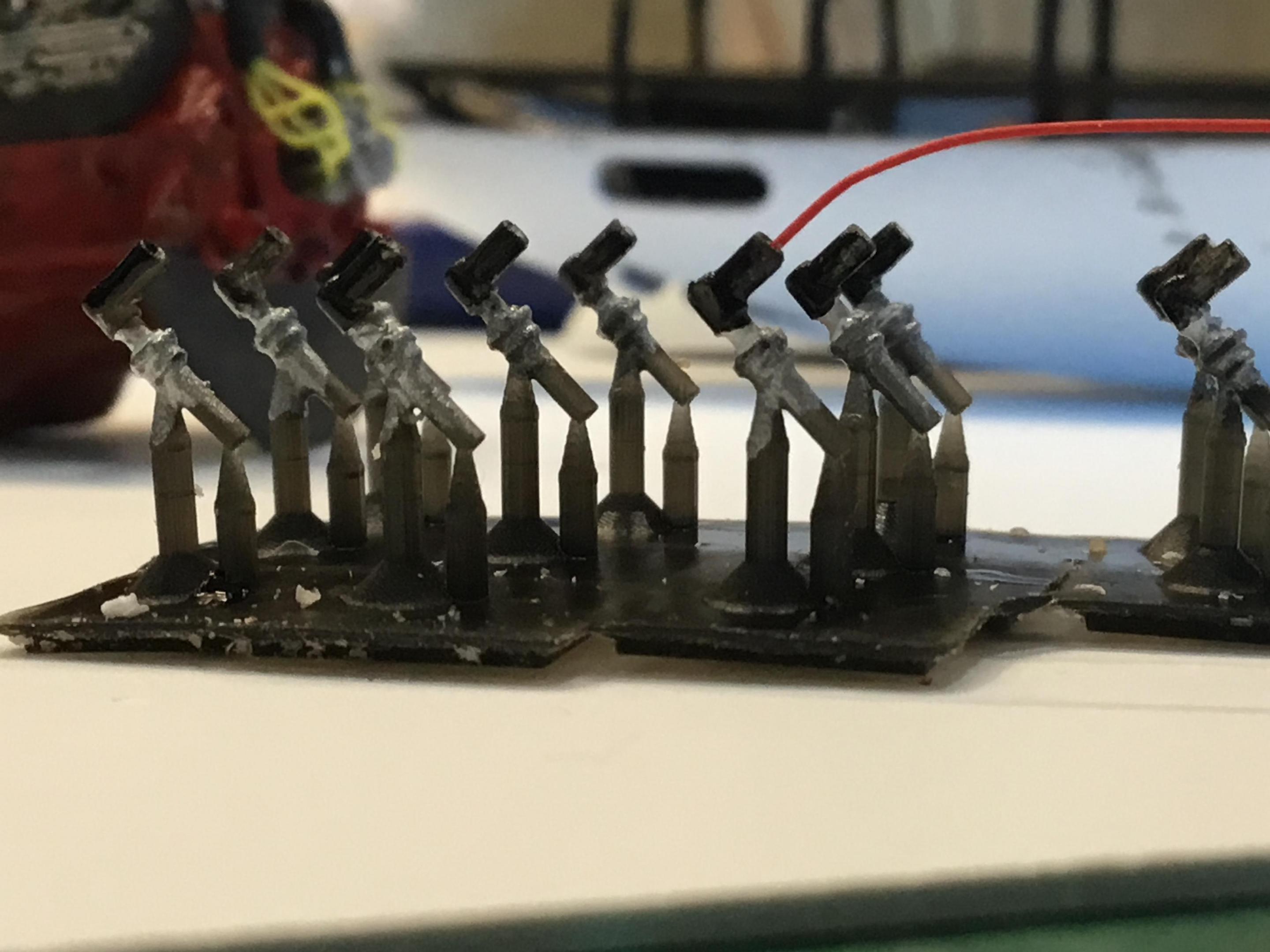

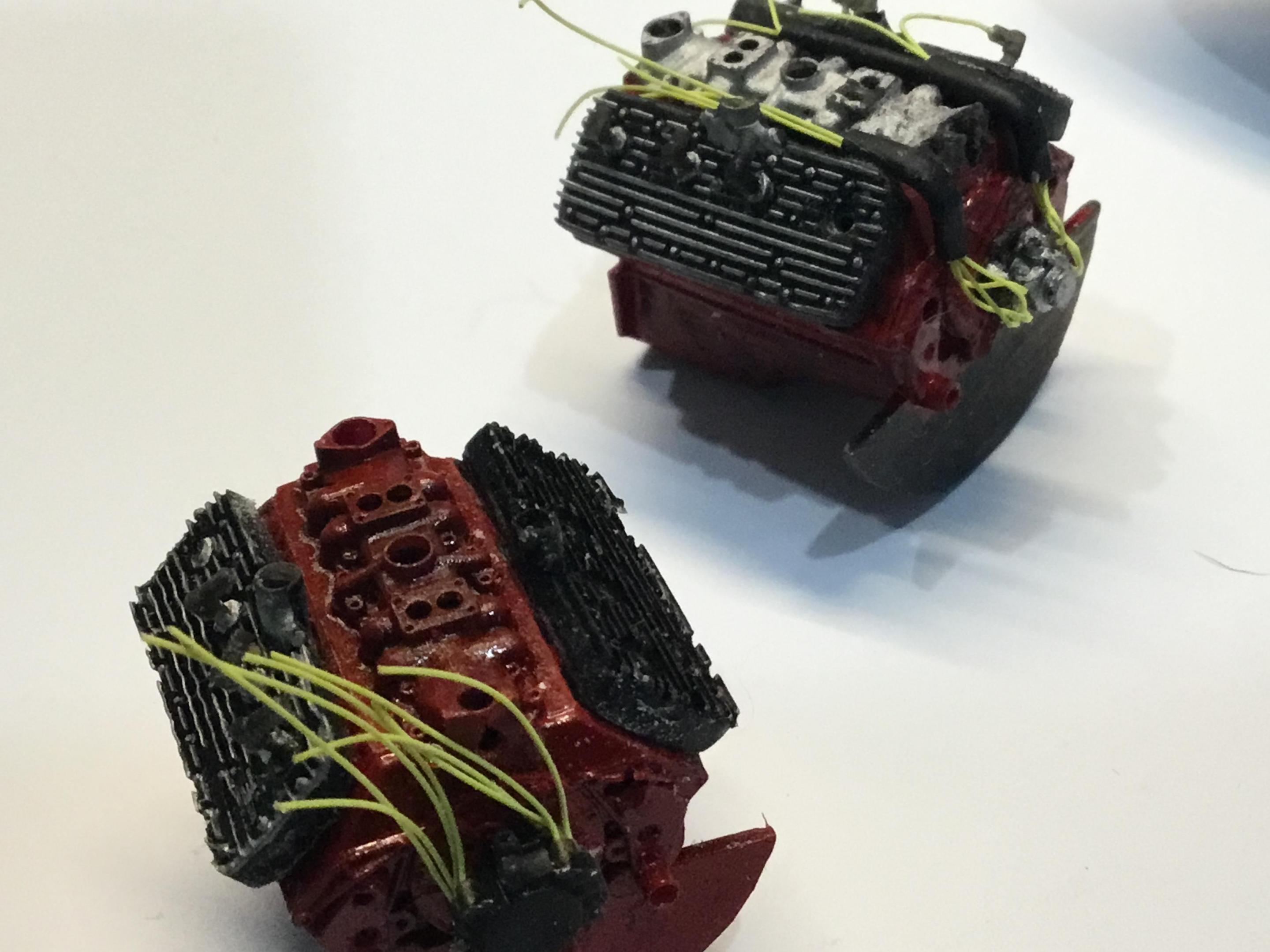

This morning has been all about spark plugs and boots.   My hands just aren't that steady any more.   As a reference, the red plug wire is one quarter of a millimeter in real life
or one quarter of an inch in 1:1.

[misterNNL]

Great work here that will surely inspire others to attempt building a belly tanker. I agree that when you've finished these files would be very marketable.

[absmiami]

Well yes - but where does one obtain the correct dia spark plug wire ?  I’ve been hunting for this diameter …. Really nice project -  Salt Lake City in ‘23?

[cobraman]

I love belly tankers and yours is looking great.

[kpnuts]

Never heard of a belly tanker before, this is just awesome.

[Jiml0001]

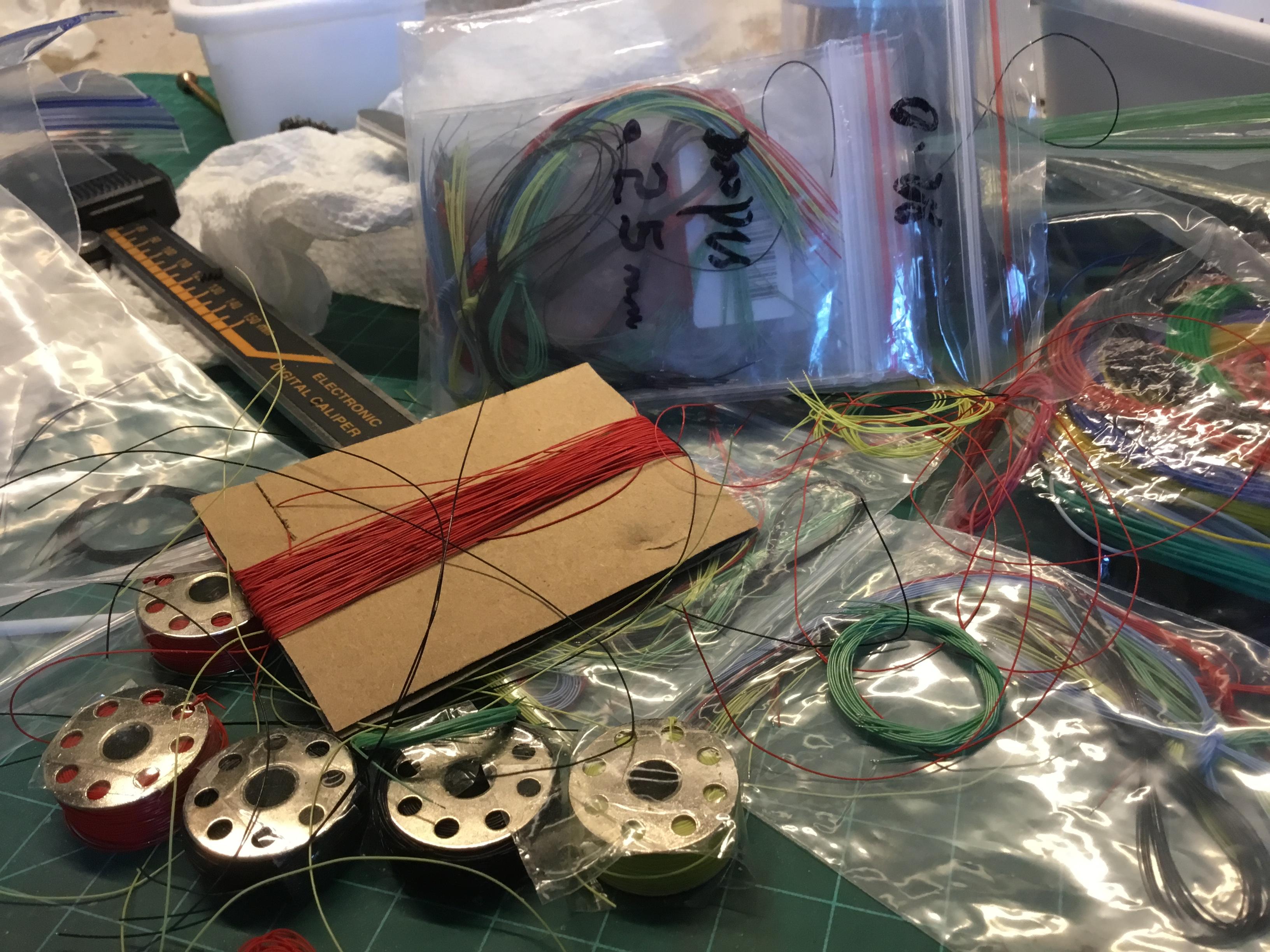

On spark plug wire, I had an obsession with getting the proper diameter wires for everything.   After searching high and low I gathered different sized wire for different uses.   I found you can't go just by the size AWG gauge size of the wire.   That is the diameter of the actual inner wire, not the size of the wire with insulation on it.    Some insulation is quite thick, some quite thin.    Most aftermarket distributors use a wire that is .65 mm in diameter.   I use millimeters since one millimeter in scale equals one inch in 1:1.   So wire that is .65 mm in diameter is .65 inch in 1:1 scale, almost 3/4 of an inch.   Way too big for scale spark plugs.   I found that most stock plug wires, especially in older cars, is 1/4 inch in diameter or .25 mm in scale.   High performance wires in real life are around 3/8 of an inch in diameter or about .35 mm to .4 mm in scale.    So I was finally able to find wire that was .25 inches in diameter.   If I remember correctly, it is 36 AWG size with with a teflon insulation that is very thin.   I found several sources with lots of different color:

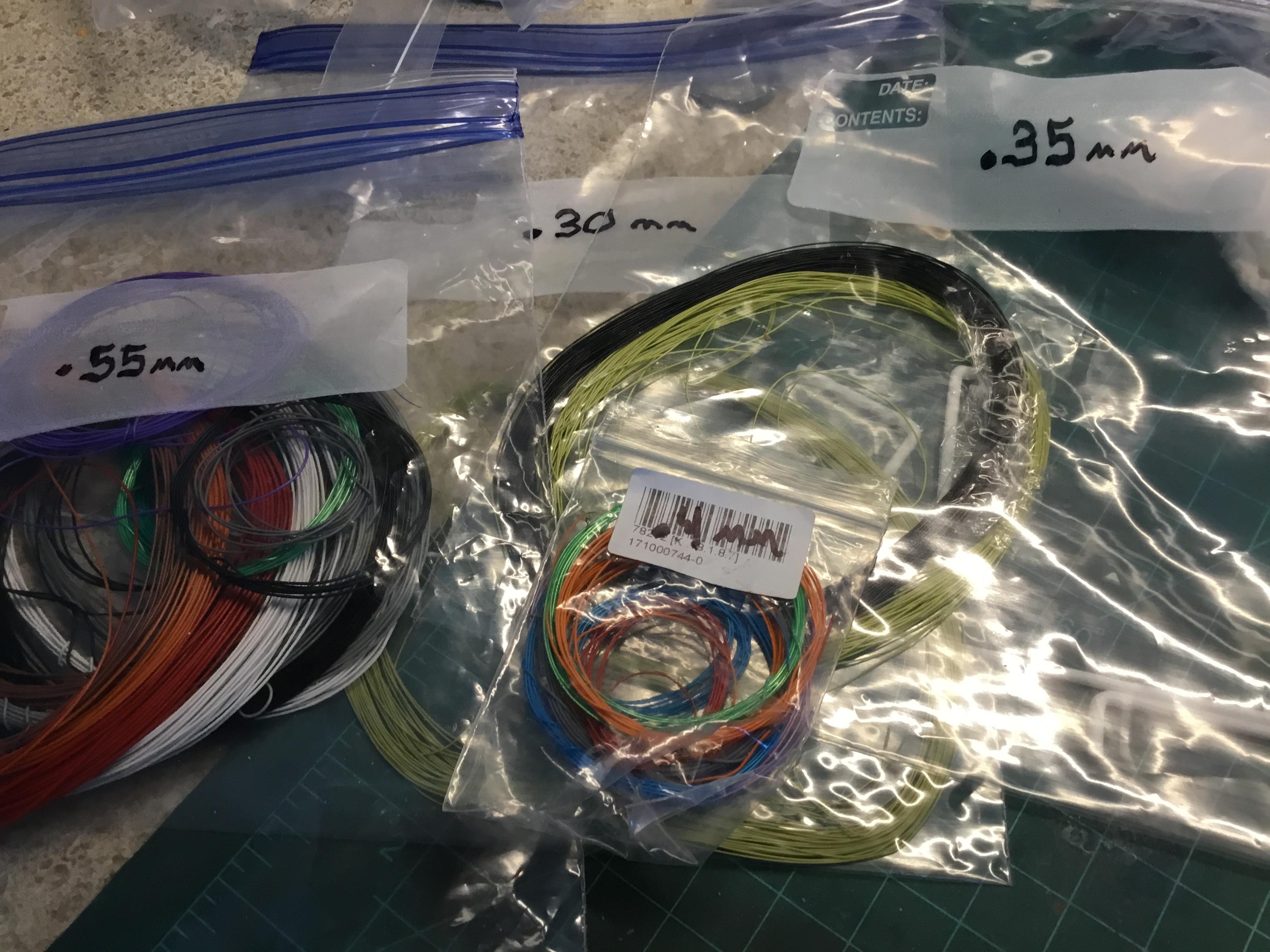

I also have found plenty of other sizes including .3 mm, .4 mm, .5 mm and up:



So that was a part of my wire odyssey, The plug wire in the picture I sent previously was .25 mm or a quarter inch in scale.   I will be honest though and say that the .25 mm wire is certainly tiny and I have to admit, actually looks too small to the eye on some engines.



[Jiml0001]

To the person that hadn't heard of a bely tanker.    After World War II that air force had tons of drop away fuel tanks used on most fighters to give them the range they  needed.   When these tanks were empty, hey were jettisoned.   After the wr they were sold off and most of them went for around $200.   They ranged from 12 feet to 15 feet in length and roughly three feet in diameter.   Hot rod guys grabbed them up and built "bell tankers" out of them.   Speed week at Bonneville still has a lot of them and many speed records are held by belly tankers to this ay.   Google "belly tanker" and you can see some.   These were pure do-it-yourself cars and everyone had their own idea of how to build one.   That is what appealed to me, make something of my own design.   I went for an interior framework with more modern independent suspension but that was the beauty, anything goes.

[Jiml0001]

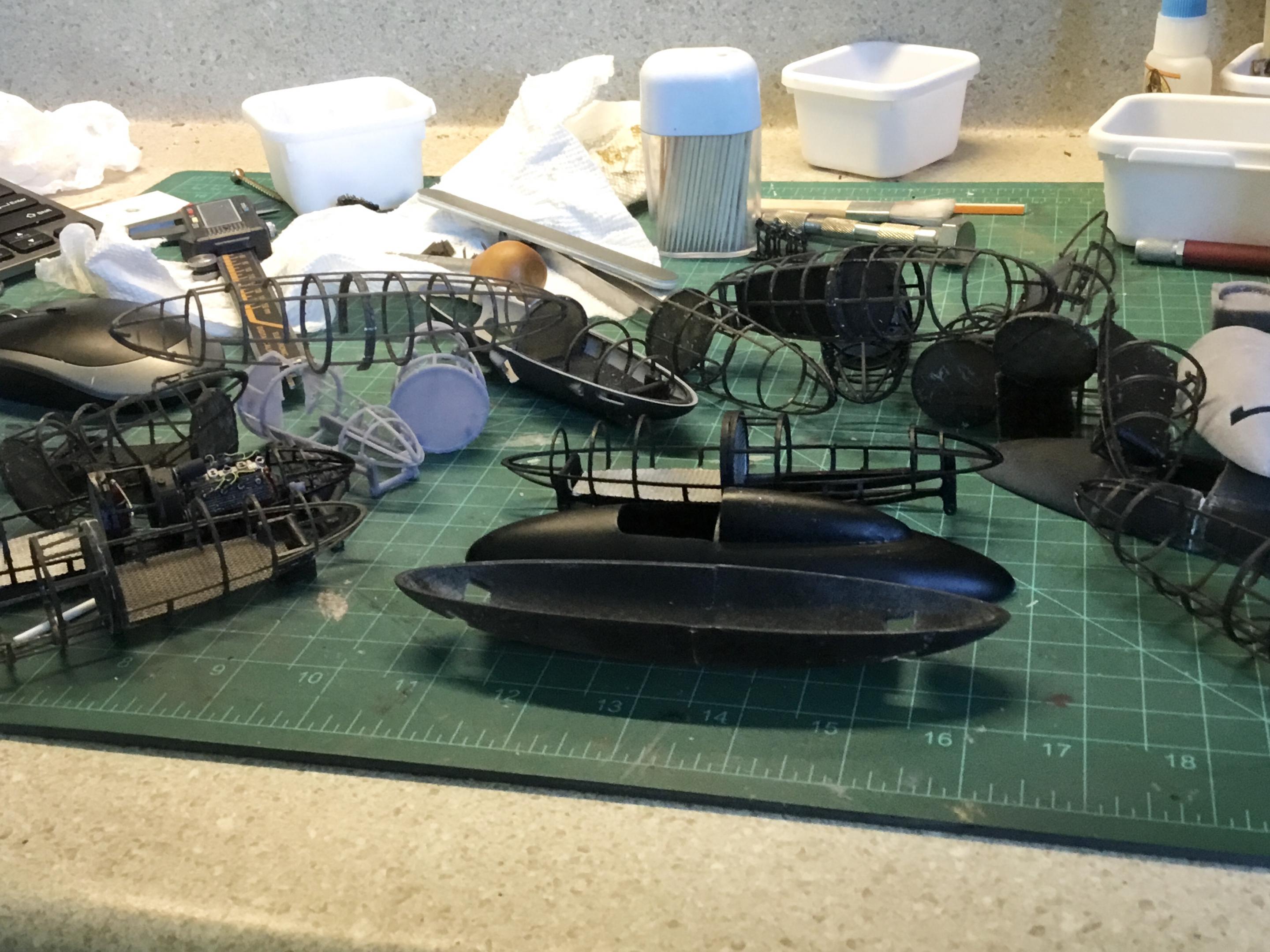

So you can see that this has been a lot of 3D printing,  here is a picture of my final design in the middle surrounded by some of the designs that didn't make it:





I have had so much fun with this project.   I can't say enough about the capacity of the printer.   I can print all the nuts and bolts, rivets, spark plugs, real scale distributors with proper bots, just about everything.   Yesterday I was making scale seat belt buckles.   It is a blast and if anyone else wants any help, advice or drawings, while I am a beginner I will share what I have.





[Jiml0001]

Here are a few things I made including batteries, steering wheels, and a real sweet pedal set that I actually drew myself.



[Jiml0001]

So my final design, Ford Flatheads and custom belly tanker body:

Edited August 14, 2021 by Jiml0001

[carsntrucks4you]

Great job ??

[Claude Thibodeau]

Hi James!

Heritage design, new-era fabrication technology: a match made in heaven. Bravo!

Ther can NEVER be too many salt cars on this forum. Keep on!

CT     (self-proclaimed Chairman of the Flat Earth Society)

[absmiami]

So YOU’RE The Chairman ….

I was wondering who the Chairman was …

[absmiami]

By the way - has anyone ever heard of the Rutherford D type ? ??
