This project languished on the shelf for a long time because  of a warped chassis base plate.  Solving this problem is what got it off the shelf of doom. This is the 2006 Lemans winning Audi R10. Drivers were  F. Biela, E. Pirro and M Werner. Color is Tamiya TS76 Mica Silver with Krylon latex clear. I have had a lot of luck with this clear  over metallic finishes like silver and gold. The water base doesn't eat into the somewhat porous finish and change the color.  For the most out of the box build and went together fairly well after solving some initial problems.  this was a straight. More info on that in the captions.  Thanks for looking.

Finished car on its wheels.  Mopst of the red had to be sprayed and Mr Color #68 matched the decals the best.                 "

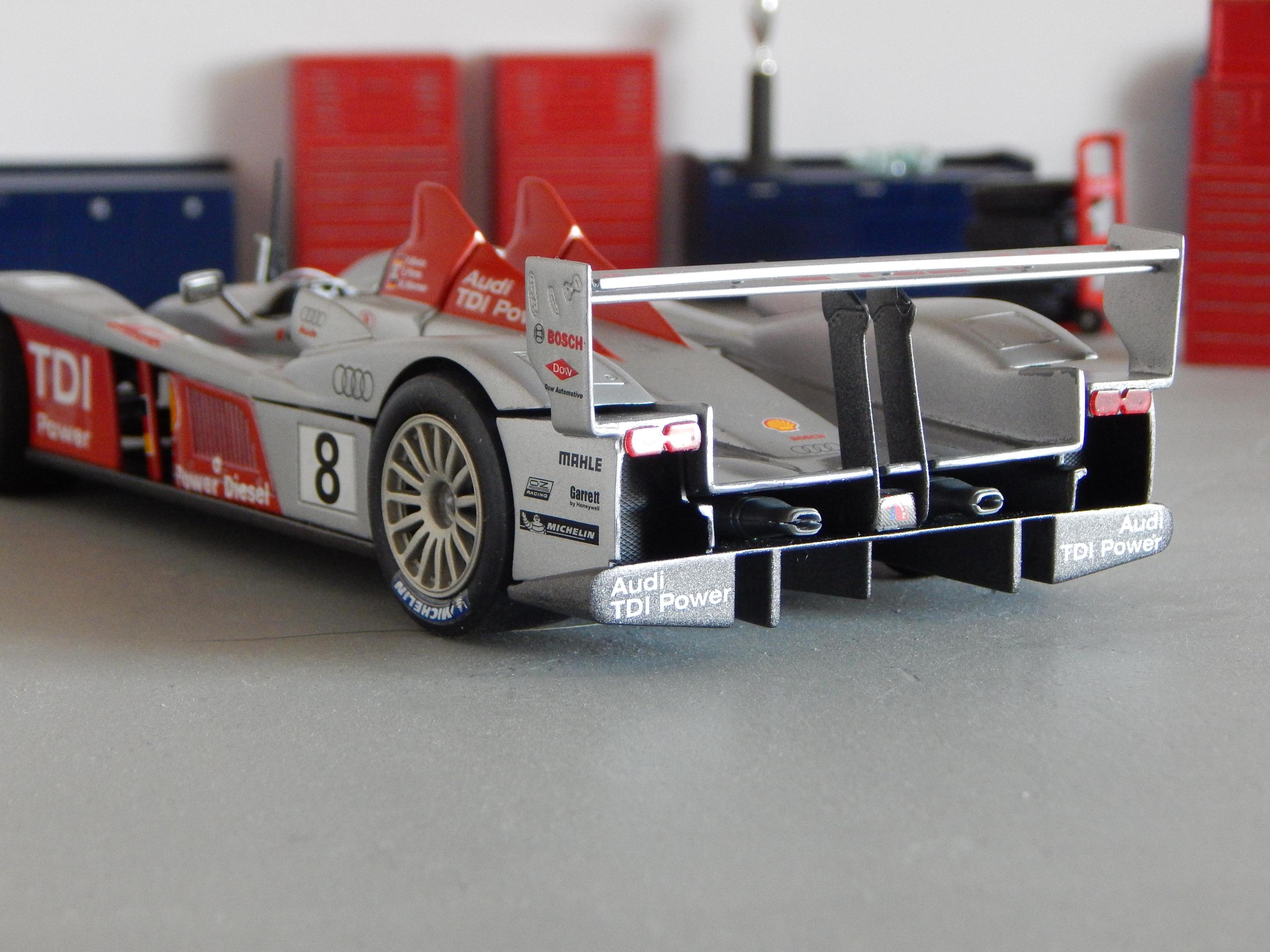

Business end of the car. Rear engine cover is removable and hides a detailed engine. It fit well initially  but when the body was installed to the chassis plate the warpage pulled the seams apart slightly. Some tiny u-shaped body clamps fixed that.

Side veiw. Instead of gluing and clamping (which is risky at best) I  opted to pin the body in place. This was done with some .018 soft steel wire and a #77 drill. I drilled 10 holes (5 on each side) through the base plate where the body attaches. Then taped the body in place to located the holes in the body. The wires were then glued into the bottom of the body. Assemling meant lining these wires back up with the holes and bending them over to hold the body in place.  Worked like a charm and fixed most of the warpage. You can't see the wires in this photo.

Top view shows most of the detail. The dark grey was all decal with clear coat.
