DIY Spray booth

[Holeinthehead2]

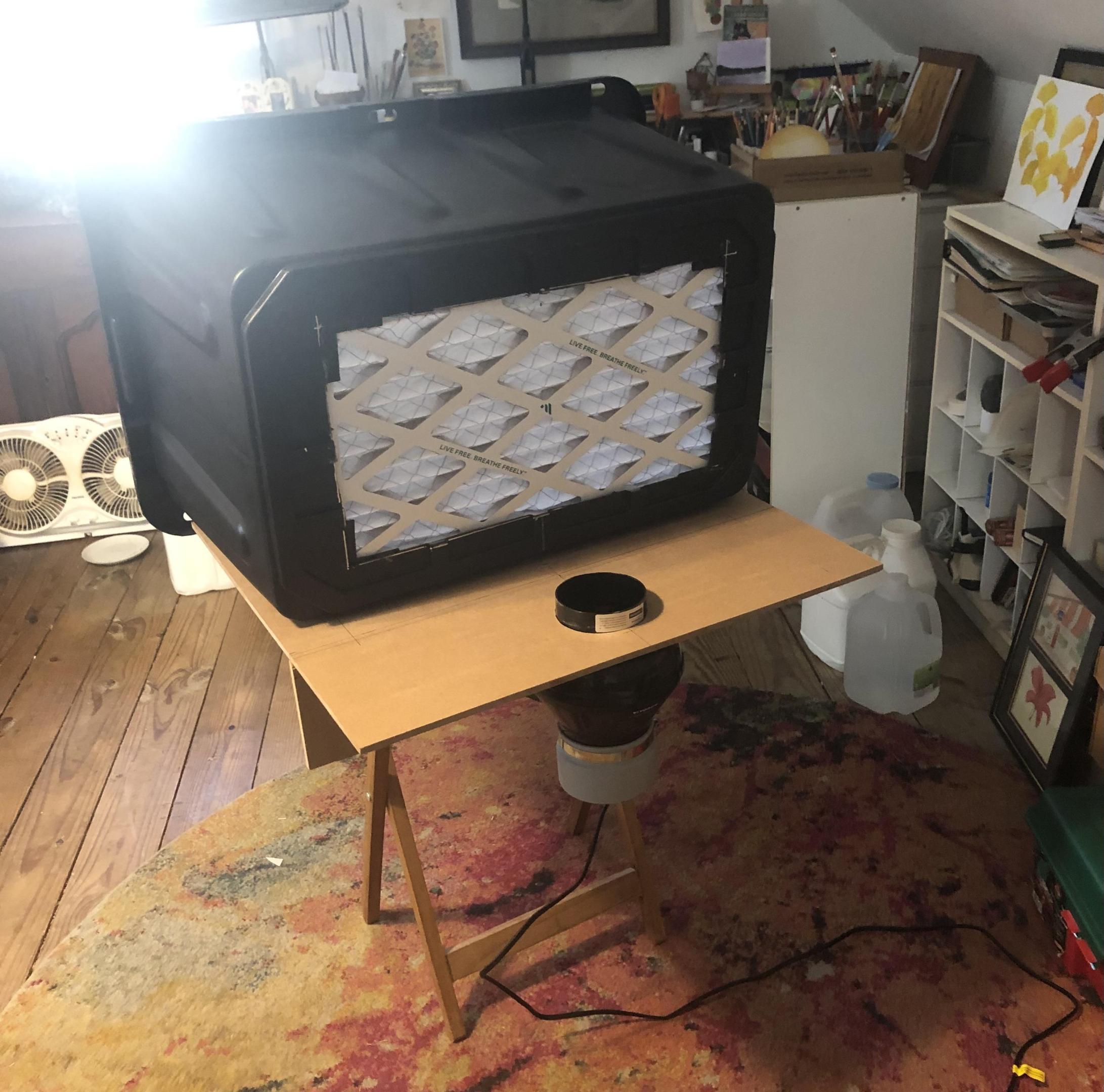

27 gallon storage bin.

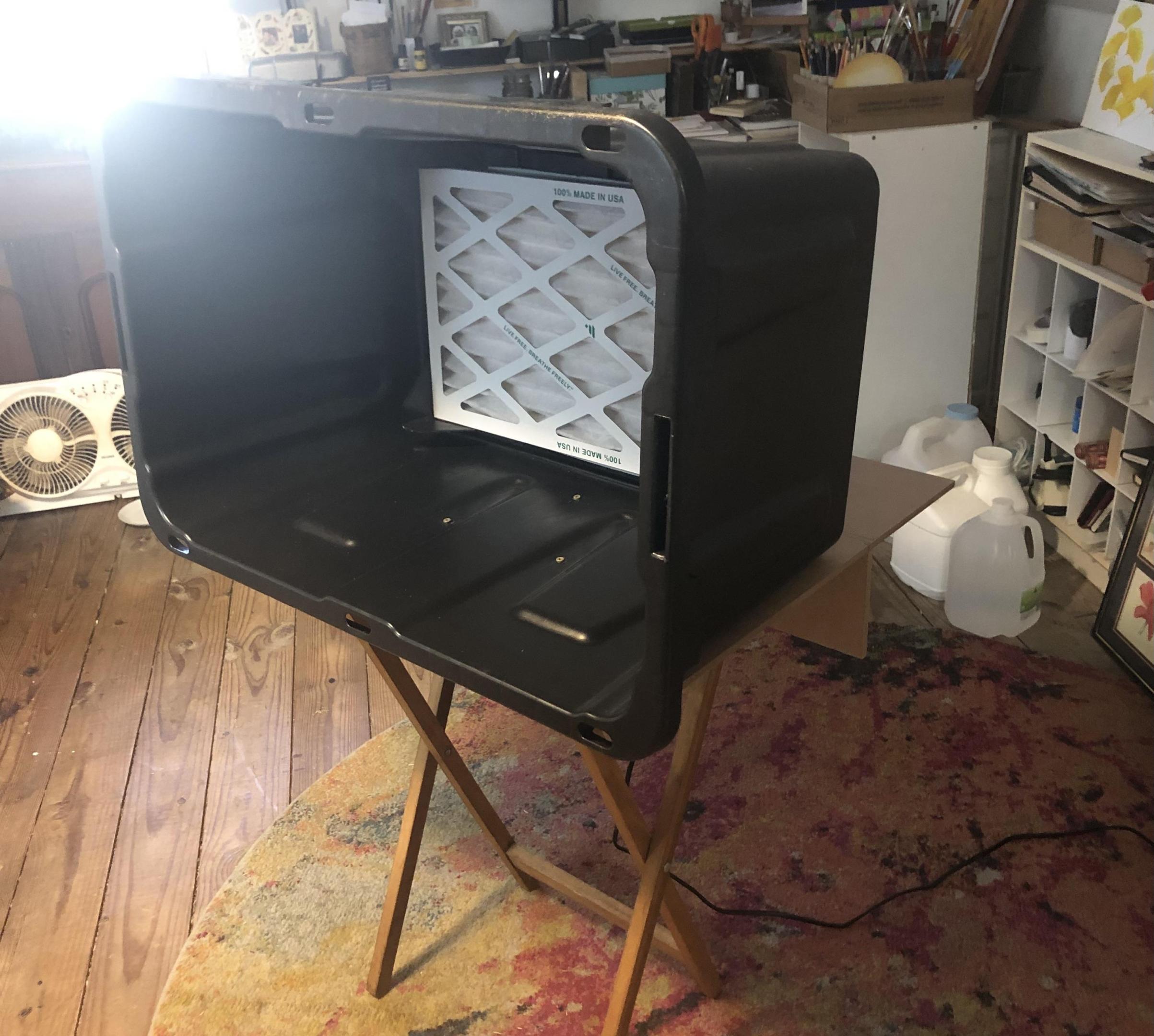

12/20 filter.

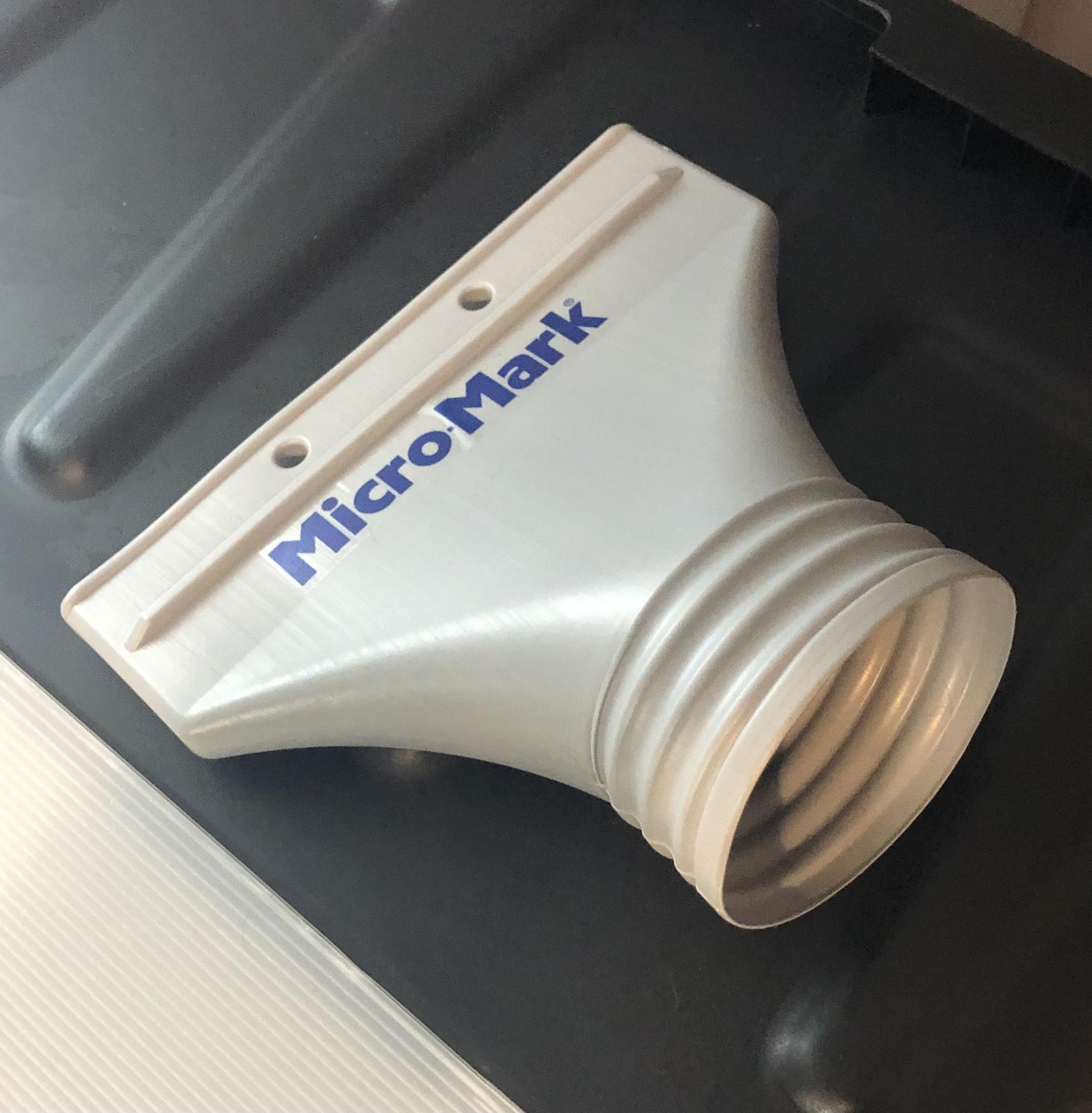

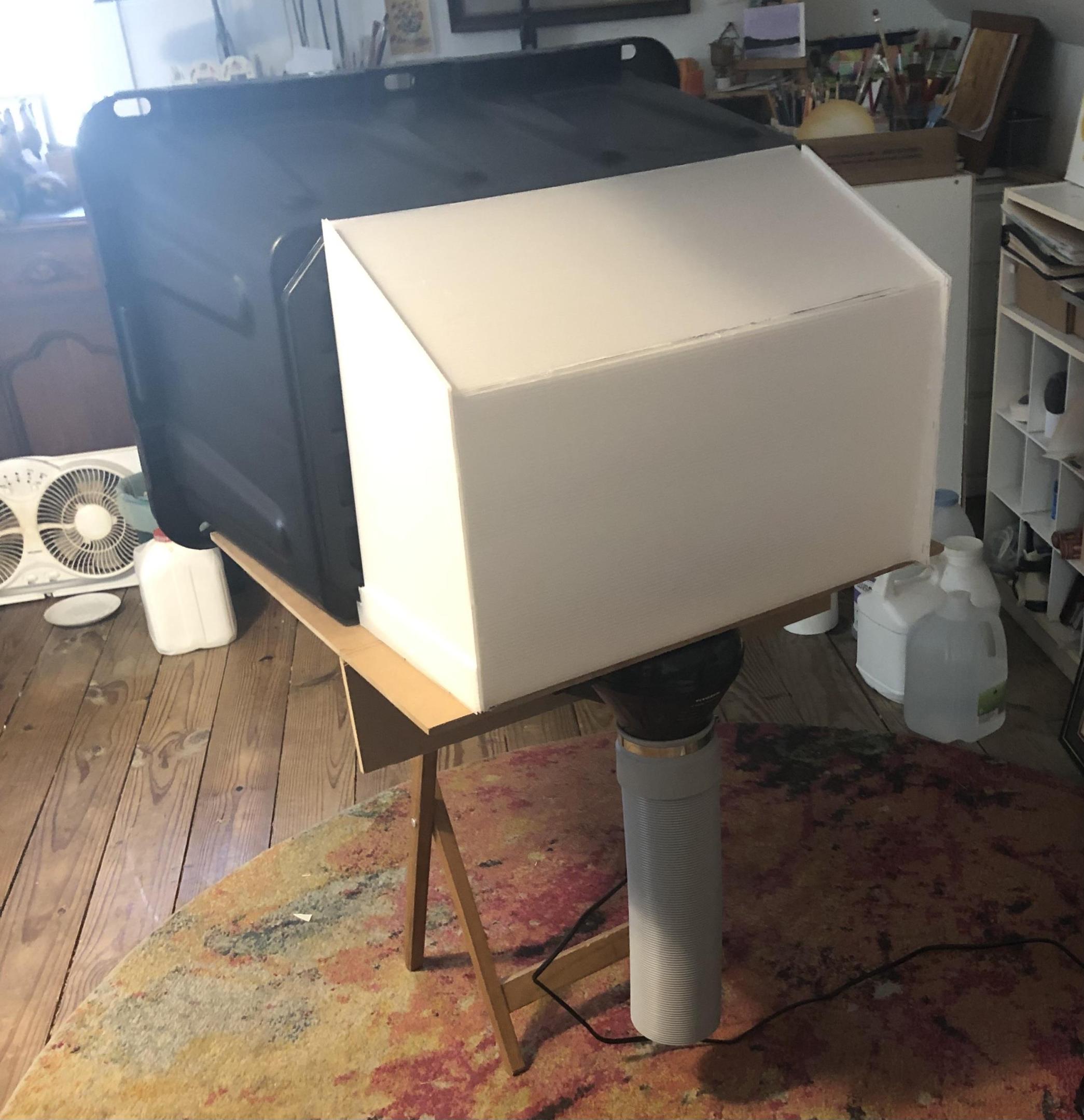

Hose will go to window thingy

[CrashK]

Be wary of inline fans, as paint solvents are often flammable and presence pf a spark from a motor may result on rapid oxidation. flames or explosion risk

[Camaro lover]

  On 12/15/2023 at 10:13 PM, CrashK said:

Be wary of inline fans, as paint solvents are often flammable and presence pf a spark from a motor may result on rapid oxidation. flames or explosion risk

Expand

Marine bilge exhaust fans tend to be less expensive than those sold for paint booths. The marine versions are made to handle fuel vapors and are more than adequate for our hobby.

[Bills72sj]

Very low parts count and practical. Well done! You could maybe make it portable and have everything fit IN the bin for transport.

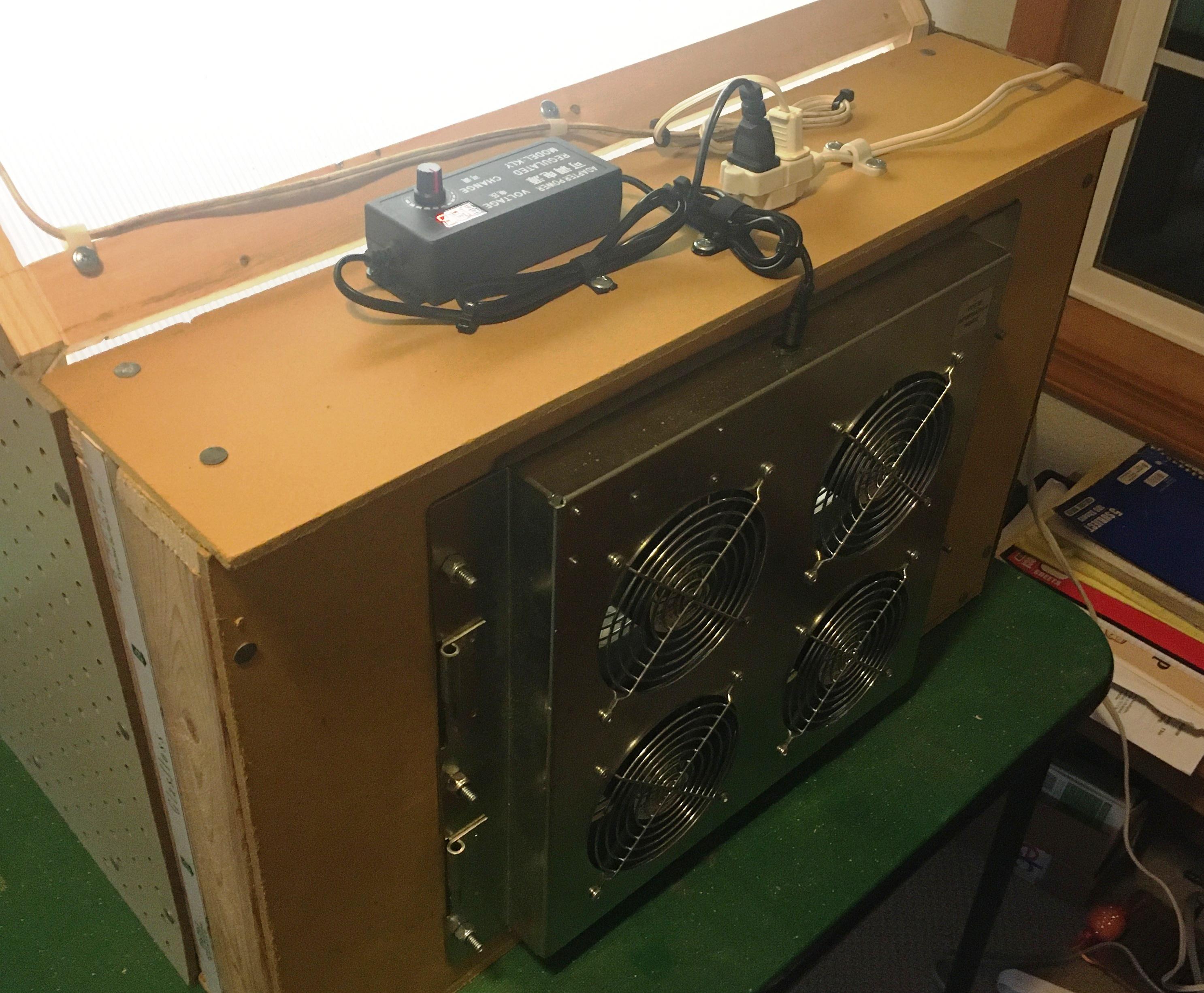

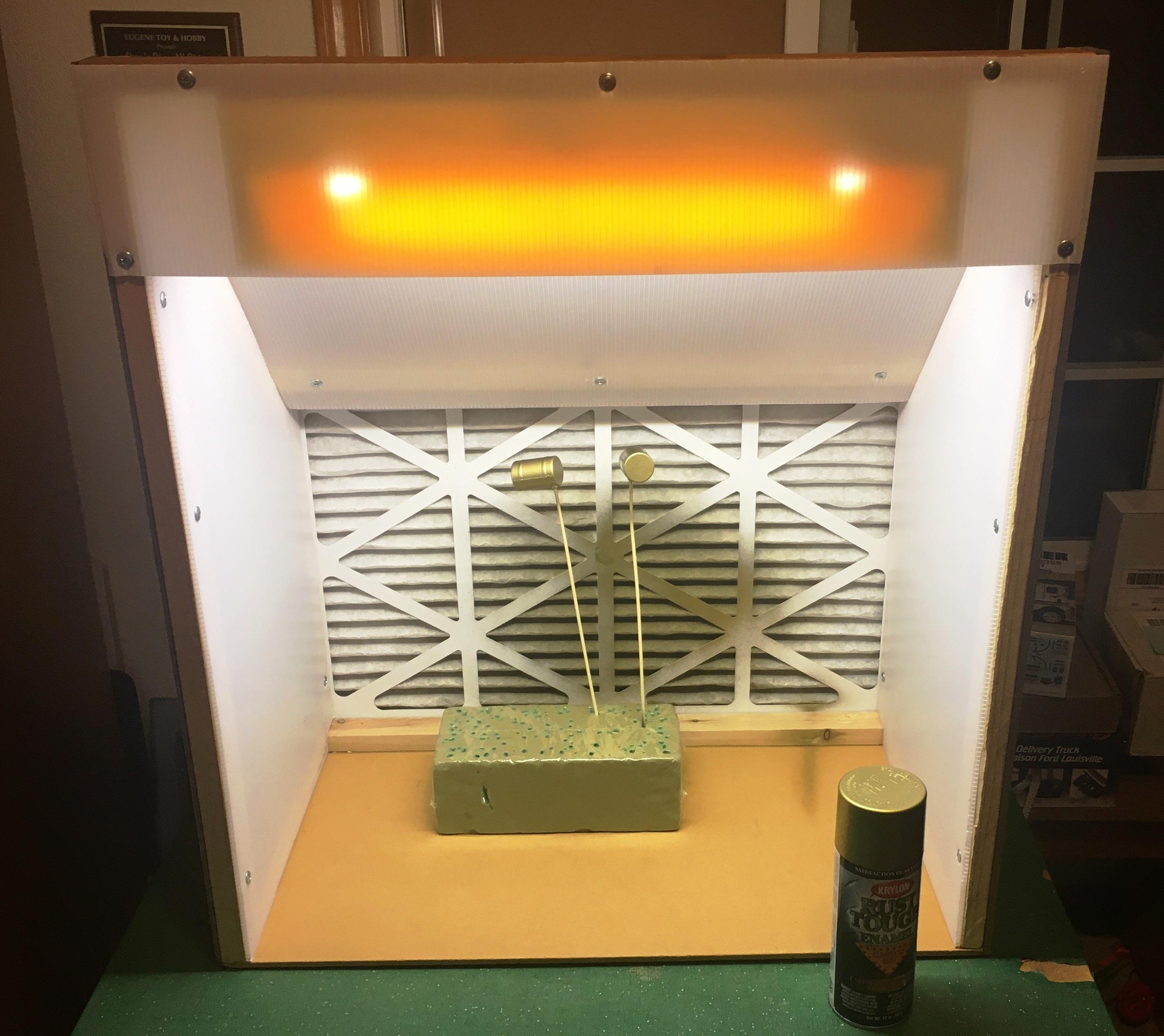

I wish the one I made was as simple.



[stitchdup]

Nice work, i like that you can put the lid on when its not in use to keep it clear of dust

[Holeinthehead2]

Thanks for the solvent tips. I use acrylics so less concerned with vapors/fire. Fan was $30. Good enough for me.

[bobss396]

As a kid, I used a cardboard box with a side cut out... perched on top of the washing machine in the basement....

[Holeinthehead2]

Started with a cardboard box too, last year

[TarheelRick]

My first spray booth, back in the middle of last century, was a cardboard box on my bed. I did spread newspapers around the box to protect the bed-cover. Also taped a piece of paper over the top of the box to drop down as a cover when I finished painting.  Mom kept a close eye on me to make sure I didn't paint the bed-covers.

[Ace-Garageguy]

Nice DIY booth.

Just a reminder...most dust or FOD in a paint job done in a booth comes from the painter's clothes or stuff that's dislodged from the booth itself.

Blowing out the booth with the exhaust fan(s) running, and blowing your clothes off prior to painting...on real cars as well as models...is important.

Keeping the area in the vicinity clean helps too, as dust dislodged by movement near the booth is easily sucked in to it by the fans, and it, of course, can land on the model.

Edited December 22, 2023 by Ace-Garageguy

[Nosferatu]

Look for brushless motors or fans as they don't make sparks.

Dave

[bobss396]

  On 12/22/2023 at 1:43 PM, Holeinthehead2 said:

Started with a cardboard box too, last year

Expand

I needed to shoot something quick earlier in the year, it was raining out. I put a cardboard box on the kitchen garbage can, 1 side and the top open. It worked in a pinch.

One guy who lived close to me, he did a cardboard box set into the open window where he rented. Just 4 sides and it worked. It stuck out enough so paint wouldn't get on the house.

Another guy, also in an apartment had a cardboard box one, put together with just duct tape. That had a fan and an apartment type clothes dryer vent/trap on it. He used it at his kitchen table.

[Holeinthehead2]

Yea, I relate. My window is 15ft away
