Hardcastle & McCormick Coyote

[Scale-Master]

This is the reissue of the older MPC kit.  The IMC Avenger got me going on a kit-car kick and while the enamel paint on its body is curing I started on this.  The original first season car bodies were inspired by (partially copied from?) the Manta Montage, and while this kit looks more like them than the second season cars (built off DeLoreans), it is not all that accurate.  Plus there are not so subtle differences between the various cars.  So I'm not too concerned about making an "exact replica" since this kit can't build one without a lot of work.  I'll use the same basic curbside approach on this as I did on the Avenger (and the STP Turbine Lotus from a few months ago) due to the type of kits these are.



The first step was to repair the defective edges of the engine cover and main body where they fit together.  While the two parts looked OK, the edges were very soft and uneven.  Filler was required to square up the faces that make the panel lines between them.

Next was to get the little piece of the top of the engine cover (over the rear window) cleaned up, with all those annoying sink marks, and then fair it into the main section.

Before I cemented the engine cover to the body I built up the basic tub and installed magnets to it and the body.  Nothing at this point fit true or square so liquid cement was instrumental to allow adjustment for alignment.

Now that I had a solid body to chassis mounting system I glued the engine cover to the front body section to be able to address the uneven issues where the upper and lower meet as well as the inconsistencies of the two upper body sections.



[vamach1]

Someone at MPC product planning must have said that Ford MKIV chassis could pass for a VW based kit car chassis.  It’s not like kids buying kits would know was the thinking at the time I guess.  Another source says they used a modified VW engine and not one from a Porsche.  The sound was dubbed in to make it sound more powerful.

This YouTube video corrects a lot of the misinformation about the cars.





Edited January 26, 2024 by vamach1

[Scale-Master]

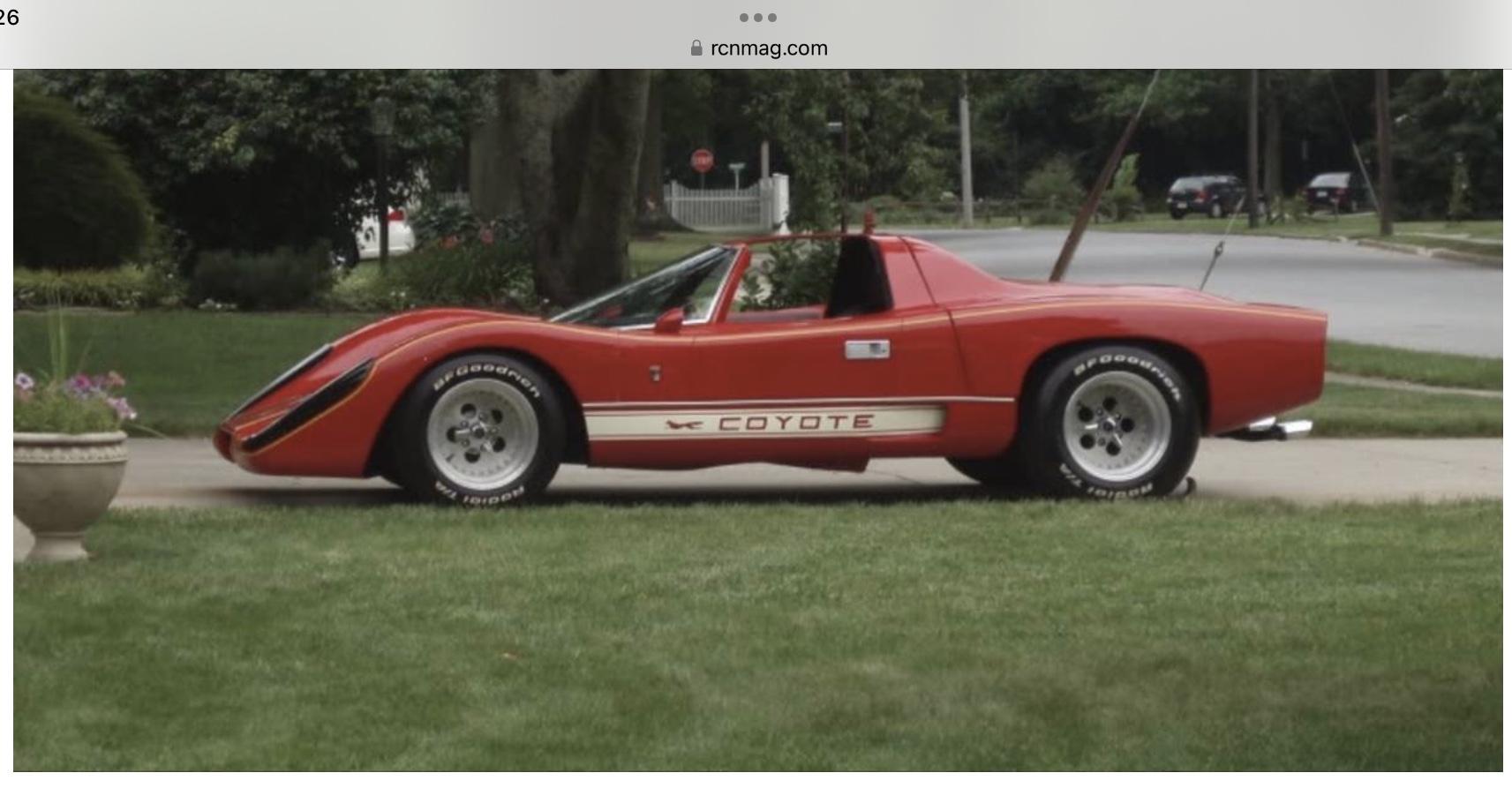

Yes, that is one of the better info videos.  You can see the difference between the first and other season cars in the two photos you shared.

[Moparman18064]

I fell in love with the wheels on that car, so much that I put Champ 500s on the Cuda in my avatar. Cool build, will be watching

[Scale-Master]

13 hours ago, Moparman18064 said:

I fell in love with the wheels on that car, so much that I put Champ 500s on the Cuda in my avatar. Cool build, will be watching

I wanted a set for my real '73 Camaro back then too, but they were out of my budget.  Wonder what a nice set would be worth now?

[Rich Chernosky]

Mark,  another one of your builds I will be following.  I built this one many moons ago. Like Rex said, I found it interesting that they used the  Ford MKIV chassis . Some good info there though.  I painted mine to look like a Coyote in browns and tans.  Its buried somewhere in the moving boxes so no picture.  Will be cool to see what you  do with it. Nice progress so far.

[Scale-Master]

There were a few areas that were too low where the engine cover and body meet.  Rather than sand the surrounding high parts down, I filled them with 0.015 sheet styrene and featheredged them.

[Scale-Master]

After I reshaped the rocker panels to follow the contour of the lower edges of the body, I fitted the rear scoops to the tub using magnets to make painting easier.

[Scale-Master]

Next I built up the engine and suspension.  Since the tub wasn't true, nothing related to the suspension was square or true and the wheels did not line up the same in any of the wheel wells; so that was fixed.  The front to rear, height and track had to be set individually for each corner.   Yes, it sits lower than the cars on T.V., but since it's not an accurate model why not improve the stance aesthetically?  Now it's time to get back to the body prep for painting.

[Scale-Master]

I used some older Testors Model Master enamel Italian Red for the body; it's about the same age as the kit.  It went on almost as well as the older green enamel I used on the Avenger, and it was also reduced with lacquer thinner.  It will have to cure for a while more even though it's been drying for a few days now already.

[Scale-Master]

It's nice that the kit includes BFG Radial T/A tires and the tread is clearly identifiable as the second generation design.  The sidewall detail however is bold and at the same time on the soft side and out of scale.  (I still have a real set of BFG's to compare to.)  I'm not too concerned if the tires are not the correct sizes for the car.  I used Tamiya LP-4 Flat White to hand paint the lettering.  It sticks amazingly well and flexes like an acrylic; I was even able to mount the tires to the rims after painting.

[slusher]

Beautiful paint looks just like the tv car color!  Great touch on the tire lettering also!

Edited February 6, 2024 by slusher
Typo

[peteski]

Looking good Mark.

Are those tires the same as what ARII sells in their wheel and tire sets?  Those have the proper tread pattern but the sidewall's shape is a bit wonky.

[Scale-Master]

No they aren't.  The set of BFGs I have from them are bigger/smaller, not hollow, more rubber-like and have a better tread pattern.

[Scale-Master]

After a polish and wax (no clear coat), it's time to add the other details to the body.  These older enamels are still very good paints, they just need more dry & cure time compared to the newer lacquers.

[Leo64]

Mark,

It is nice seeing the work and improvements you've done on this old kit.  I always liked the look of the original car, and have a couple of kits in my stash, so I'll have to save the improvements you've done for when I finally get around to building it.  I went online to see if anyone happen to have a 3D file of those Champ 500 wheels, and was surprised that there wasn't much out there considering how popular they were when they came out.  Maybe some one will come out with a nice 3D file sometime soon.  I know there is some nice BF Goodrich tire files out there already.  Anyways, I can't wait to see what else you do to this build.

Steve A.

[Scale-Master]

Thanks Steve,

I could CAD up the wheels and since they are not supposed to be chrome 3D printing them would quite well.



I used the kit decals for the stripes, but they had a matte sheen so I polished them while they were still on the sheet before applying them.  When applied they responded to decal solvent well (to wrap around the front edges) but are somewhat fragile.  I made new exhaust tips from aluminum.

[Scale-Master]

I shot the headlight covers with Tamiya Smoke and assumed the headlight detail in buckets might be visible so I painted and installed those parts.  Maybe with a flashlight the headlights are visible…

All the clear parts fit pretty well.

The taillights were done with Tamiya acrylics and foil.

[Brandon Miller]

Just throwing this out there. There is a company that has just started making fiberglass bodies that rrplicate the season 1 Coyote.
