Tri 5 Chevy Identification Charts

[Kenmojr]

Source of these charts is Classic Industries

https://news.classicindustries.com/tri-five-chevy

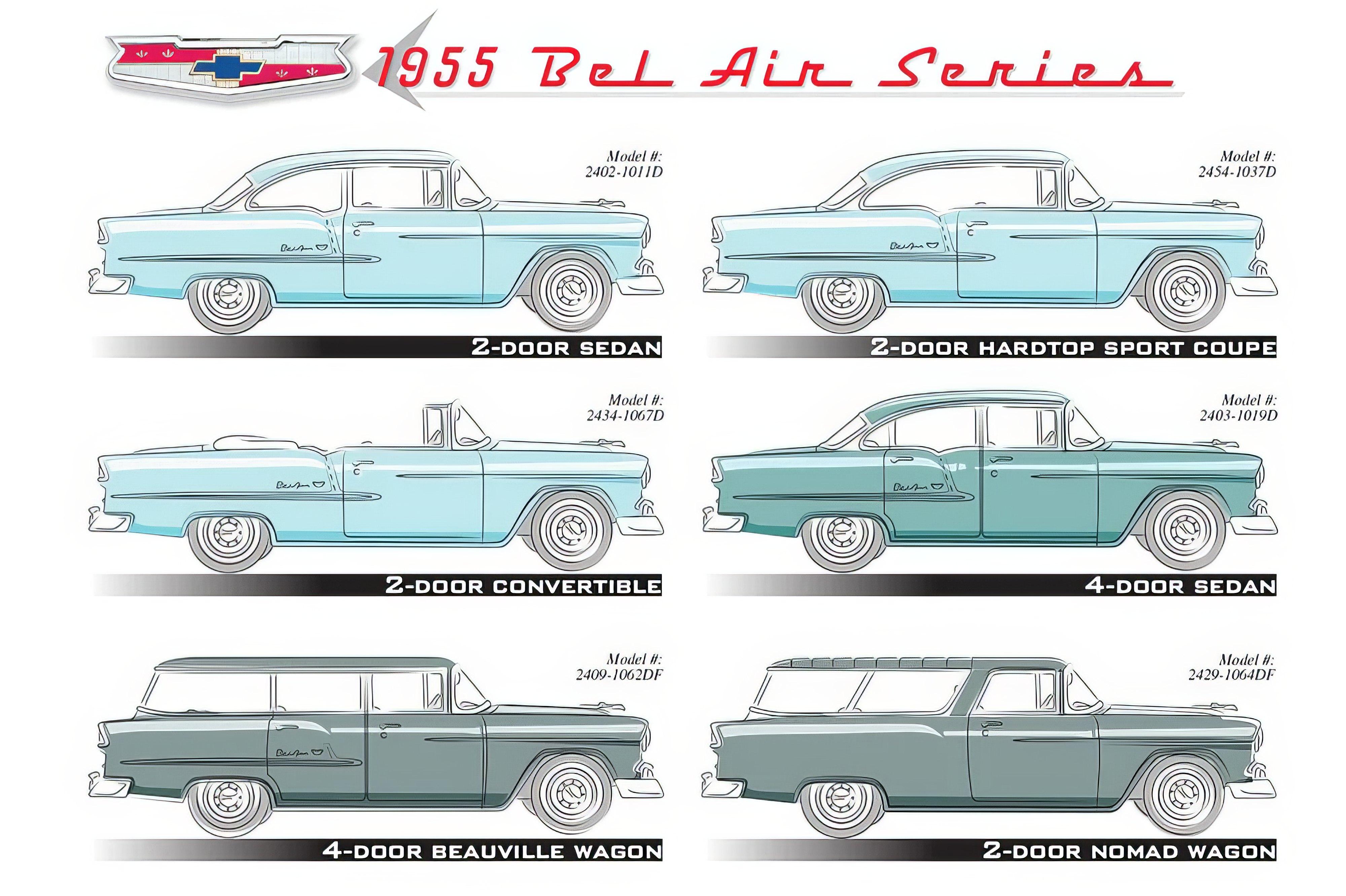

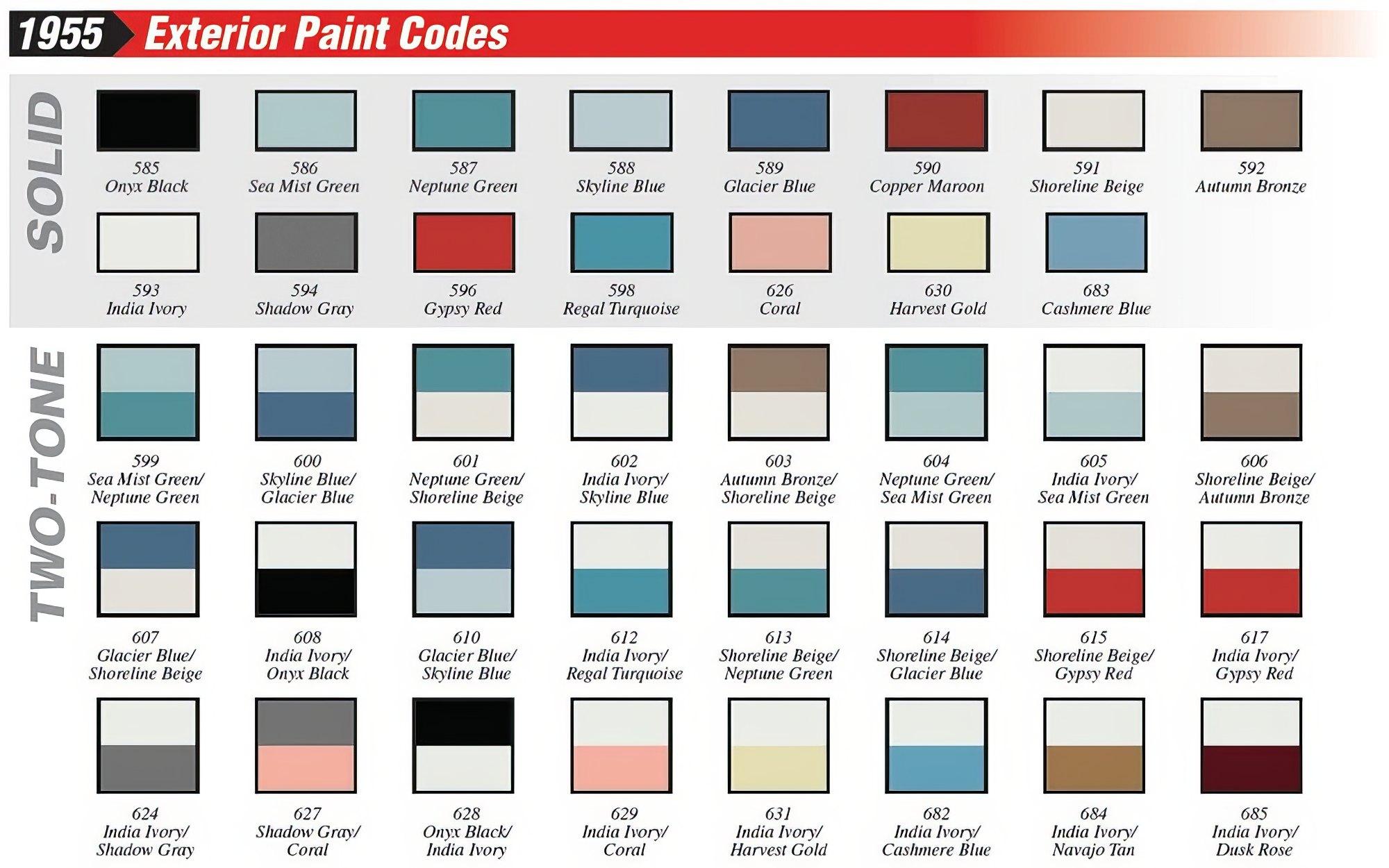

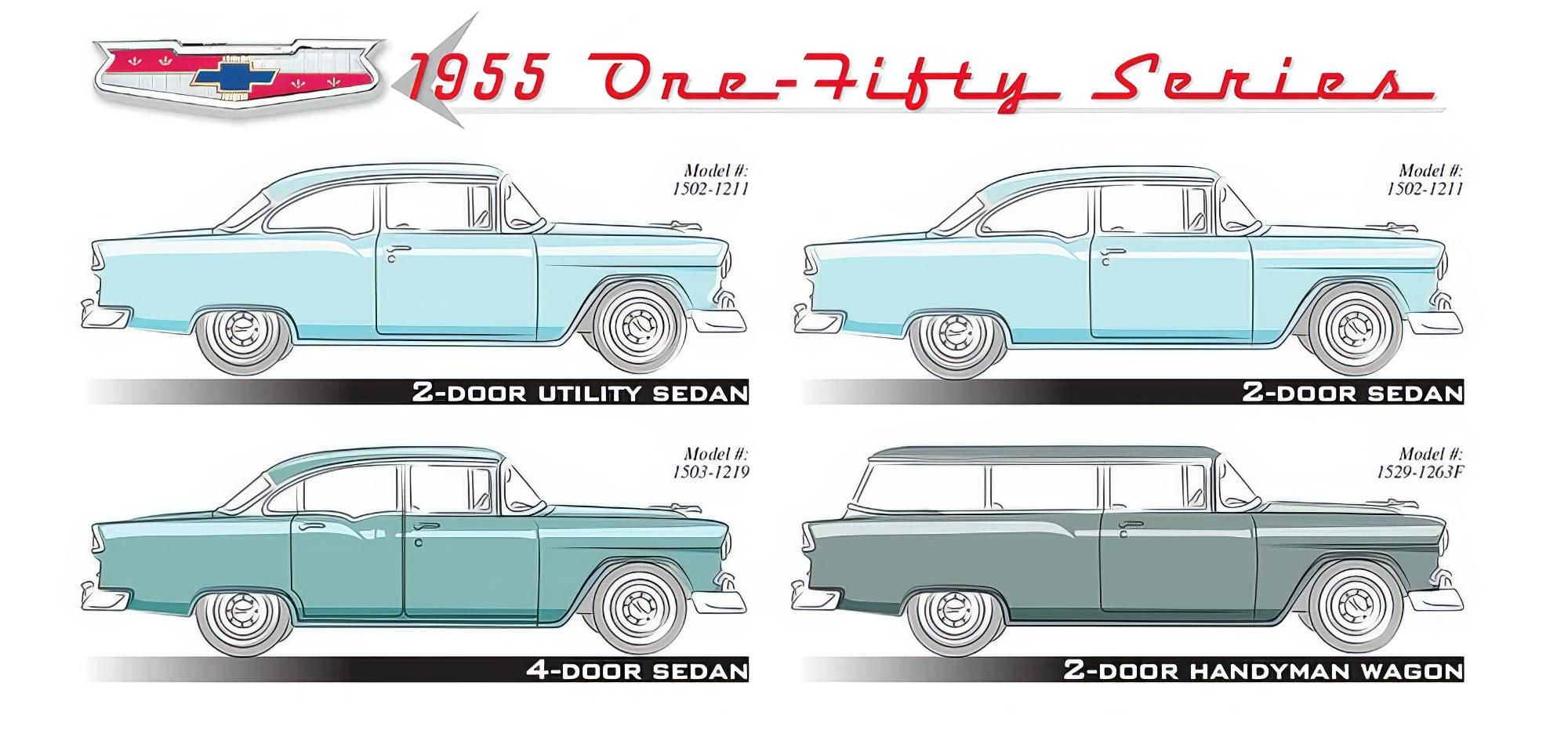

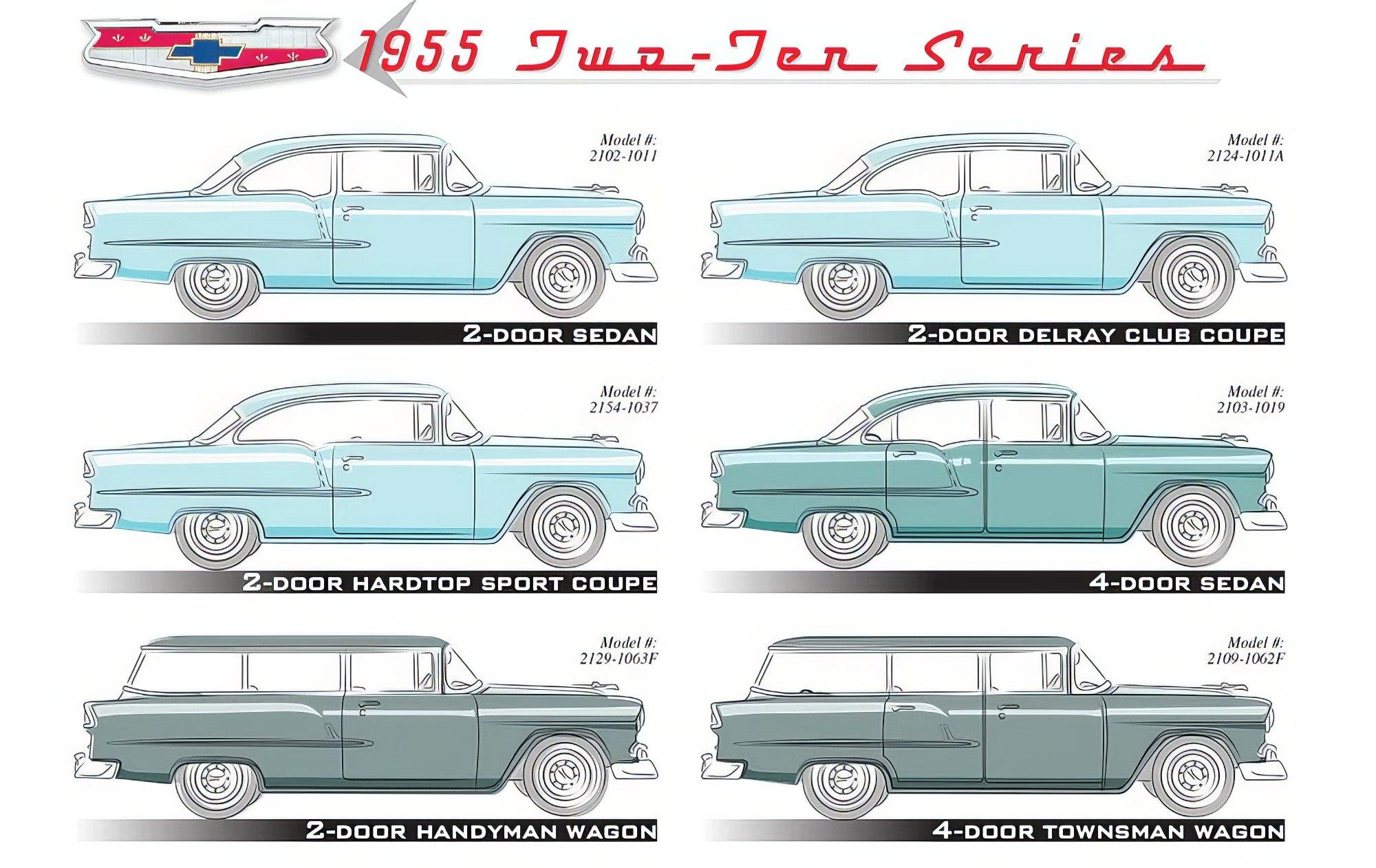

1955 Chevrolet



[Kenmojr]

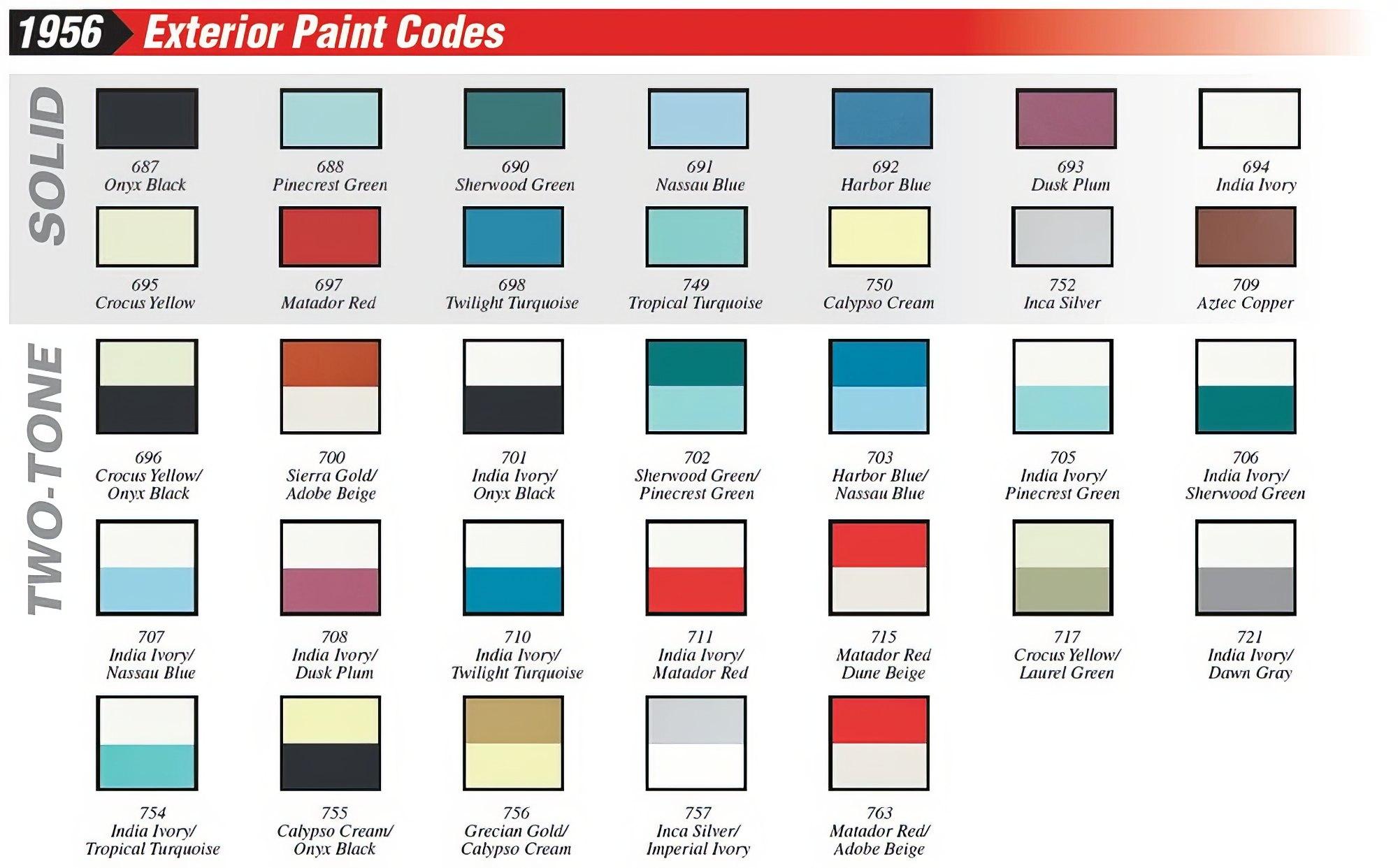

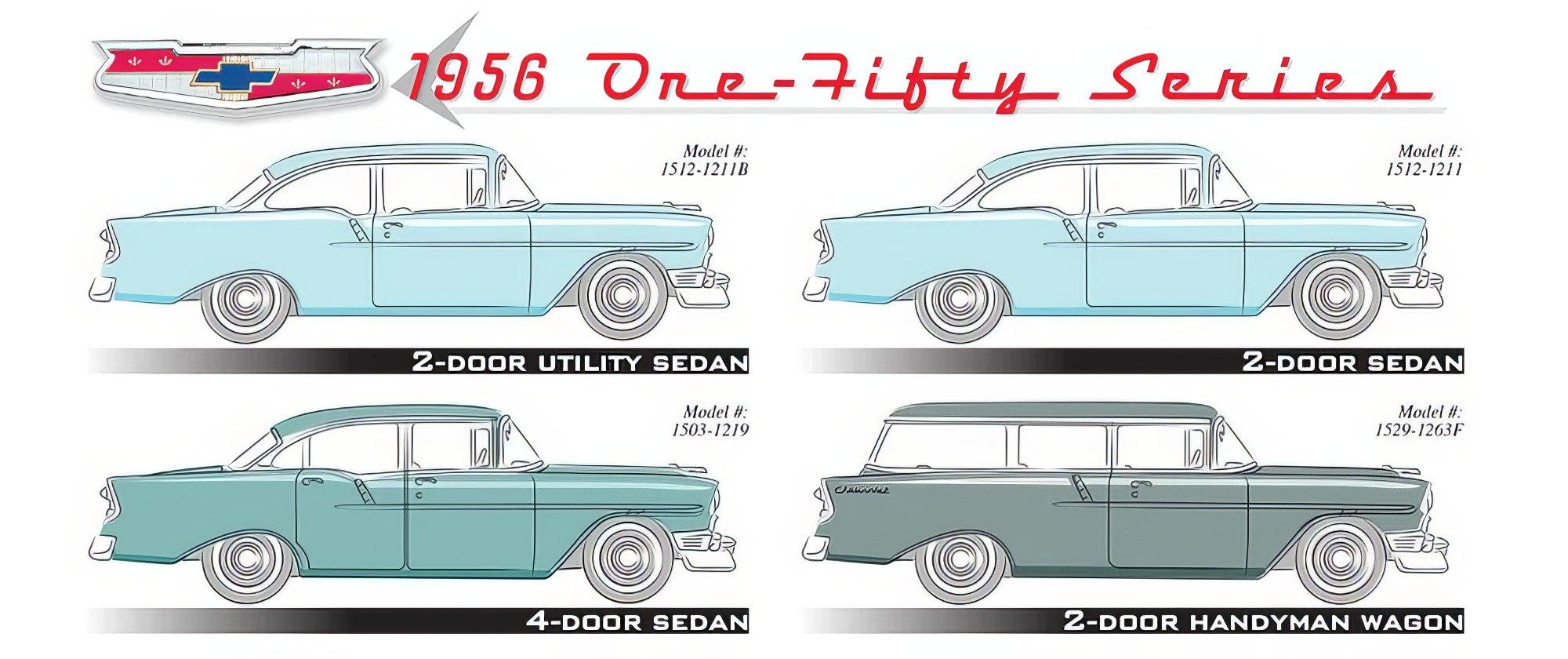

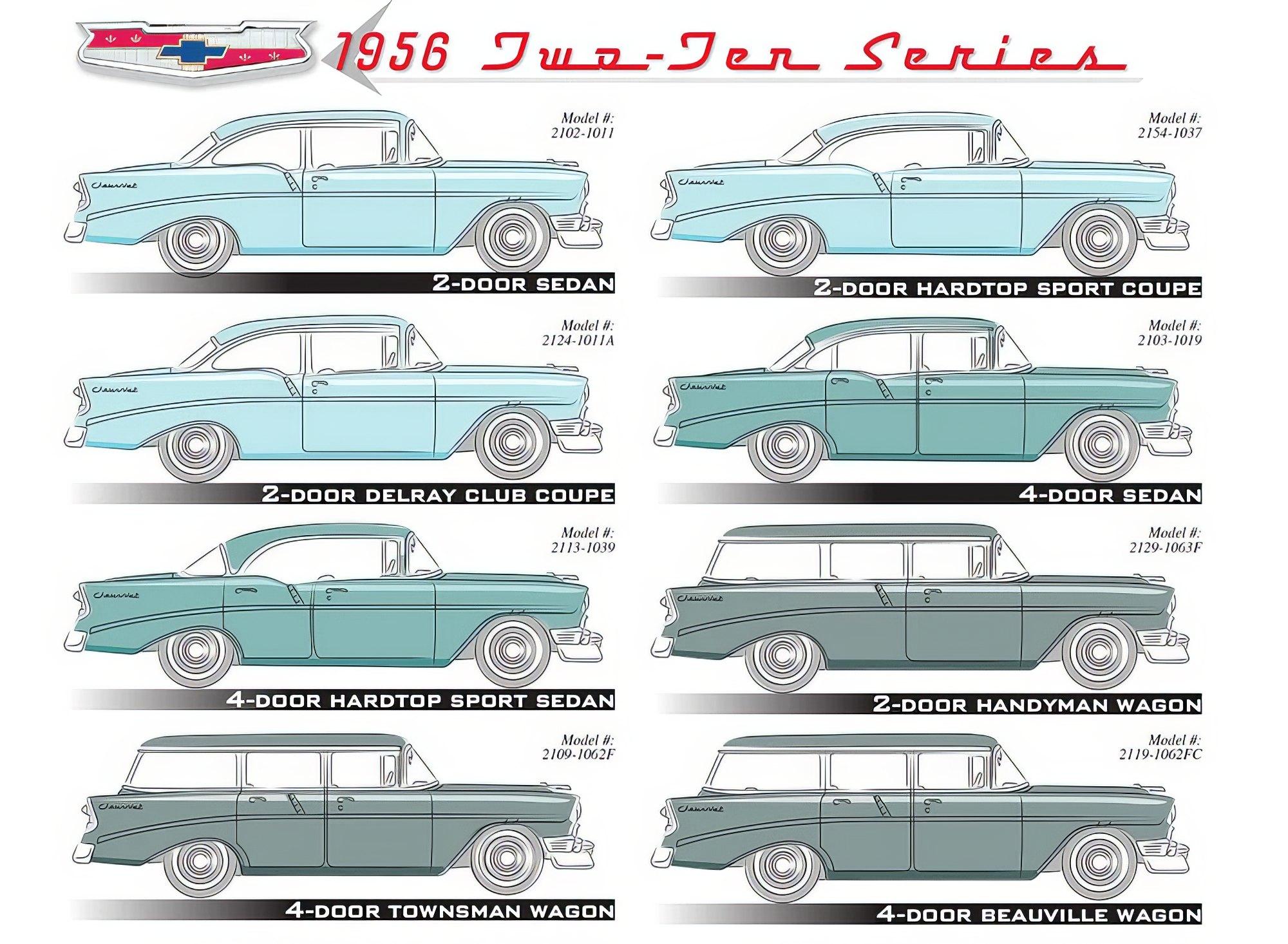

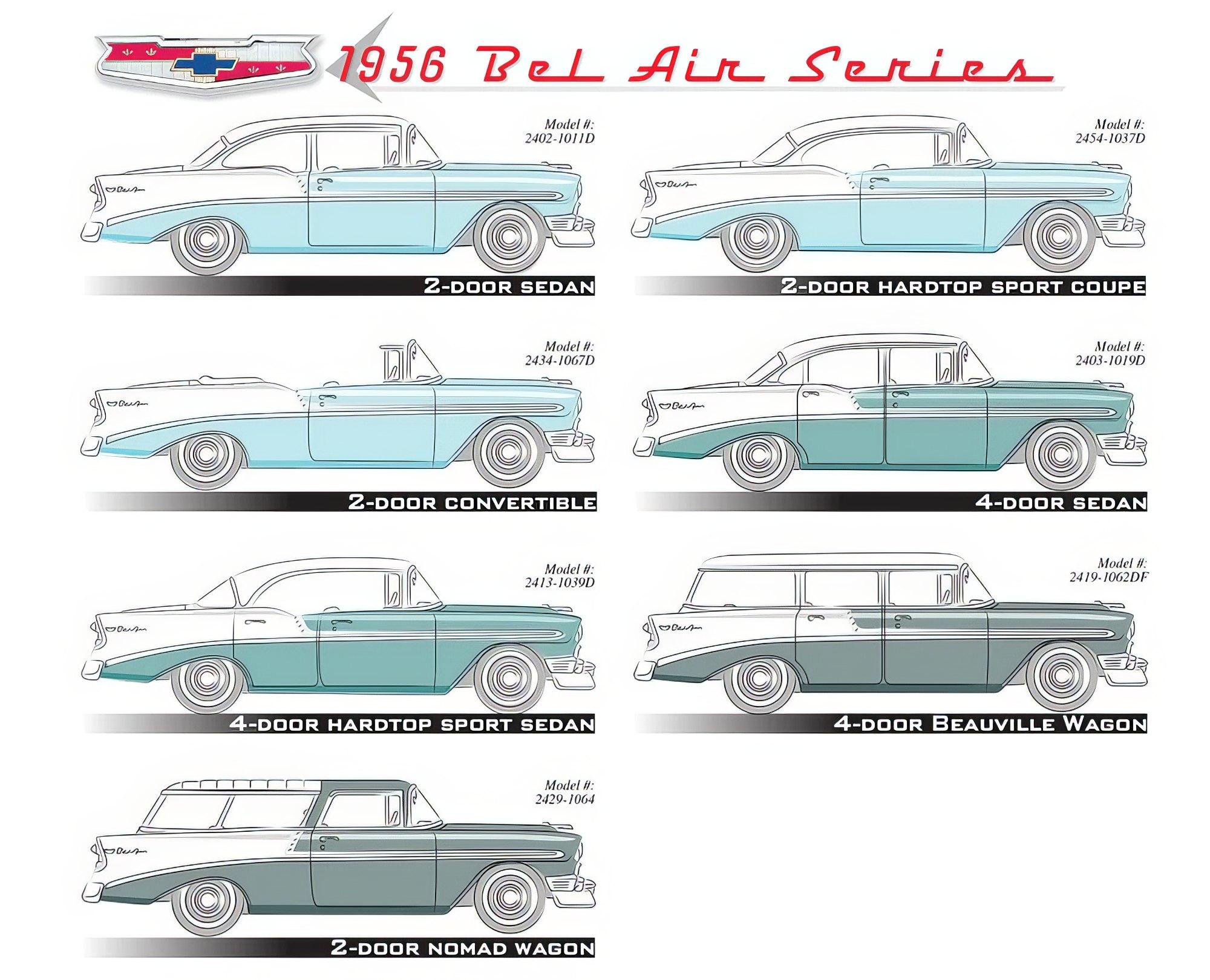

1956 Chevrolet

[Kenmojr]

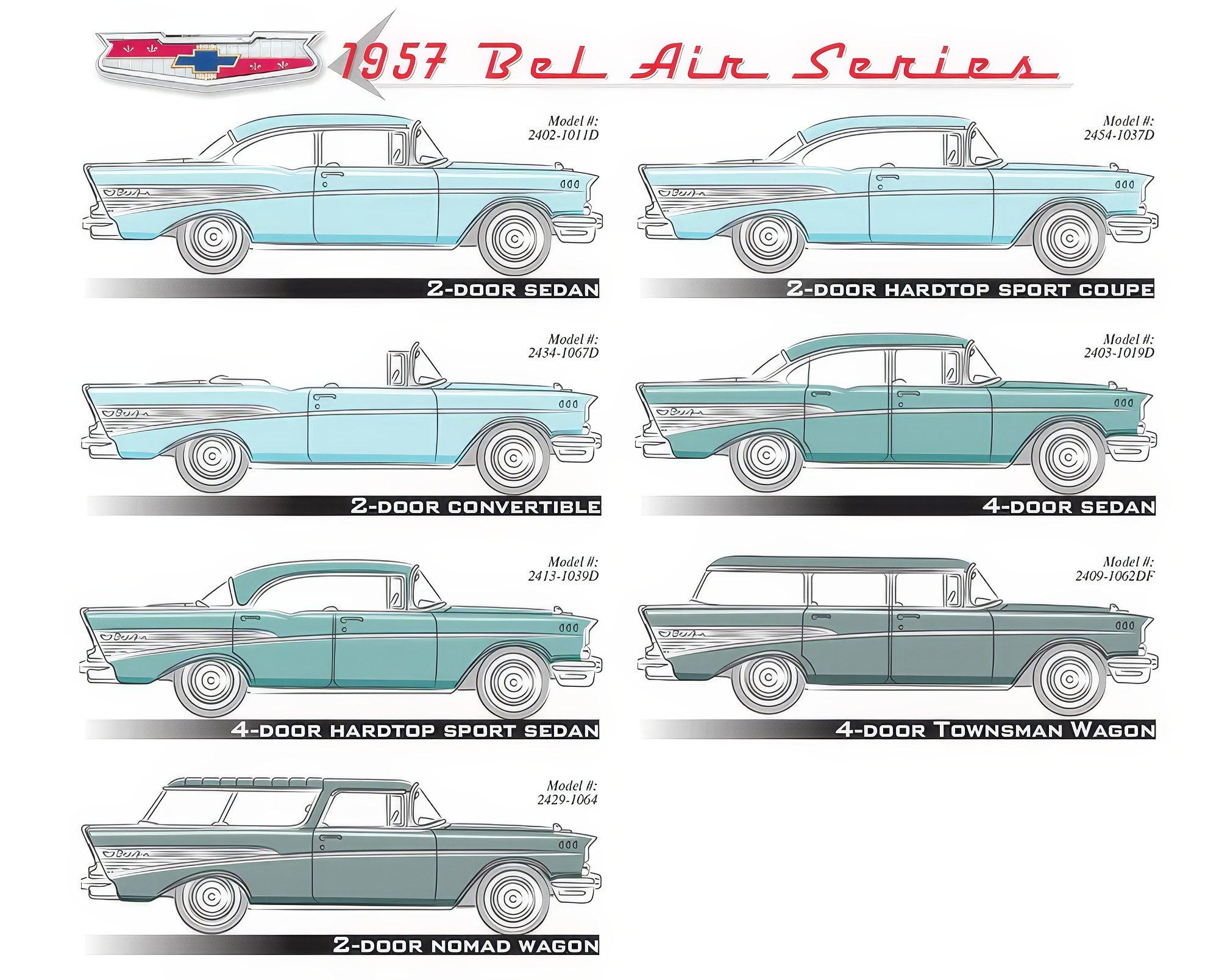

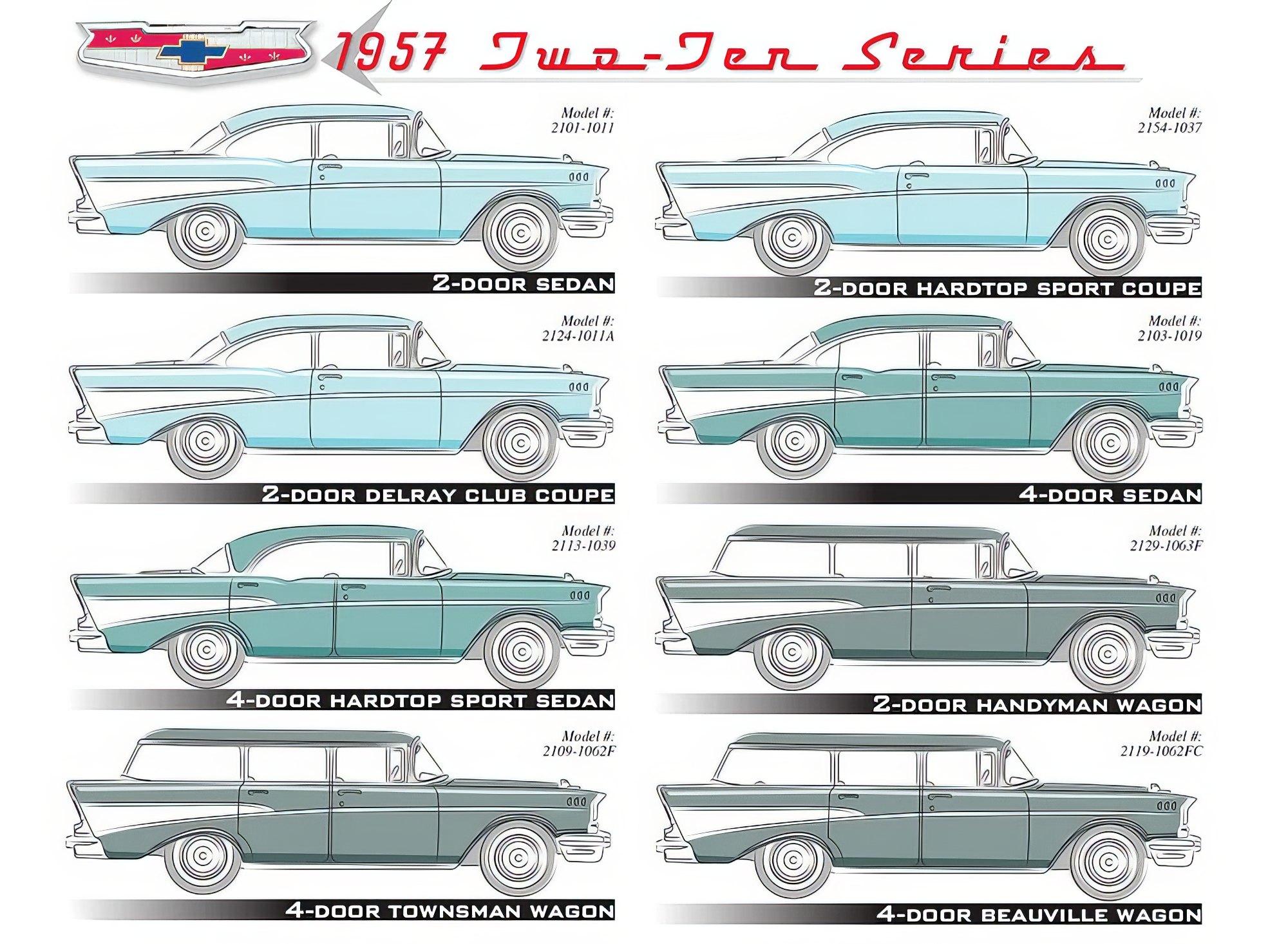

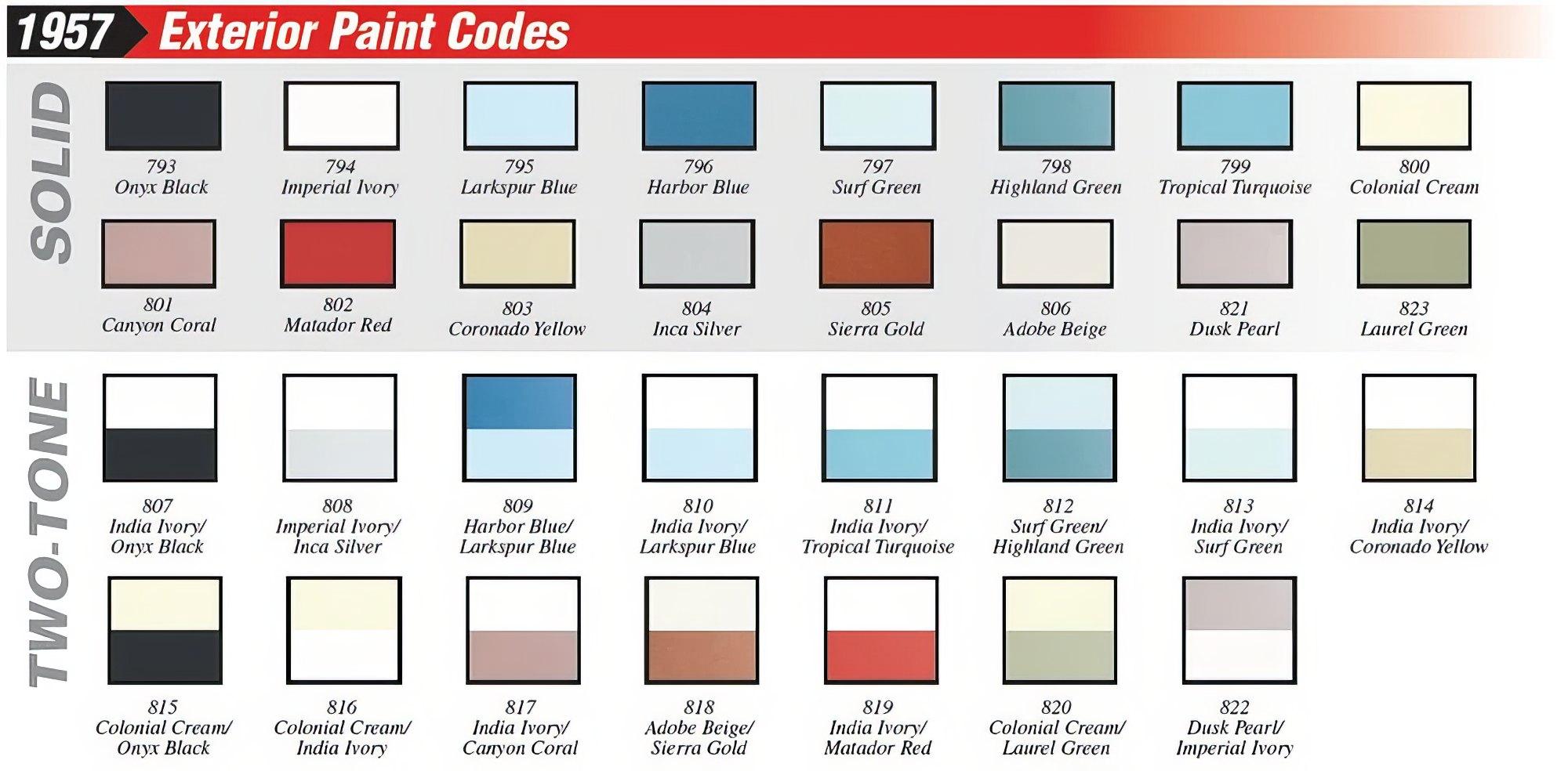

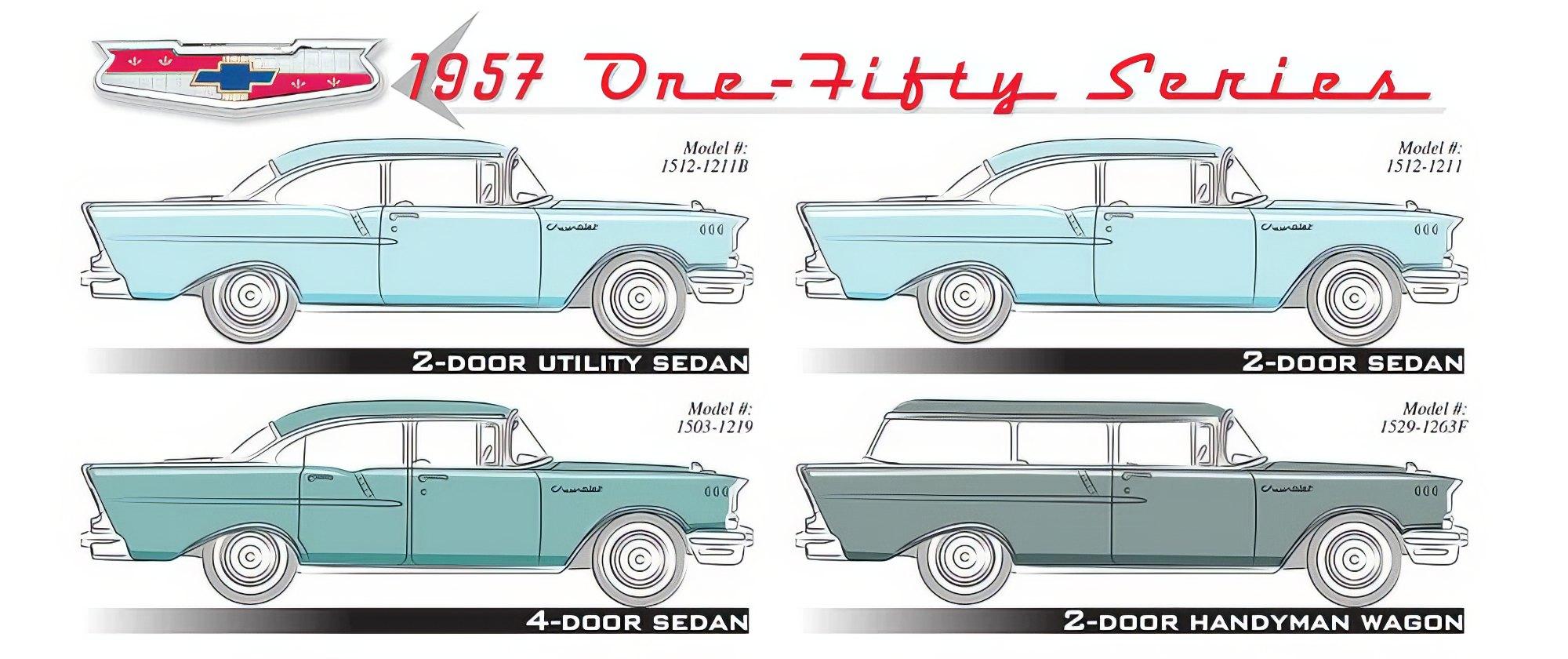

1957 Chevrolet

[ksnow]

I am definitely saving those, thank you very much.

[FoMoCo66]

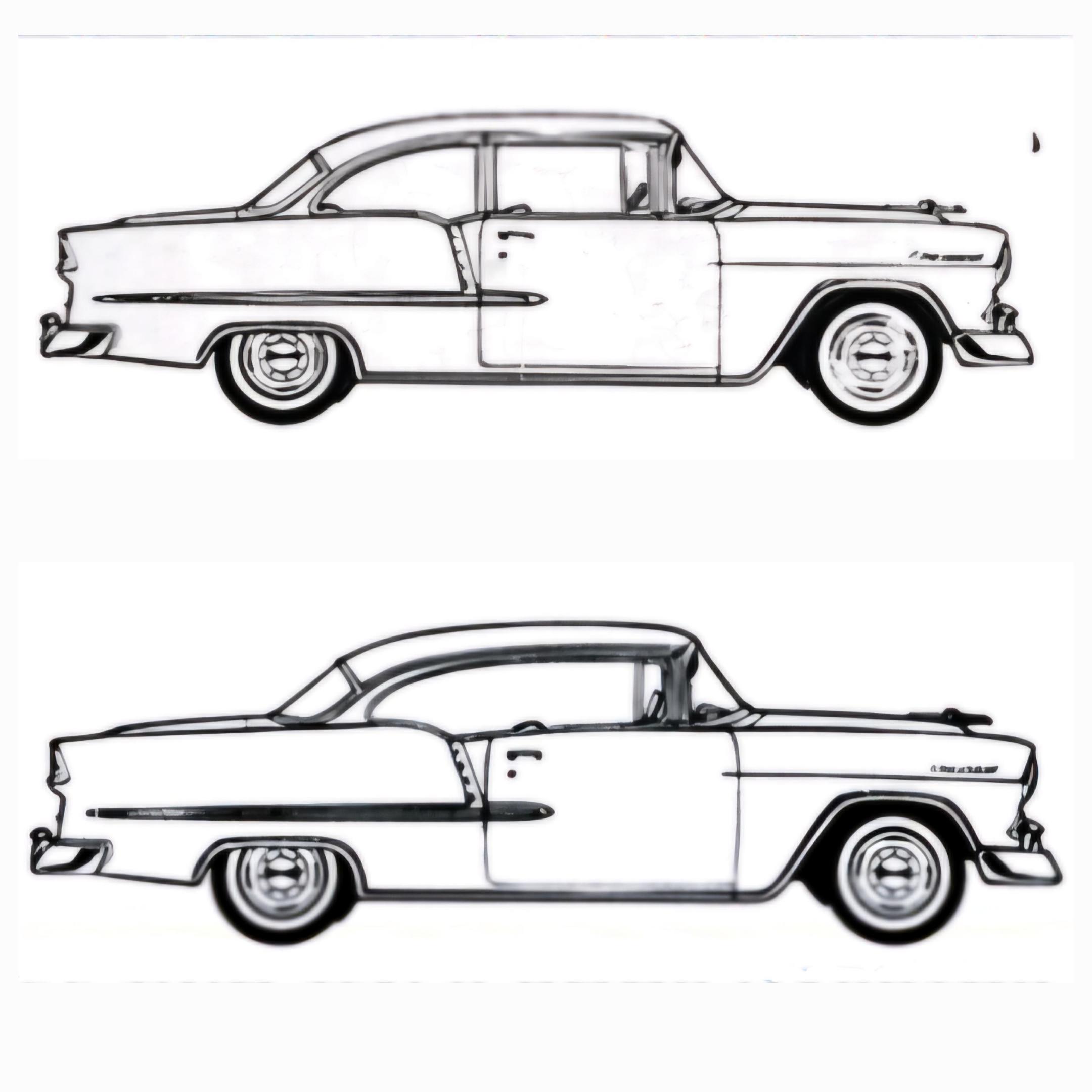

Nice, I'll use these to. The only thing is I noticed a mistake in the 55 and 57. On the hard top the roof line is different than the post and so is the top door line.

[Kenmojr]

No problem, my pleasure.

[Ace-Garageguy]

Good refs. Thanks.

[sfhess]

3 hours ago, FoMoCo66 said:

Nice, I'll use these to. The only thing is I noticed a mistake in the 55 and 57. On the hard top the roof line is different than the post and so is the top door line.

Also the 55 Nomad has an incorrect rear wheel opening.



[Mike 1017]

Thanks for posting this. The paint colors are great                                                                                        Mike

[Kenmojr]

On 5/31/2024 at 2:16 PM, sfhess said:

Also the 55 Nomad has an incorrect rear wheel opening.



It's hard to believe Classic Industries did not notice this error as they have had this charts on their site for quite some time now. Thanks for pointing this out. Cheers.
