Old Albion Posted November 30, 2006 Posted November 30, 2006 Hello Folks, A couple of weeks ago I was looking through the STS web site and was amazed to see that they have a Griffin Cummins KTA 600 Diesel Engine in the aftermarket parts. I promptly contacted Sharon at STS and ordered 2 plus a couple of other items. I recieved all items within a working week, which I thought was brilliant. The detail in the resin parts is really very good and I am very pleased. There is no photo or assembly details with the kit so I carried out some research on the internet and found some good photographs. But these are all of KTA 600's fitted to generator sets. The kit also comes without Fuel injection pump, fan, power steering pump and has two pulleys. Having looked at the generator sets I wonder if the engine is modelled of a generator unit rather than an over the road truck. I have the following questions and would really appreciate any help anyone can give. 1. Does anyone have any good photo's of the engine fitted to an over the road truck? (Or Video) 2. What year was it available from and to? 3. What weight was the engine? 4. In relation to question 2, did Peterbilt ever factory fit them to 359s (Little Window or Big or both)? or indeed any other model. 5. Again in relation to question 2 and 4 what colour where they? Would the truck require twin air intakes or would single be OK. The missing parts I can manufacture from raw materials. This is a very unusual engine and bears no likeness to other Cummins Diesels I have seen and appears to be a rarity. I will start to add photo's of the progress when I get around to starting it. Best Wishes and Thanks for reading. Dave Bates PS This engine is a monster!!!
Mike Cole Posted December 1, 2006 Posted December 1, 2006 I don't know how much help these will be but I have some photos of a KT in a truck. Click here and then look at the next three photos. I think I have some more someplace, if I can find them, I'll put them up.
Casey429 Posted December 1, 2006 Posted December 1, 2006 The KTA 600 was a great engine, the stuff of legend, raw power equivalent to that of a DD 12v71. They were installed in a numer of trucks including Pete's, KW's, Freightliner's, International's and Mack's. They also saw duty in construction equipment. They were so powerful, the only transmissions that would be warrented behind them were Eaton Fuller 8 and 13 speeds. The 600 could be installed into a 359, but it has to be an extended hood, to cram a big enough radiator in there. Other versions of the KT could also be had, the most common being a 450. A buddy of my dad's had a built KT in a 1980 Mack Superliner. It began life as a 450, but was fitted with a cam and turbo from a Mantiwoc crane, among other things. It put an estimated 950 HP to the road. It was replaced with a 425 Caterpillar a few years back after it spun a bearing, but it is a crated up and it may go back in the truck one day. Another buddy has two matching 1982 359's with KTs, and they still run to this day. One time an inexpereinced driver, who was not supposed to be in the truck, fried the wheel bearings on a trailer, locked the wheels up, and didn't even realize he'd done that. The trucks are that powerful. The engines were fitted in trucks up until the mid to late 1980's, I beleive. Nowadays they're fairly scarce, due to the high cost and low availabilty of parts. They're still very popular in truck pulling circles. BTW, I have one of those resin KT's myself, and am itching for something to stuff it into.
ultraliner13 Posted December 1, 2006 Posted December 1, 2006 Hi everyone, I do know of one Kenworth here in New Zealand that had the KT525Hp Cummins and was top of the range here for many years untill the horsepower race really started to gain ground here. Any chance of seeing photo's of the kitset motor? Cheers John Wilson
Old Albion Posted December 1, 2006 Author Posted December 1, 2006 Mike, The photos are brilliant, just the sort of detail I need! Is the twin turbo charger a "factory fitted" item or is it a later custom installed unit? Casey, Thanks for the background information. I had an hour or so last night messing around with the engine getting some ideas together. This engine will be planned for a 359 Pete. 950HP Wow!! thats a lot of horses. The construction and Use Regulations here in the UK recommends 10HP per Tonne for engines (10Hp every 2200lbs). So a truck plated for 40 tonnes will typically have an engine 400HP plus. Most new semi trucks are 420 Hp up to 520 HP. Volvo have a new 660HP engine available. I suppose the ideas behind the big engines are less gear changes, Slower revving, less driver fatigue, better fuel economy. Fuel economy is a big thing here in the UK. Diesel is £ 0.89 to £ 0.98 per litre so you can see why fuel economy is important. John, I will start to post photo's soon. Many Thanks guys, Best Wishes Dave Bates
Mike Cole Posted December 1, 2006 Posted December 1, 2006 Mike, The photos are brilliant, just the sort of detail I need! Is the twin turbo charger a "factory fitted" item or is it a later custom installed unit? Dave, Far as I know the 600s had two turbos, the 450s a single, if I'm wrong someone please correct me. Here's a pic of a friend's W900 with a highly warmed up 600 doing what it does best.
Old Albion Posted December 1, 2006 Author Posted December 1, 2006 Mike, The Kenworth looks a great truck well looked after. You would never know what was under the hood!! "A Wolf in Sheeps clothing." I,m thinking of building both engines together ready for future projects. Casey mentioned the transmission. Does anyone have details of the transmissions that were factory fitted with the engines into trucks? I can imagine that all drive line components will be of a robust nature and the frame will be substantial to handle the torque. Great response folks. Many Thanks Dave Bates

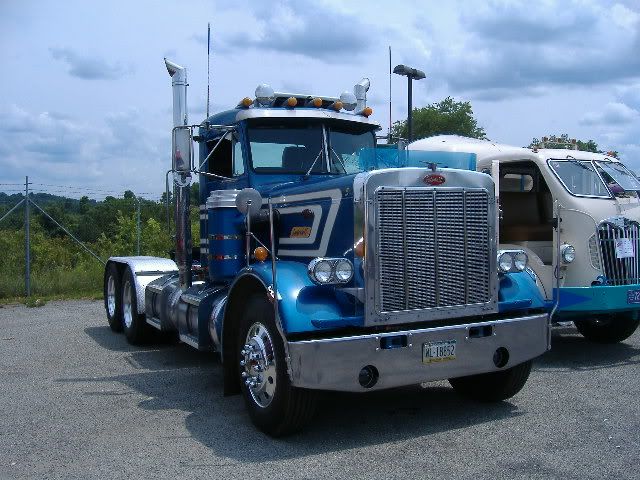

Casey429 Posted December 1, 2006 Posted December 1, 2006 Oh an I forgot to add, the Superliner was used to pull a 55 ton Rogers lowboy. It could pull a D9, completely assembeld and not break a sweat. Also, I have this pic of a 1977 Pete with a KT450, just to give some ideas.
Old Albion Posted December 2, 2006 Author Posted December 2, 2006 Hello Folks, I have made a start to the engines. No 1 engine is starting to take shape. No 2 engine has been washed in soapy water ready for starting. I have taken some photo's. Casey was right an extended hood is a definate. On one of the photo's it shows a Griffin Extended 359 Hood. I think I will still need a shoe horn to get it in. Both engines will be beige and will be weathered! http://public.fotki.com/oldalbion/cummins-kta-600-die/ Best Wishes Dave Bates
SpreadAxle Posted December 3, 2006 Posted December 3, 2006 It usually takes a special truck, meaning extended hoods or raised cabs for a cabover. The 352H peterbilt was made for engines such as this one in mind. In fact, pretty much all the H series 352's I've seen had KTA Cummins engines. Works for me, 'cause I'm a die hard Cummins fan. But if you change your mind about the 359, extended hoods/tall cabs on cabovers are where that engine goes. If you think the kit is huge, you should see the real thing in person. Not sure what it weighs, but I know it's over 1,100 cubic inches. good luck building it. looking good so far.
Mike Cole Posted December 3, 2006 Posted December 3, 2006 If you want a really unusual home for your KTA, how about a Dodge? More photos of this and another Bighorn here. Bighorns can be had in resin. More photos and seller info here.
Old Albion Posted December 3, 2006 Author Posted December 3, 2006 KW, My estimate for the engine weight is around 2 1/2 to 3 tons, which tells me that trucks fitted with this engine probably have heavy duty front suspensions and axle fitted. Maybe wide steer tyres? Mike, The hood on that Dodge is huge probably enough space for 2 KTA's. Many Thanks Best Wishes Dave Bates.
SpreadAxle Posted December 3, 2006 Posted December 3, 2006 Casey, is that blue pete one that runs around pittsburgh, I've never seen it, but I sure would love an hour or so to drive it. it sure is pretty
SpreadAxle Posted December 3, 2006 Posted December 3, 2006 possibly on some trucks snapper, but I'm not sure if all trucks with that engine have hefty front axles. I do know that you needed extended hoods for it. I've seen trucks with KTA 600's up close, and there isn't much room undre the hood after it's in there.
Old Albion Posted December 10, 2006 Author Posted December 10, 2006 Hello Folks, I have made some progress with the 2 Cummins KTA 600 Diesels. these are starting to take shape. There is still a lot of work to do but I,m getting there. If anyone can help there are a few items of detail I,m struggling with? 1/ The cooling fan and drive belting arrangement. How is it configured? 2/ The starter Motor is it fitted on the left or right hand side? 3/ The engine oil filters are these fitted to the right or left? 4/ Where is the oil dip stick located? The engine looks as if it could be configured for many differant combinations. I suppose that it would depend if it is going to be used for a truck or generator or may be heavy earth moving plant. http://public.fotki.com/oldalbion/cummins-kta-600-die/ Thanks for looking. Best Wishes Dave Bates
Turbo590 Posted December 10, 2006 Posted December 10, 2006 Dave, I "LIKE" it. You are on the right track for detailing. Kurt McLucas
Old Albion Posted December 10, 2006 Author Posted December 10, 2006 Kurt, Many Thanks I do appreciate the comments. Dave Bates
Old Albion Posted December 30, 2006 Author Posted December 30, 2006 Hello Folks, I,ve just received a KTA Cummins Manual that I bought on Ebay. Full of great information complete with the smell of old engine oil. Hopefully over the next week I should be able to finish the engines. Best Wishes Dave Bates
Old Albion Posted January 14, 2007 Author Posted January 14, 2007 Just put the finishing touches to both engines. All I need to do now is find a home for these beasts. A Pete 359 definately and maybe the Kenworth Alaskan Hauler. Thanks for looking. Dave Bates http://public.fotki.com/oldalbion/cummins-kta-600-die/
Harvezter Posted January 19, 2007 Posted January 19, 2007 I believe the Alaskan Hauler is a Peterbilt.. or is there also a Kenworth Alaskan Hauler?
Guest Anthony Oteri Posted January 19, 2007 Posted January 19, 2007 AMT had the Kenworth and Revell of Germany has the Pete.
