72 Charger Posted February 21, 2014 Share Posted February 21, 2014 Does anybody know that make the AMT Lowboy is based on and is it an accurate kit? Quote Link to comment Share on other sites More sharing options...
Jim B Posted February 21, 2014 Share Posted February 21, 2014 It's supposed to be a Loadcraft. Quote Link to comment Share on other sites More sharing options...
ap40rocktruck Posted February 21, 2014 Share Posted February 21, 2014 yes Loadcraft, 35 ton, outside frame. In real life if you were to load a Cat D8H on it, it would break the trailer. The kit is accurate & true to the late 60's - early 70's design. Quote Link to comment Share on other sites More sharing options...
scummy Posted February 21, 2014 Share Posted February 21, 2014 Does anybody remember if they released it as a bogie trailer ? In the 1971 catalog they show it as T-508 a low boy trailer and the picture is a hand drawn bogie job . Quote Link to comment Share on other sites More sharing options...
ap40rocktruck Posted February 21, 2014 Share Posted February 21, 2014 Does anybody remember if they released it as a bogie trailer ? In the 1971 catalog they show it as T-508 a low boy trailer and the picture is a hand drawn bogie job . By bogie, you mean a tandem axle instead of a tri axle. If so, then NO. Quote Link to comment Share on other sites More sharing options...
72 Charger Posted February 21, 2014 Author Share Posted February 21, 2014 yes Loadcraft, 35 ton, outside frame. In real life if you were to load a Cat D8H on it, it would break the trailer. The kit is accurate & true to the late 60's - early 70's design. Thanks Richard very Interesting. So it would be able to take a truck ?. Just removing my D8 as we speak Do you know if they had a Loadcraft decal on the 1/1 Dave Quote Link to comment Share on other sites More sharing options...
Jim B Posted February 21, 2014 Share Posted February 21, 2014 The Loadcraft logo was on the gooseneck. There was one in the original issue of the kit, but the reissues don't have the decal. Check with Jerry over at Model Truckin', I think he has them. Quote Link to comment Share on other sites More sharing options...
72 Charger Posted February 22, 2014 Author Share Posted February 22, 2014 Wow cool thanks James I will check them out . Im guessing but was it down to copyrights that they didnt get decals in reissues Quote Link to comment Share on other sites More sharing options...
Jim B Posted February 22, 2014 Share Posted February 22, 2014 Something like that. I think Loadcraft went out of business & the ownership of the name is in limbo. So, yes, copyrights. Quote Link to comment Share on other sites More sharing options...
ap40rocktruck Posted February 22, 2014 Share Posted February 22, 2014 Thanks Richard very Interesting. So it would be able to take a truck ?. Just removing my D8 as we speak Do you know if they had a Loadcraft decal on the 1/1 Dave Dave, yes on a truck, 35 ton US = 70,000 pounds capacity. The problem is the outside frame, the load would have to be spread evenly both across & length wise on the deck. It is rather easy to cut it up & make a fixed neck drop deck, with moving the beams to the center. so that the run with the same width as the rails over the tri axle suspension. Then make new deck side extensions & it would be able to haul the D8 Quote Link to comment Share on other sites More sharing options...
Aaronw Posted February 22, 2014 Share Posted February 22, 2014 We are talking about this trailer correct? D8H is listed at 47,000 lbs, so there is a fair margin between that and max capacity of 35 tons. I don't know that much about trailers but it looks very similar to the ones like this that I see dozers getting lugged around on. Quote Link to comment Share on other sites More sharing options...
Bgrgbldr Posted February 22, 2014 Share Posted February 22, 2014 (edited) Load King 353 CS.pdfGents, I also heard the AMT was supposed to be a Loadcraft. I have searched dozens of archives and have collected every line drawing I have ever seen and I have never seen a drawing or photo of this trailer list as Loadcraft. Loadcraft is as far as I know still in business in Brady,Texas so yes there would be copyright issues. I have found a drawing of a 35 ton trailer form Load King that is almost identical to the AMT trailer. Notice that the drawing does say narrow neck. The Caterpillar D8H has a listed operating weight of 70,503 lbs technically over limit for a 35 ton capacity trailer. Could it be that someone at AMT lost his notes and got the two companies confused? Edited February 22, 2014 by Bgrgbldr Quote Link to comment Share on other sites More sharing options...
72 Charger Posted February 22, 2014 Author Share Posted February 22, 2014 Thanks guys thats some very helpfull info . It looks like I better start cutting so I can put my D8H back on Quote Link to comment Share on other sites More sharing options...
SpreadAxle Posted April 30, 2016 Share Posted April 30, 2016 The instruction sheet I have lists the capacity as 40 tons. 40 ton capacity in 11 feet of space. Model LS3-40-S by Loadcraft. The kit I have is the 2002 re-issue(red trailer on the box with a construction site photo backdrop). No LoadCraft decals, but Loadcraft is mentioned as the mfg on the instruction sheet. Quote Link to comment Share on other sites More sharing options...
anarximis Posted May 1, 2016 Share Posted May 1, 2016 Load King 353 CS.pdfGents, I also heard the AMT was supposed to be a Loadcraft. I have searched dozens of archives and have collected every line drawing I have ever seen and I have never seen a drawing or photo of this trailer list as Loadcraft. Loadcraft is as far as I know still in business in Brady,Texas so yes there would be copyright issues. I have found a drawing of a 35 ton trailer form Load King that is almost identical to the AMT trailer. Notice that the drawing does say narrow neck. The Caterpillar D8H has a listed operating weight of 70,503 lbs technically over limit for a 35 ton capacity trailer. Could it be that someone at AMT lost his notes and got the two companies confused?were you looking at the newer high track dozers because the only 1/25 scale dozer is modeled after one from somewhere in the 70's Quote Link to comment Share on other sites More sharing options...
dshue76 Posted May 1, 2016 Share Posted May 1, 2016 Most weights listed by Cat are minus attachments. So most weights don't include the blade or rear ripper assembly. But even at that the model of the D8H from AMT should not exceed 70,000. If it had ROPS or a heavier blade it might be close. Quote Link to comment Share on other sites More sharing options...

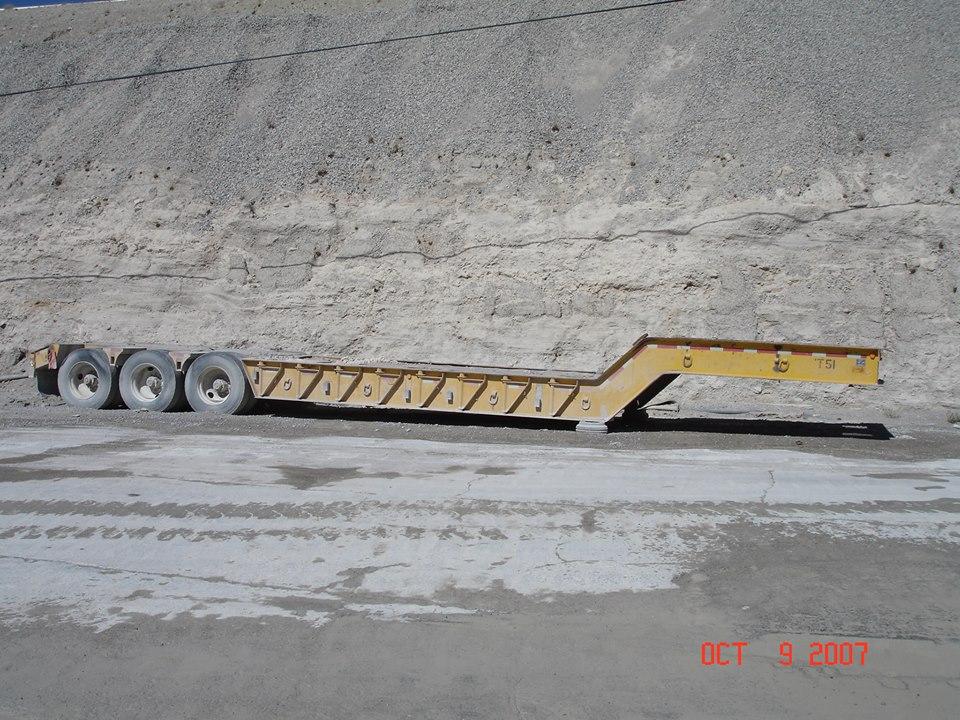

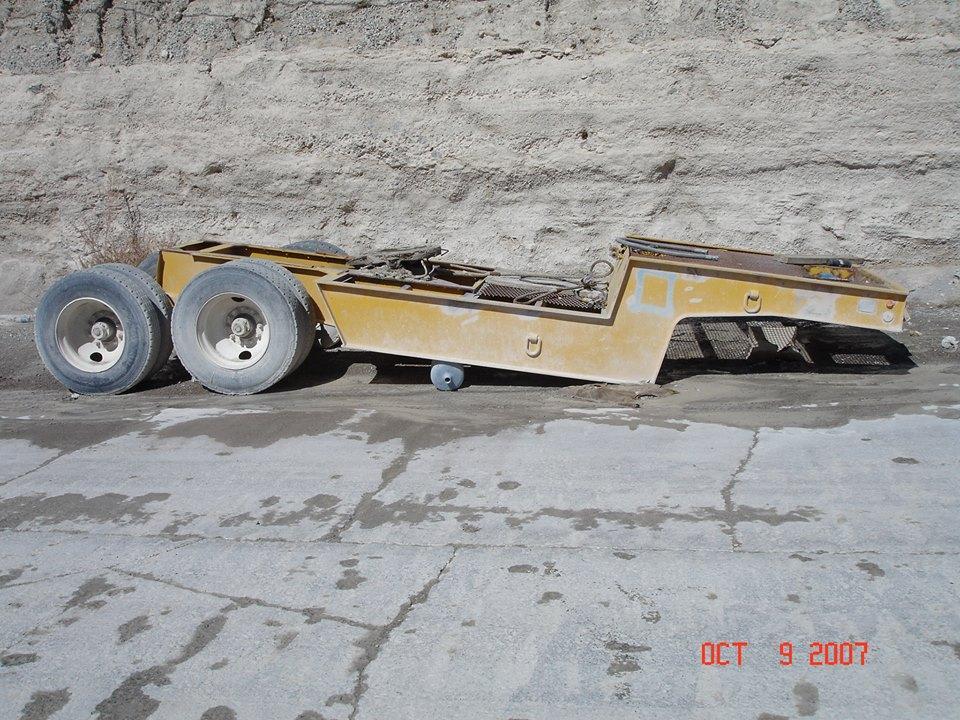

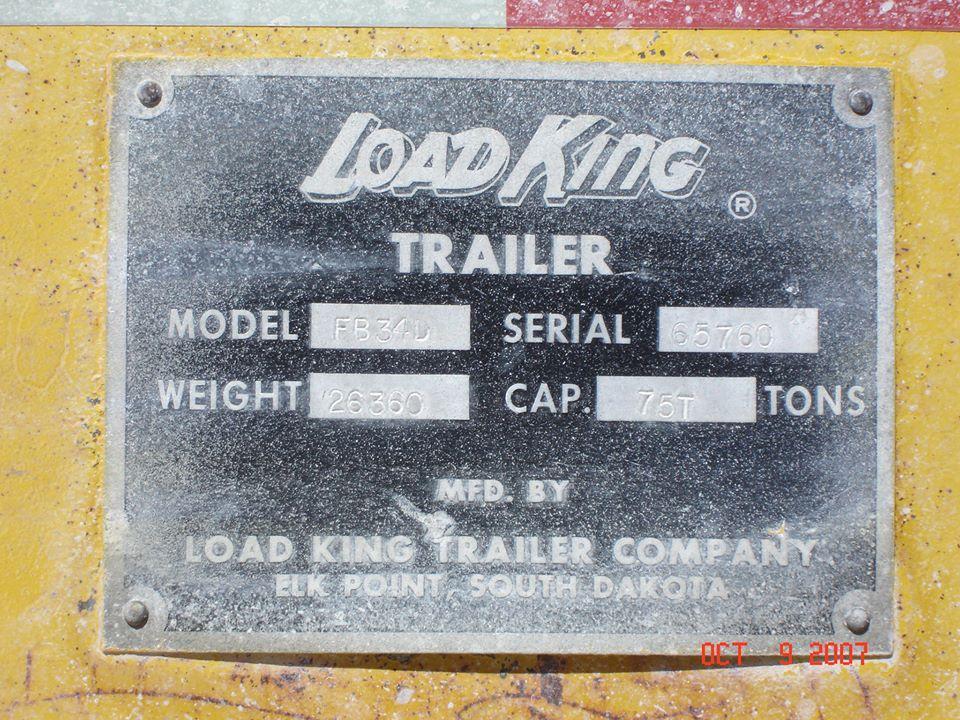

mistermodel Posted May 1, 2016 Share Posted May 1, 2016 found these on the internet trailer,jeep,and tag Quote Link to comment Share on other sites More sharing options...
