Engines for the ZZR Spy car modelled by amt

[rattle can man]

Being a non-GM person, I would think any small block Buick engine (215, 300,340, 350) could be used. 340 was only available 66-67 according to that famous pedia, If you are okay with 3d printed, at least one of the businesses that post in the aftermarket section has one (not sure if I can post which one).

[Casey]

On 1/19/2025 at 12:09 PM, Mark said:

The small V8 with the distributor at the front was based on the V6.

The other way around-- the 225 Buick V6 was based upon the '61-'63 215 design. The Buick 300 is very similar in appearance to the 215, but has a slightly taller deck height to match the longer stroke. The 3D printed 215 mentioned somewhere here would be close enough for most, provided that is what was actually used in the ZZR? There doesn't seem to be a reliable source regarding exactly which engines were used.

I just didn't want anyone seeking out an original engine(s) and being disappointed once they see it in the flesh-- it's pretty bad.

[Casey]

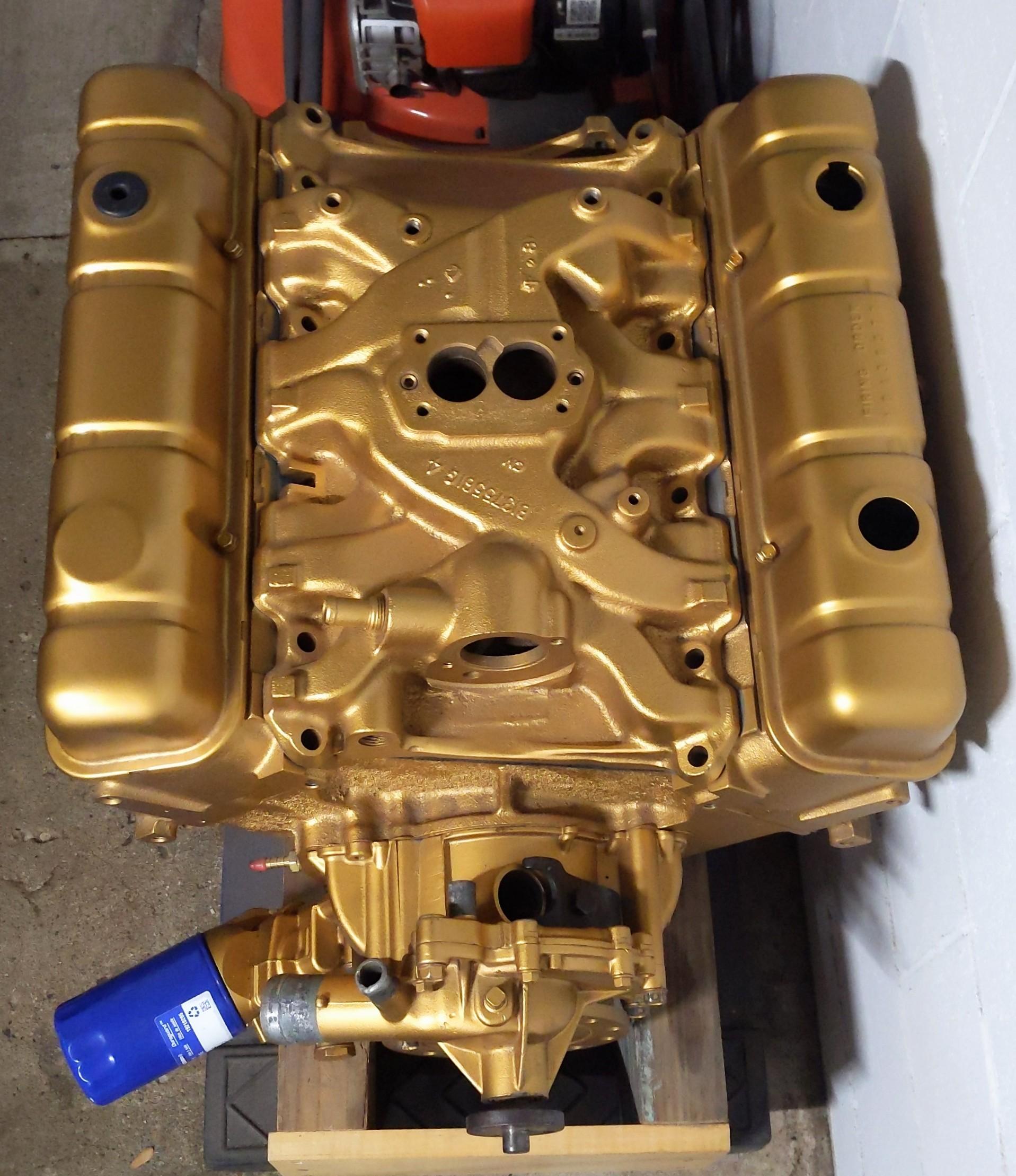

Here are some pics of a Buick 300 V8 for reference. Note the Nailhead-like appearance due to the top angle if the valve covers, and as @Mark mentioned, the front mounted distributor-- the biggest tell that this is a small block Buick:





Edited January 22 by Casey
